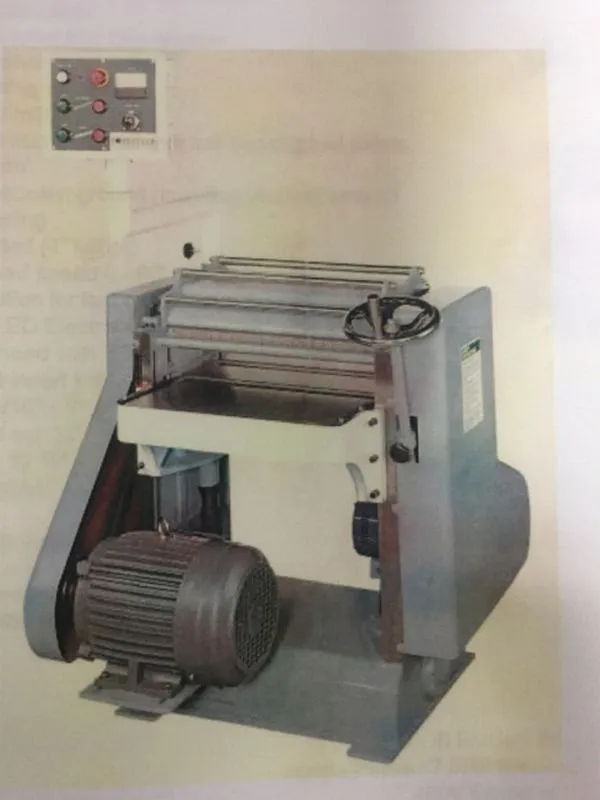

Northtech NT 20-10HCVS-1032 Single Surface Planer (w/ Helical Cutter Head)

This Northtech NT 20-10HCVS series single-surface planer opens wide to accept material up to 8″ (H) by 20″ (W). A 10 HP motor drives the 3″ helical cutter head with six (6) rows of inserts. The cutter head is dynamically balanced to ensure a quieter operation and smoother cuts. An efficient 1 HP motor provides steady feed rates from 0 to 70 FPM, precisely controlled through a variable frequency drive. Pressure shoes and powered rollers securely move the material through the machine along the highly-polished bed with ball-bearing rollers.

 Cutterhead Motor:  10HP, 3PH 230V
Solid cast iron construction
20 Segmented infeed rollers and chip breakers
10HP cutter head drive
Heavy-duty jack lifting screws
Solid steel outfeed roller
High polished cast iron feed bed with ball bearing bed rollers
All gear feed system
All surfaces are precision ground providing years of smooth  and accurate surfacing
Dust hood is included (4″ outlet)
DC/VS Variable feed speed 0 – 70′ min
Manual table elevation for fast and convenient thickness  setting, with M-10 LED Electronic Readout for Table Height
3″ diameter cutter head with 3 ¼” cutting circle; 6,850RPM
15x15x2.5 straight insert knives; 6 rows (120 total knives)
Stock thickness: 3/16″ – 8″
Maximum depth of cut: ¼” Table size is 21″ x 27 ¼”
Gross weight: 1,140 lbs.
One year parts warranty
Includes operator’s manual and parts book.
All machines are tested stateside prior to shipment providing trouble-free start-up.
Top Head Hp. = 10 Hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 25 Amps
Feed Hp. = 1 Hp.
Feed System = Segmented Roller / Power Rolle
Drive System = Belt
Feed Speed = 0 – 70 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1 Hp.
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = (2) Post Jack Screw
Total Hp. = 11 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 230 Volt
Operator Panel = Adjustable Operator Panel
Min. Length = 9”
Min. Width = 1″
Max. Width = 20”
Min. Thickness = 3/16″
Max. Thickness = 8”
Cutter Head RPM = 6850 RPM
Tooling = 15 x 15 x 2.5 mm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 3” x 20”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 120 Inserts
Insert Size = 15 x 15 x 2.5 mm
Dust Collection = 436 CFM @ Extraction Point
Dust Port Out = 4” Top
Powered Rollers = 2 Top Powered Rollers
Idle Rollers = (2) Idle Bed Rollers
Pressure Shoes = 20” Spring Loaded Pressure
Frame Const. = 1/4” Steel Construction
Decible Rating = 77 dB
Net Weight = 1060 Lbs.
Gross Weight = 1140 Lbs.
Machine Dims. = 33” x 41” x 57-1/2”
Packaging Dims = 32” x 48” x 45”
