Northtech NT 20-LMC Single-Sided Planer (w/ Helical Cutter Head) Less Motors and Controls

Do you require more customized power and control? Are you looking to replace an existing machine but want to keep the electronics? This “bare-bones” planer from Northtech provides an excellent starting point for your unique machine build. Includes a 3” (D) x 20” (L) dynamically-balanced helical insert cutter head for quiet operation and smooth cuts of material up to 20″ wide. The manual wheel height adjustment opens up to a maximum thickness of 8″. You also get the same sturdy steel construction of other Northtech planers with three (3) segmented feed rollers and a dust collection port.

Feed System = Segmented Roller / Power Roller

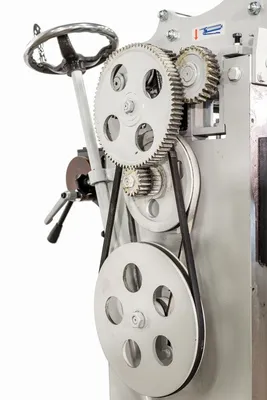

Drive System = Belt

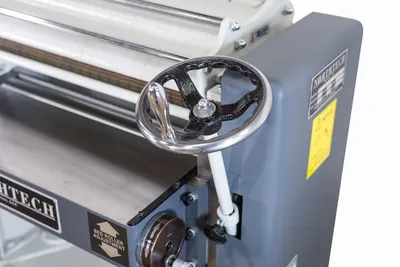

Elevation Style = Manual Wheel Adjustment
Elevation Sys. = (2) Post Jack Screw
Min. Length = 9”
Min. Width = 1″
Max. Width = 20”
Min. Thickness = 3/16″
Max. Thickness = 8”

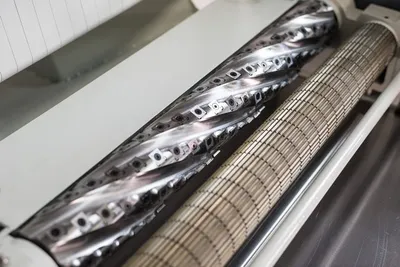

Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 3” x 20”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 120 Inserts
Insert Size = 15 x 15 x 2.5 mm
Dust Collection = 436 CFM @ Extraction Point
Powered Rollers = (3) Top Powered Rollers
Idle Rollers = (2) Idle Bed Rollers
Pressure Shoes = 20” Spring Loaded Pressure
Frame Const. = 1/4” Steel Construction
Packaging Dims = 39” x 39” x 44”
