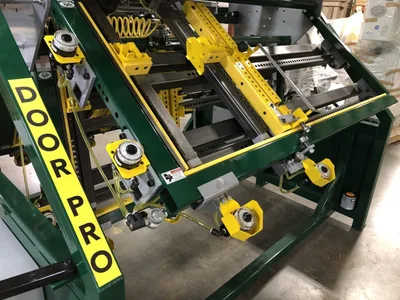

Taylor #713A-M – Miter Door Pros

(5) Section Machine: 250+ Miter Cabinet Doors per day
(8) Section Machine: 400+ Miter Cabinet Doors per day
Features:
Standard Machine Models
(5) Rotating Sections (Small to Medium Shops)
(8) Rotating Sections (Medium to Large Shops)
Section Capacities:
Standard Machine = 26″ x 62″ Maximum Clamping Capacity
Large Capacity Machine = 38″ x 96″ Maximum Clamping Capacity
Innovative Dial Regulator System for Miter Doors
Operators can Dial in Desired Clamping Pressure to Precisely and Accurately Square any Type of Miter Door
Each Clamp can Dial Pressure IN or OUT to Make Fine Adjustments in Each and Every Corner
Heavy Duty Diaphragm Cylinders Provide up to 1500 lbs of Clamping per Clamp
Door Pro Frame is made of 100% Steel Construction
Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety
Single Button Control Box Activates Rotation and Includes Auto Index Feature
Precisely Square and Clamp Stile & Rail Doors Too!!
Includes a (1) Year Manufacturers Warranty

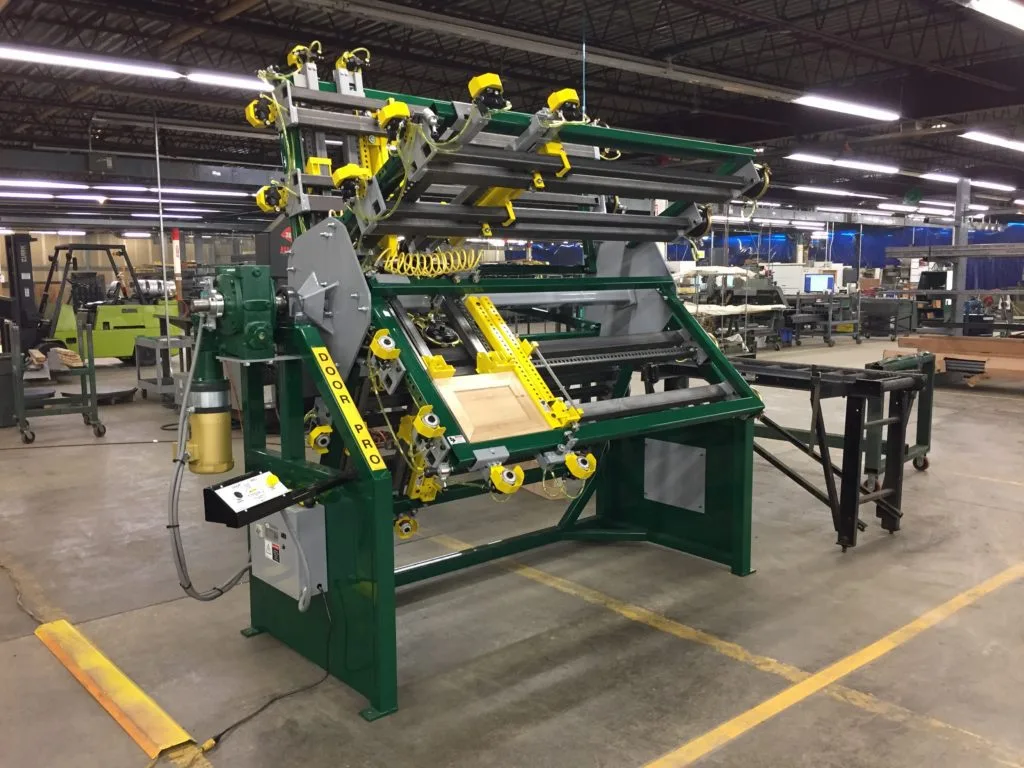

The Taylor Door Pro was a natural progression from the JLT Single Door Clamp. We have installed hundreds of machines in shops across North America. Machines come in (5) and (8) station models and some customers order an (8) station frame with (4) stations installed. This provides for easy expansion in the future.

(Additional Details and Info Below)

26″ x 62″ Maximum capacity.
Minimum 9″ Clamping Capacity.
Includes (2) Vertical Clamps & (2) Horizontal Clamps.
Each clamp includes the JLT Dial Control System for fine adjustments, which is simple and easy to use.
This innovative Dial Control System allows for adjustments in BOTH directions while the door is under clamping pressure

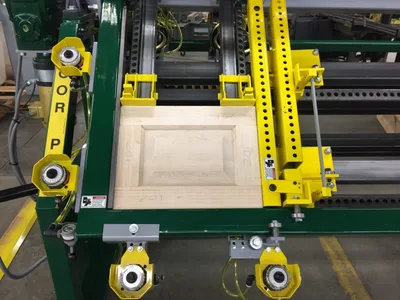

Precise and Accurate Squaring for both Miter and Stile & Rail Cabinet Doors
Precisely Clamp and Square MDF or HDF Doors too!!
Easy to use, Single Lever Operation.
Fast Changeovers
15 Degree Working Angle

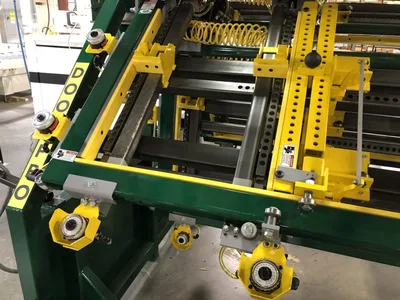

The draw bar is no longer in the center of the clamps but moved to the outside of the clamps. This design shifts the clamping pressure to the center of the glue joint this eliminating bowed stiles and increasing door quality

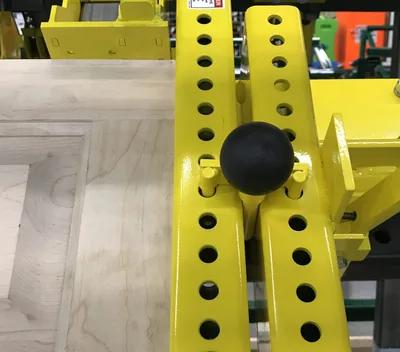

The Trident Pin is repositioned for different door sizes. This pin locates the side pressure to the center of the door every time, thus increasing door quality. It also increases machine productivity because it is no longer necessary to move the cross clamps to different locations. This is a Taylor 1st and not available on other brands
Cylinders Located in the back of the machine to Provide Operator with Additional Working Space
The moveable clamping bar is now supported with wheels in 3 locations rather than 2. Changing sizes is faster and easier than earlier models
Redesigned Jaws with Thumb Plate for Increased Efficiency.
Thicker Push Bars Decrease Daily Wear and Tear.
