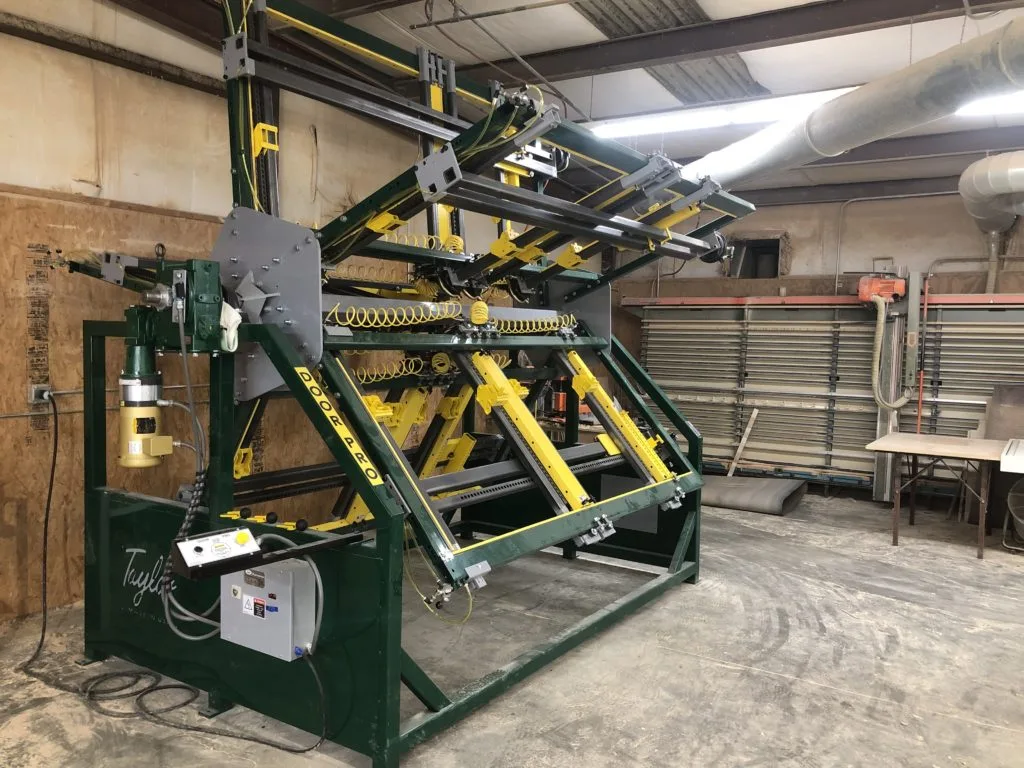

Taylor #713A-LCS – Large Capacity Door Pros

Heavy Duty Large Capacity Machine for the Medium and Large Shops
PRODUCE High volumes of Small and Large Doors in our Largest and most Versatile Model
Features:
Standard Machine Models
(5) Section Model
(8) Section Model
Each Section has a 38″ x 96″ Maximum Clamping Capacity
Each Section Includes (4) Vertical Clamps and (2) Horizontal Clamps
Single Lever Valve Air Activation
Clamp & Square Multiple Cabinet Doors with Vertical Center Rail
(2) 36″ x 46″ Doors Side by Side Double Door Clamping.
38″ x 96″ Doors with the Center Rail Removed
Heavy Duty Diaphragm Cylinders Provide up to 1500 lbs of Clamping per Clamp
Door Pro Frame is made of 100% Steel Construction

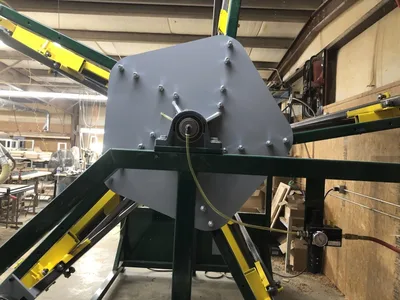

Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety
Single Button Control Box Activates Rotation and Includes Auto Index Feature
Precisely Square and Clamp Stile & Rail Doors
Includes a (1) Year Manufacturers Warranty
The Taylor Door Pro was a natural progression from the JLT Single Door Clamp. We have installed hundreds of machines in shops across North America. Machines come in (5) and (8) station models and some customers order an (8) station frame with (4) stations installed. This provides for easy expansion in the future.

(Additional Details & Info Below)

Large Capacity and Versatile for a Wide Variety of Stile and Rail Cabinet Door Sizes.
38″ x 97″ Overall Capacity
Includes (4) Vertical Clamps and (1) Horizontal Clamp (30 Sq. In Cylinder on the Horizontal Clamp)
(2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors
Single Lever Valve Air Activation
Faster Changeover with the Cross Clamps Adjusting in a Single Motion
Clamp & Square Multiple Cabinet Doors with Vertical Center Rail – (2) 38″ x 46″ Doors Side by Side Double Door Clamping.
100% Heavy Duty Steel Construction.
Convenient 60 Degree Vertical Working Angle.
The draw bar is no longer in the center of the clamps but moved to the outside of the clamps. This design shifts the clamping pressure to the center of the glue joint this eliminating bowed stiles and increasing door quality

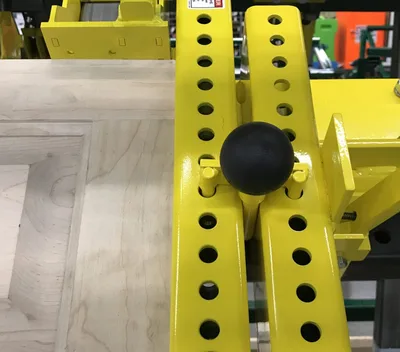

The Trident Pin is repositioned for different door sizes. This pin locates the side pressure to the center of the door every time, thus increasing door quality. It also increases machine productivity because it is no longer necessary to move the cross clamps to different locations. This is a Taylor 1st and not available on other brands
Cylinders Located in the back of the machine to Provide Operator with Additional Working Space

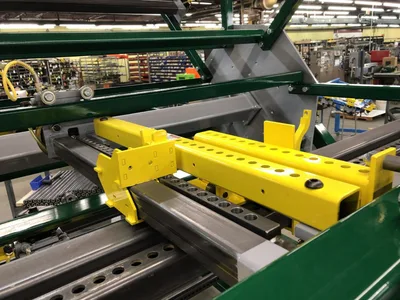

The moveable clamping bar is now supported with wheels in 3 locations rather than 2. Changing sizes is faster and easier than earlier models
Redesigned Jaws with Thumb Plate for Increased Efficiency.
Thicker Push Bars Decrease Daily Wear and Tear
