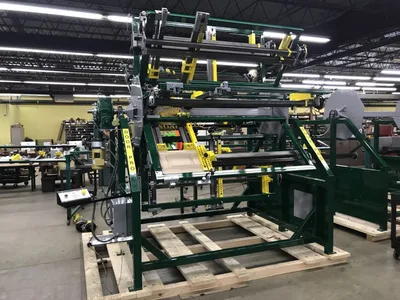

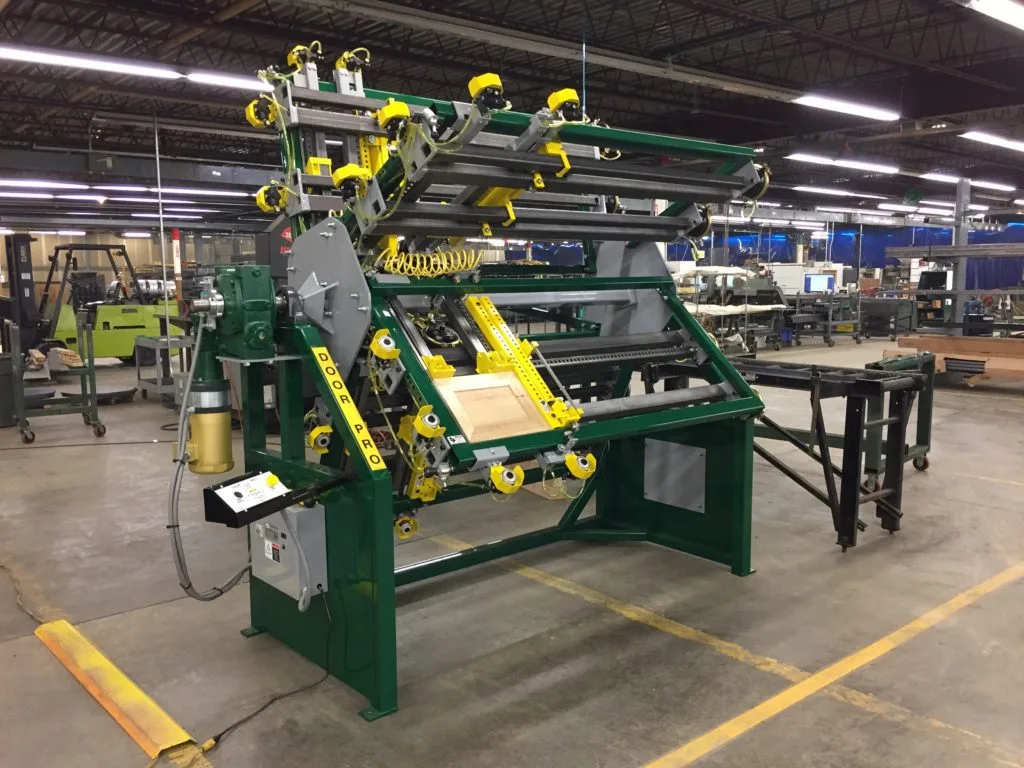

Taylor #713A- Stile & Rail Door Pros

(5) Section Machine: 250+ Stile & Rail Cabinet Doors per day
(8) Section Machine: 400+ Stile & Rail Cabinet Doors per day
Features:
(2) Standard Machine Models
(5) Rotating Sections (Small to Medium Shops)
(8) Rotating Sections (Medium to Large Shops)
26″ x 62″ Maximum Clamping Capacity
Guaranteed Precise and Accurate Squaring
All Pneumatic Clamps are Designed for Quick and Easy Changeovers, Increasing your Productivity
Clamp Doors Face Up to Increase Quality
Eliminate the pinning process with multiple sections on the Machine
Door Pro Frame is made of 100% Steel Construction
Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety

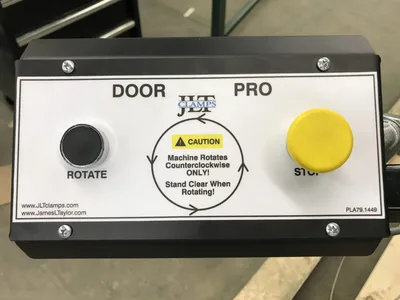

Single Button Control Box Activates Rotation and Includes Auto Index Feature
Includes a (1) Year Manufacturers Warranty
The Taylor Door Pro was a natural progression from the JLT Single Door Clamp. We have installed hundreds of machines in shops across North America. Machines come in (5) and (8) station models and some customers order an (8) station frame with (4) stations installed. This provides for easy expansion in the future.

(Additional Info & Details Below)

26″ x 62″ Maximum capacity.
Minimum 9″ Clamping Capacity
(2) Second Squaring of Stile and Rail Cabinet Doors.
Precise and Accurate Squaring Guaranteed
MDF and HDF Door Models Available!!

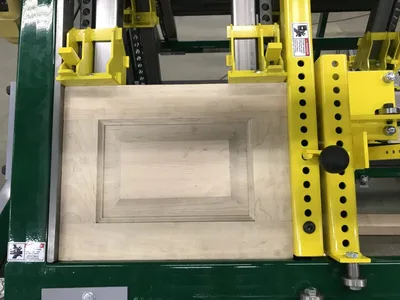

Includes (2) Vertical Clamps & (1) Horizontal Clamp.
Easy to use, Single Lever Operation.
Fast Changeovers
15 Degree Working Angle
Clamping force centered on your stiles and rails — where you need it most.

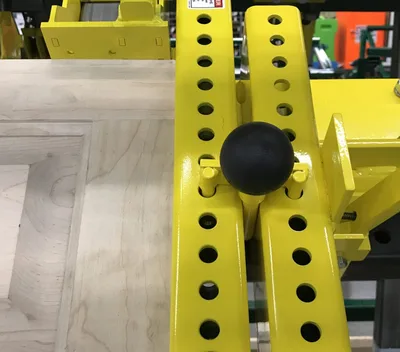

Intuitive Pin System allows even Quicker and Easier setup than ever before.
Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.
Redesigned Jaws with Thumb Plate for Increased Efficiency.
Thicker Push Bars Decrease Daily Wear and Tear.
