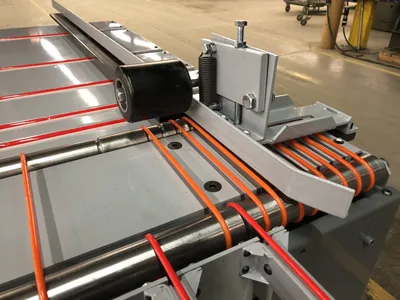

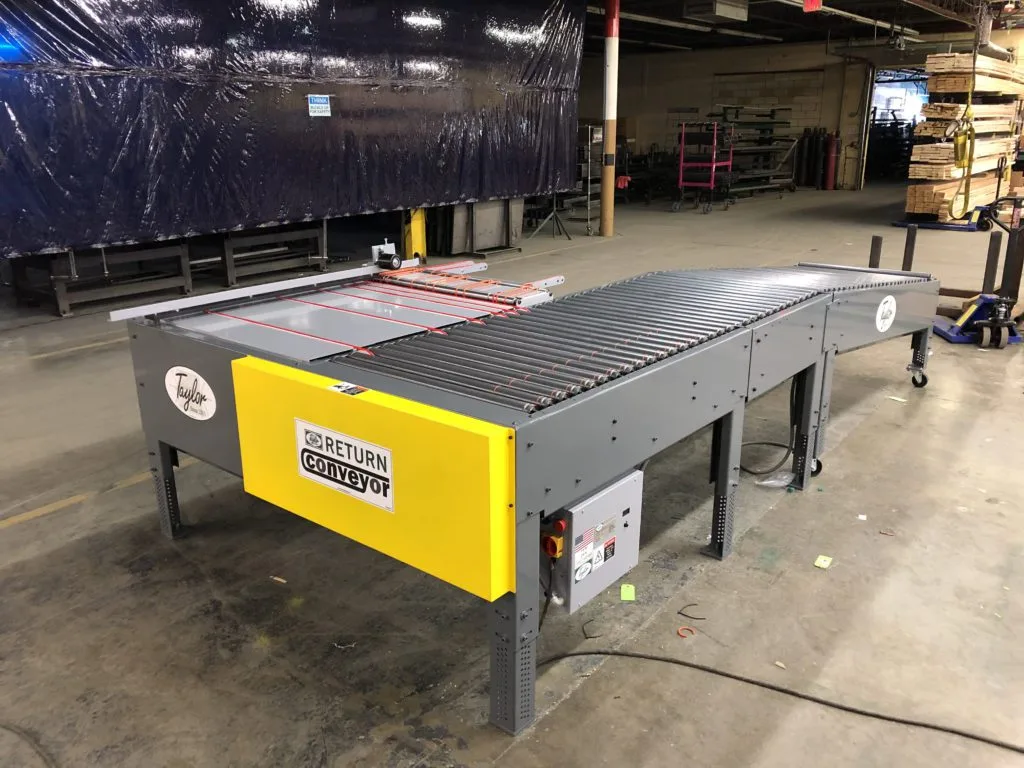

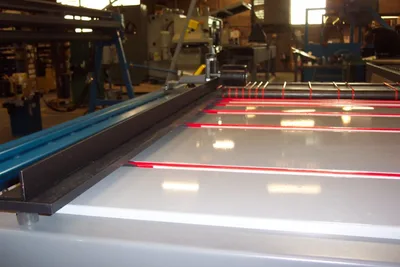

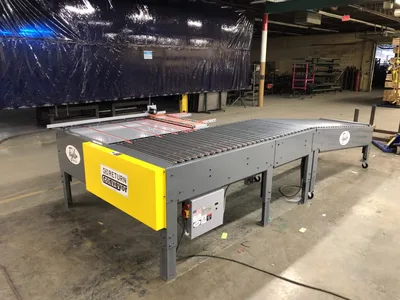

Customize a Return Conveyor to fit your Shaper Sander
and Door Department
Features:
(4) machine lengths return material up to 60″, 96″, 112″ long, or 132″ Long
Heavy duty frame and component construction for long life(Heavier than the competition)
Fixed Catch Area
24″ or 36″ Rollers on return conveyors can handle up to 36″ or 50″ wide material.
Optional 48″ Catch Rollers
Minimum material size 1″ x 6″
Roller Spacing 3″ center to center

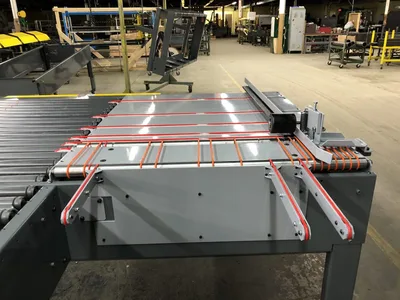

All rollers are powered and individually clutched for long belt life.
Any Length Return (in one foot increments, measured from tail end of shaper/sander) composed of modular sections.
Return is 2 1/2″ lower than receiving conveyor, allowing for over/under return.
Variable Speed AC drive matches conveyor feed rate to edge bander feed rate.

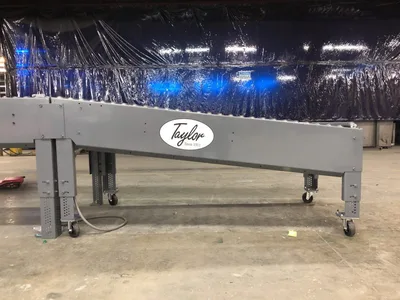

Adjustable Height to match pass line height of the Shaper Sander
Compatible with many brands of Shaper Sander

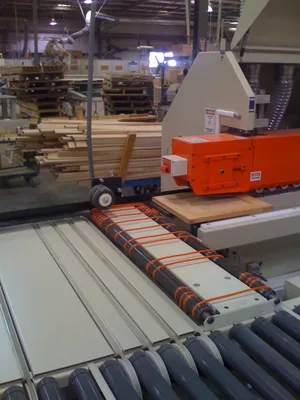

Return Conveyors on a Shaper Sander have a fast payback. Most doors or panels need at least 2 passes, if not 4, through the machine to be fully machined. This normally would require (2) Operators, one to feed, and one to catch. With a Taylor Return, productivity is increased by 100% or more because it makes a (2) operator job into a (1) operator job.
