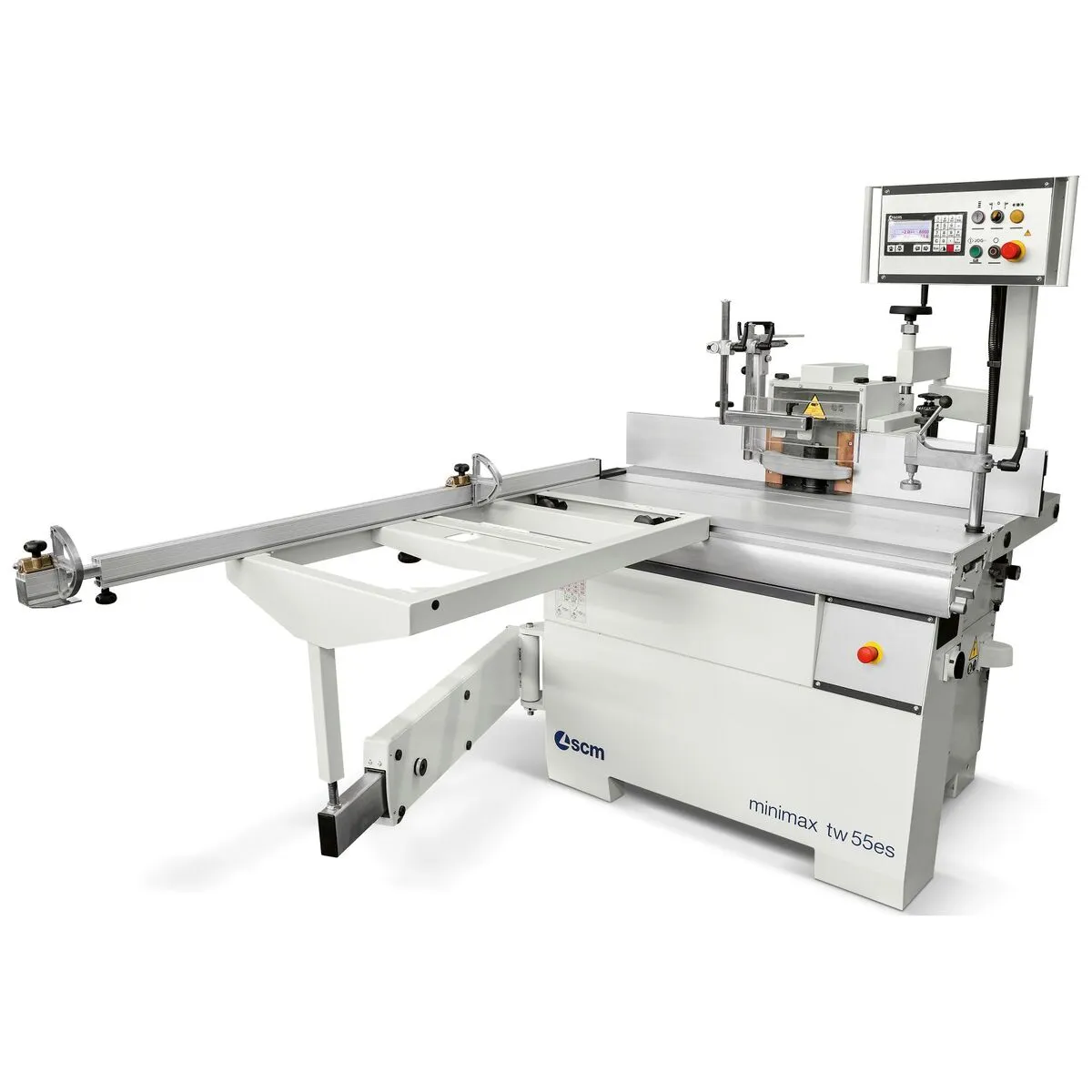

SCM minimax tw 55es Shaper with tiltable spindle – ready 3 UP

This is a NEW offering by SCM. We don’t know of any shaper with these capabilities at this price point yet alone one made by SCM.
The minimax tw 55es is the customizable and flexible shaper perfect for the demanding craftsmen and carpentries.
Maximum stability and rigidity in all working conditions is guaranteed thanks to a large shaper column made entirely of cast iron.
The sliding table provides exceptional precision and smoothness.
Advertised Price Configuration:
3ph, 8HP, Tilting 1 1/4” spindle, sliding table, fence w/ mechanical adjustments, READY 3UP control (3NC axes)

Extruded anodized aluminium sliding table (dimensions 1200 x 360 mm) sliding on high precision hardened steel guideways, which are fixed by means of mechanical bending system
Spindle moulder reverse rotation
Ready 3 UP control: the programming of the work becomes simple and effective with the electronic mobile control panel with a 4” LCD color screen. Working mode: manual, semi-automatic and automatic with a memory capacity of up to 99 programs
Electric pre-setting for feeder (see electrical requirements)
Device for angular cutting with 2 flip-over stops
Qty. 1 1 ¼” spindle
Shaper push handle
Spare belts
Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
10.19.96 USA safety regulations version
R0.21.88 minimax tw 55es Usa/Canada version
Shaper with sliding table and fixed or tilting spindle with devices in conformity with USA-Canada safety regulations and complete with:
self-braking motor
self-braking motor
93.07.51 220 volt
93.12.15 Frequency 60 hz
55.52.00 READY 3 UP version complete with:
upper mobile control panel
“Flex One” spindle moulder fence:
automatic movement of the entire fence with respect to the tool diameter
manual adjustment of the infeed table, by means of handwheel (w/ mechanical readout)
rapid exclusion system from the work table
aluminium tables with connecting bars
240 mm max. tool diameter
automatic movement of the entire fence with respect to the tool diameter
manual adjustment of the infeed table, by means of handwheel (w/ mechanical readout)
rapid exclusion system from the work table
aluminium tables with connecting bars
240 mm max. tool diameter
58.02.26 Tiltable spindle moulder 90° ÷ 45°
equipped with fixed handwheel with gravitational numerical readout of spindle moulder tilting
13.13.25 Spindle moulder shaft of 1 1/4″
21.13.19 Locking by countersunk socket screw
08.69.13 Seaworthy packing for “READY 3 UP” version
10.99.91 Machine language: ENGLISH
