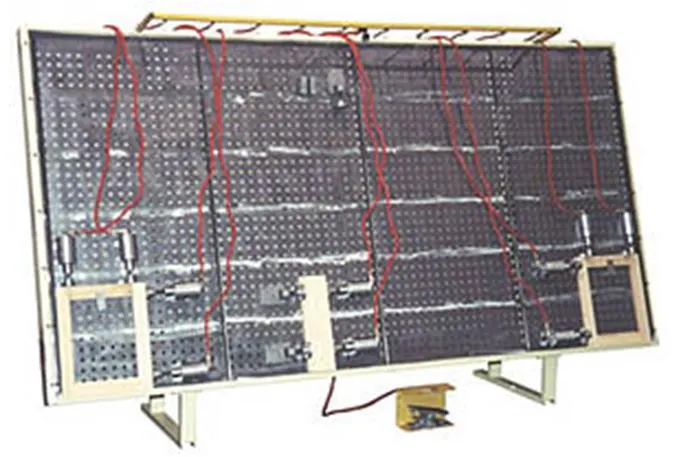

Ritter R300V 6’x12′ Door Clamping Easel

6’ x 12’ Assembly Easel
(10) Clamp Cylinders
Cylinder Manifold
Foot Treadle
(4) Material Hold Down Dogs
(3) Adjustable Material Positioning Stops
Crated weight: 1,643 lbs. Designed and Manufactured in the USA

Additional options for this machine include:
U300E05 – Additional Clamp Cylinder

This heavy duty cabinet door clamping table makes the job of assembling square door frames easier and more efficient. The operator is freed from the task of managing individual bar or pipe clamps, and instead, uses pneumatic clamp cylinders to apply pressure to the glue line. The material positioning stops act as a portable backstop for setting up custom glue-ups. Each cylinder is easily operated by a slide toggle, and the entire system is activated by a foot pedal.
This 6′ x 12′ clamping system can be manufactured in a horizontal table as well, and with additional clamping cylinders. If you prefer a custom size, just let us know.
