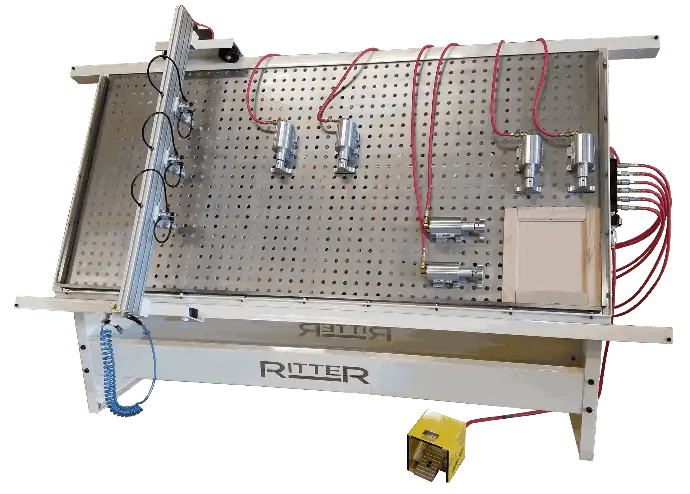

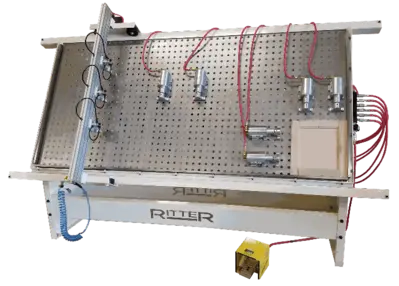

Ritter R475EA Framemaster 3’X6′ Face Frame & Door Assembly Easel (2 in One)

The Ritter R475E/A 3”x6′ Assembly Table is a combination table for both the assembly of 5-piece doors and the assembly of wooden cabinet face frames. This heavy-duty table ensures a flat surface, with squaring corners, and a set of pneumatic clamps to secure the components during assembly. Used in conjunction with a pocket hole cutter, such as the R200T, or the R220T, to create the face frame screw pocket.
This is one of our most popular Ritter machines!

3’x6′ Assembly Table
30° Vertical Easel
Hold Down Beam with (3) Adjustable Hold Down Cylinders
1-5/16″ Clearance Under Vertical Cylinders
1-5/16″ Clearance Under Vertical Cylinders
Squaring Bars on the Left, Right, and Bottom Sides
(4) Universal Clamping Cylinders & Manifold
706.8 LBS of force at 100 PSI
706.8 LBS of force at 100 PSI
2″ Cylinder Position Grid Pattern
3″ Bore Clamp Cylinder Housing
Heavy Duty Steel Frame
Perforated Steel Table
6 port Manifold with 1/4″ NPT Regulator/Gage
Adjustable pressure from 20 to 130 PSI
Foot Treadle
Heavy Duty Steel Frame
(1) Coilhose for Pneumatic Screw Gun
Screw Gun Not Included
Usable Table Area: 33.5″ x 71″
Work Height: 33.25″
Footprint: 91″ L x 47″ D x 67″ H
Electrical: N/A
Air: 100 PSI
R475A – Face Frame Assembly Clamp Arm (*Save 25% w/ purchase of a new Ritter machine!)
U300E05 – Additional AC-20 Universal Clamp Cylinder
U37515 – Additional Manifold Assembly
U300E16 – Additional Foot Treadle Assembly
