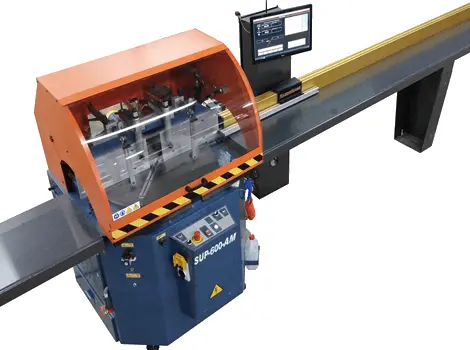

Looking for a saw that cuts angles? The RazorGage AngleMaster is a semi-automatic miter saw fence system that automatically adjusts to cut your leading and trailing angle. The AngleMaster angle saw software with integrated AutoList combines with the computerized miter saw hardware to enable effortless, accurate angle cutting.
Windows Tower PC operation on a large, color touch-screen monitor
Download cutlists directly to the RazorGage AngleMaster computer via Wi-Fi or wired Ethernet cable
Store thousands of cutlists on the computerized miter saw software. Optimize and sort cutlists into thousands of groups according to various criteria
Label printer option available
AngleMaster Angle Saw System comes with a PVC tabletop, but optional steel or PVC rollers are available
Optional articulated pusher mounted gripper
Blade mist lubrication standard for cutting aluminum
Accurate angles from 22º to 160º
5.5 HP 3000 rpm 230 or 460Vac 3ɸ (Must Specify)
Stock Capacities up to 56 feet.
Push Force: 200 lb at 10 inches per second.
Max Speed: 40 inches per second.
Dust Collection: 2 x 4” Diameter Port; 600 CFM
Compressed Air Required: 80~120 psi; 5 CFM
Blade: 600mm Diameter x 132 Tooth; 50mm arbor
Coolant Tank W/Mist Lubrication & 1 Gal Coolant
Blade Wrench
Air Hose
2 Horizontal & 2 Vertical Pneumatic Clamps
Adjustable Feed Rate on Saw Head
Dual Palm Buttons
Blade Door Interlock and Hood Interlock Switches
7” Round Tube at 90°
6” Round Tube at 45°
4” Round Solid at 90°
4.75” Round Solid at 45°
6” Square Tube at 90°
4.75” Square Tube at 45°
11.75” x 5” Rectangular Tube at 90°
5.75” x 4.75” at 45°
