Optimizing Saw System

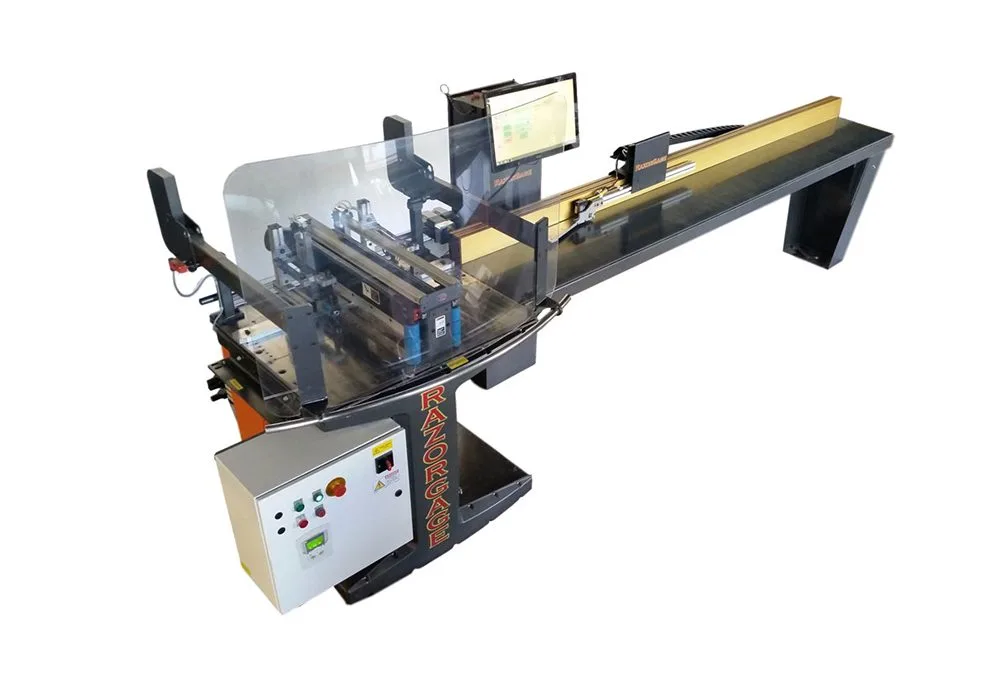

The RazorGage RazorOptimal is a programmable optimizing saw system designed to make your manufacturing process faster, more accurate, and more efficient. This powerful automated industrial saw system is customizable and full of options that will revolutionize your cutting process. Combining the precision RazorGage ST Automatic Saw Measuring System with their powerful Cyclone 600 Upcut Saw, RazorGage created a highly accurate optimizing saw system at a great price point.
The RazorOptimal features specialized automated defect detection technology, enabling operators to quickly avoid wood defects, such as splits and knots, without wasting quality material.
Windows Tower PC operation on a large, color touch-screen monitor

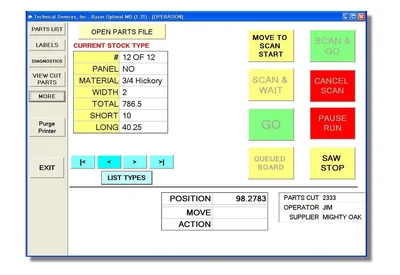

Easy to use software with room to store thousands of cutlists
Optimize and sort cutlists into thousands of groups according to multiple criteria. Our software offers endless options and can accommodate your needs to successfully run your operation.

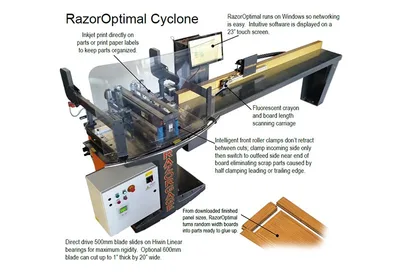

Optimized material defect detection maximizes usable material between crayon marked defects
Automatic top, left, and right intelligent clamping
Direct drive 500mm blade slides on Hiwin Linear bearings for maximum rigidity
* Optional 600mm blade can cut up to 1” thick by 20” wide

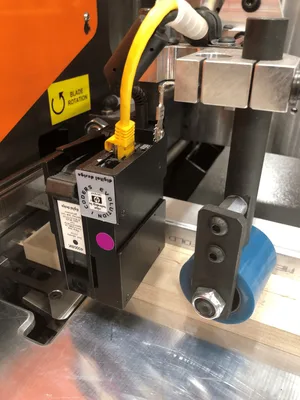

Optional paper label printing or printing directly on the material
* Print in decimal or fraction format
Part length accuracy varies with application, but +/-.005″ is possible
Optional RazArray sorting light grid can be added to further improve operational efficiencies and reduce mistakes
Motor: 7.5 HP
Power Requirement – 120 VAC at 10A
Cyclone Saw: 230 VAC 3φ 30A OR 460 VAC 3φ 20A
Part Accuracy+/- 0.008” or better
Up to 200 lbs Push Force
22” Touch Screen
Network Port AND Wi-Fi
USB Ports
Two 4” Dust Ports min 1200 CFM
60 psi min compressed air pressure
Minimum Defect Scanning Width: 1.5”
Max Capacity: 1” x 20”
