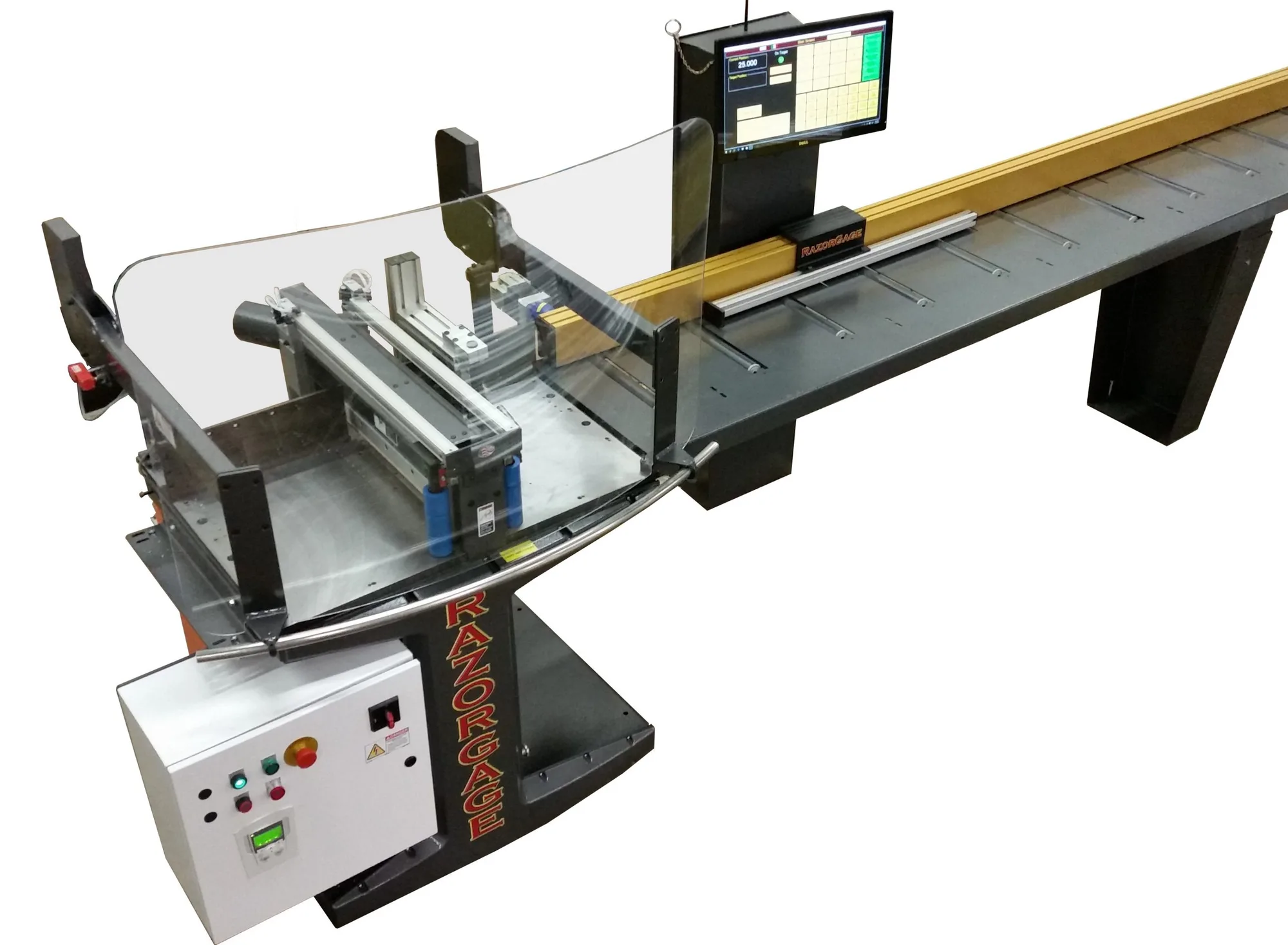

The RazorGage APS Automatic Optimizing Upcut Saw System is built around the powerful and highly accurate Razorgage ST Automatic Measuring System and the durable, clean-cutting Cyclone Upcut Saw
Download cutlists directly to the RazorGage APS auto-feed saw computer via Ethernet, USB drive, or Wi-Fi
Optimize cutlists at the machine or run pre-optimized lists from your design software
Limitless options for sorting upcut saw cutlists groups of like material, color, job, and more — right at the machine
Part length accuracy varies with application but +/-.005″ is possible
Push 200 lb at 10″/sec or lighter loads at up to 55”/sec
Print paper labels or inkjet print directly on the parts using ink that is easy to sand off
Auto saw table surface options include solid PVC, PVC rollers, or steel rollers

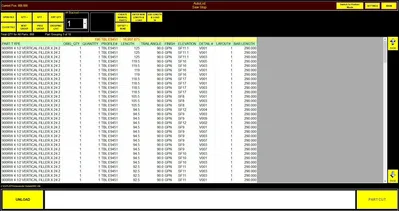

Windows Tower PC operation on a large, user-friendly, full-color touch-screen monitor
Optional articulated pusher mounted gripper
Saw Motor: 7.5 hp (TEFC) available in 208-230-460Vac 3φ
Power Requirement: 10 Amps 120 VAC plus one of the following:
230 VAC, 3φ, 30 Amps
460 VAC, 3φ, 20 Amps
230 VAC, 3φ, 30 Amps
460 VAC, 3φ, 20 Amps
Dust Collection Ports: Two 4″ diameter (102 mm) requiring 600 cfm (17 m3) minimum for dry light materials. Other material may need higher velocity/pressure
Compressed Air: Requires 80 psi (5.5 bar) at 5 cfm (0.14 m3) air filtered to 2.5 microns (oil and moisture free). Use industrial air dryer, rated for cfm (CM) flow. No lubrication required for air components. Air must be lubricant-free.
Motor RPM: Variable from 2200 to 3450
Arbor: 1.000 inch
500 mm Blade for Wood: 500mm x 120T x 1” Bore x 23°ATB/5°ASF x Plate .128 x Kerf .172
500mm Blade for Aluminum: O/D 500mm or 19.68” x Kerf 3.5mm or .137” x Plate 3.0mm or .118” x Bore 25.4mm or 1.00” x Teeth 140 D Type Tip Grade Sash Pro X Expansion Slots Five.
24″ Blade for Wood: 24″ Dia. x 144T x 1″ Bore x 23°ATB/5°ASF x Hook 22° Plate.138 x Kerf.186
24″ Blade for Aluminum: 24″ Dia. x 200 Teeth x 1″ Bore x TCG x Hook 6° Plate.138 x Kerf.174
Push Force: 200 lb at 10 inches per second
Maximum Push Speed: 50 Inches per Second
Stock Length Capacity: Up to 60 feet
InkJet Printer
Label Printer & Stand
Basic or Gang Stop Extension
Standard or Heavy Duty Gripper
Rolling Pin Canted Roller
Tables — Heavy Gauge, Powder Coated Steel
34.5” to 44.5” in height (adjustable)
Surfaces — 1/4” Solid PVC, PVC Rollers, Steel Rollers
