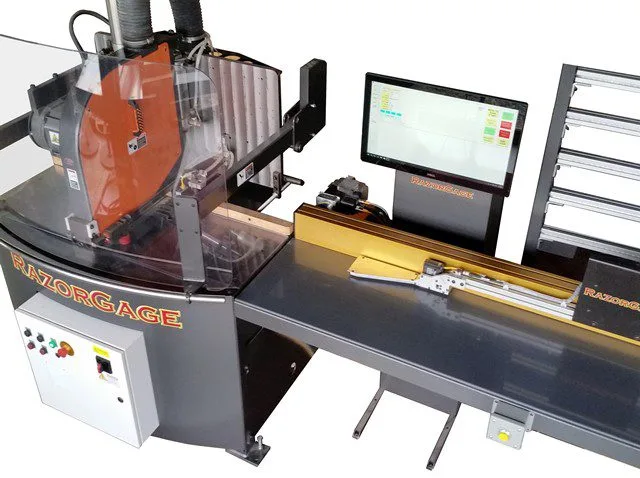

Optimizing Saw System With Pocket Hole Boring And Face Frame Scribing
Defect, optimize, cut to length, drill pocket holes, scribe face frame layout marks, and inkjet print labels directly on the part, on one machine, at a rate that exceeds ONE HOUSE PER HOUR.
With the RazorOptimal Pocket Hole saw, face frame parts come off the machine ready for assembly.
The RazorOptimal programmable saw system with pocket hole machine option is customizable and capable of transforming your cutting operation. Combining the precision RazorGage ST Automatic Saw Measuring System with their powerful pocket-drilling down-cut saw, RazorGage created a highly accurate optimizing saw system to streamline your processes unlike any other pocket hole drill machine on the market.
The RazorOptimal Pocket Hole cutter features specialized defect detection technology, enabling cut optimization and minimizing the risk of wasting perfectly good materials while attempting to get rid of defective spots.

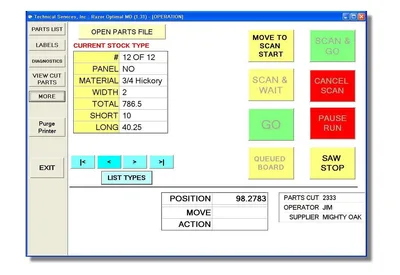

Windows Tower PC operation on a large, color touch-screen monitor.
Easy to use software with room to store thousands of cutlists. Optimize and sort cutlists into thousands of groups according to multiple criteria.
Optimized defect detection technology maximizes usable material between crayon marked defects
Automatic top, left, and right intelligent clamping

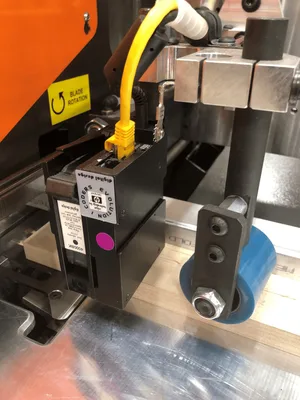

Paper label printing or printing directly on the material
Print in decimal or fraction format.
Print in decimal or fraction format.
Part length accuracy varies with application but +/-.005″ is possible
Optional RazArray sorting light grid can be added to further improve operational efficiencies and reduce mistakes
Direct drive 18” blade slides on Hiwin Linear bearings for maximum rigidity.
Power Requirement – 120 VAC at 10A
Pocket hole Saw: 230 VAC 3φ 40A OR 460 VAC 3φ 30A
Motor: 7.5 HP
Part Accuracy: +/- 0.008” or better
Up to 200 lbs Push Force
22” Touch Screen
Network Port AND Wi-Fi
USB Ports
Two 4” Dust Ports min 1200 CFM
60 psi min compressed air pressure
Minimum Defect Scanning Width: 1.5”
Max Capacity 1.5” x 12”
