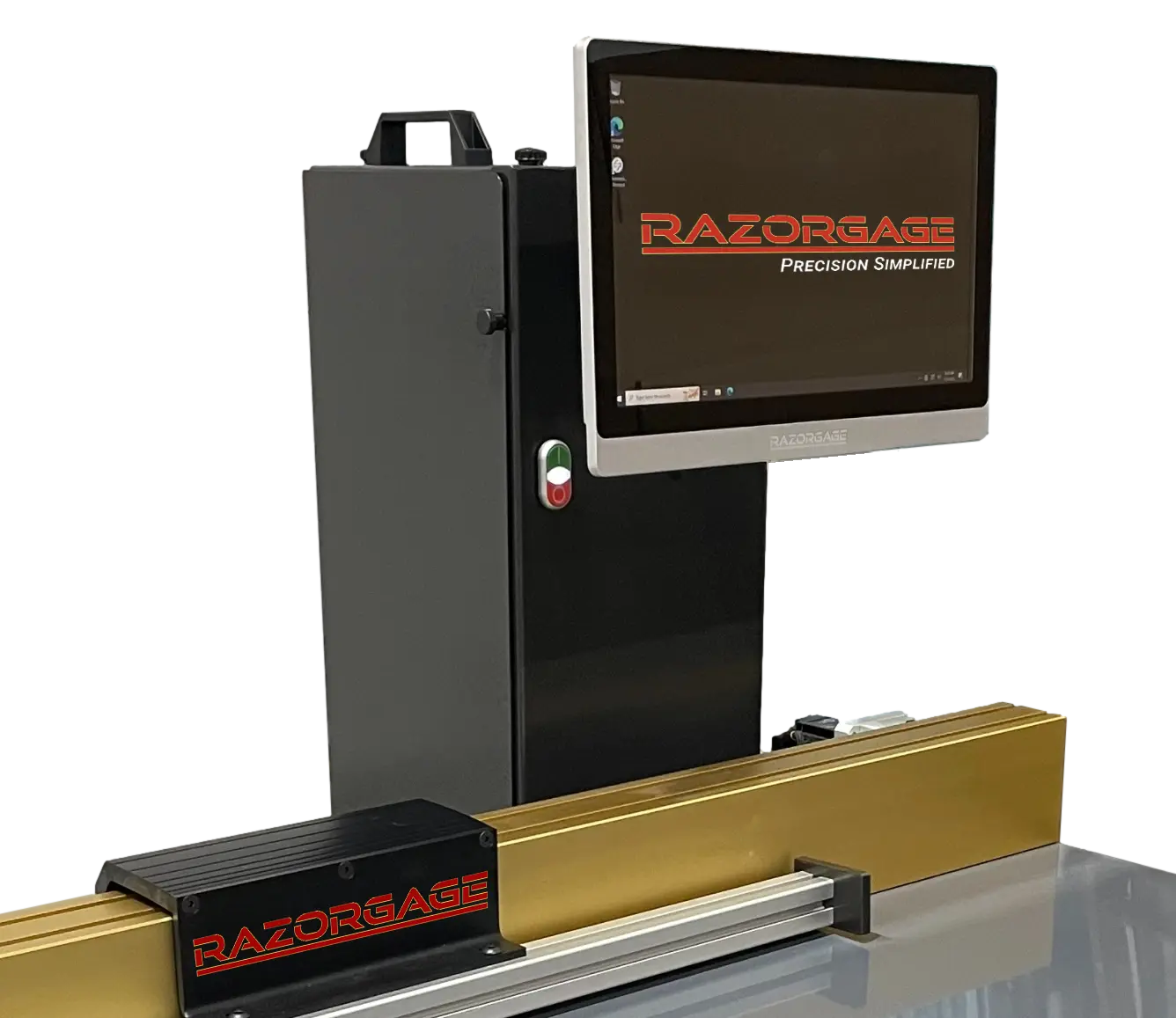

RAZORGAGE RG3 AUTOMATIC SAW MEASURING SYSTEM

PROGRAMMABLE SAW STOP & PUSHER
The RazorGage RG3 Automatic Saw Measuring System is at the heart of our product line. Whether you use the RG3 as an automatic pusher or an automatic saw measuring stop, this digital miter saw stop and measuring fence can be used with a chop saw, automatic upcut saw, downcut saw, drill press, haunching, notching and punching machines. When looking to improve output and efficiency for your operations, the RazorGage RG3 Automatic Saw Measuring System offers the highest degree of accuracy, repeatability and long-lasting dependability.
PLUS: You can opt for the AUTOLIST UPGRADE Optimize the Yield on Your Material!
Ready to learn more about the RazorGage RG3 programmable saw stop?

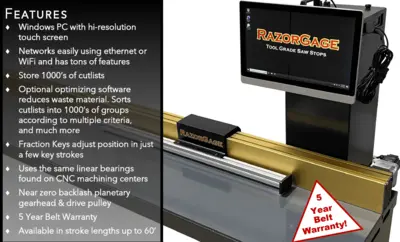

PC running the Windows 10 Professional operating system with a hi-resolution touchscreen networks easily with other devices using ethernet or WiFi and has tons of features.
Store thousands of cutlists, sort cutlists into thousands of groups according to multiple criteria.
Fraction keys allow the user to adjust position in just a few keystrokes.
Optional optimizing software reduces waste material.
Print labels with text and a combination of any two special fields that can each contain barcodes, QR codes, or images.
Uses the same linear bearings found on CNC machine tools.
Near zero backlash planetary gearhead & drive pulley.
5 Year Belt Warranty.
Available in stroke lengths up to 60’.
Accuracy: ±.004” over 12 feet if calibrated with a capable
measuring device.
Repeatability: 001”
Push Force: 200 lb at 10 ips
Max Speed: 55 ips
Power Reqd: 120 VAC / 10 Amps
Interface: 15.5” Touchscreen or 23” Touchscreen with
Optional Tower PC
Networking: Wifi or Ethernet
Operating System: Windows 10 Pro
Length: Available in 4~60 Foot Stroke
