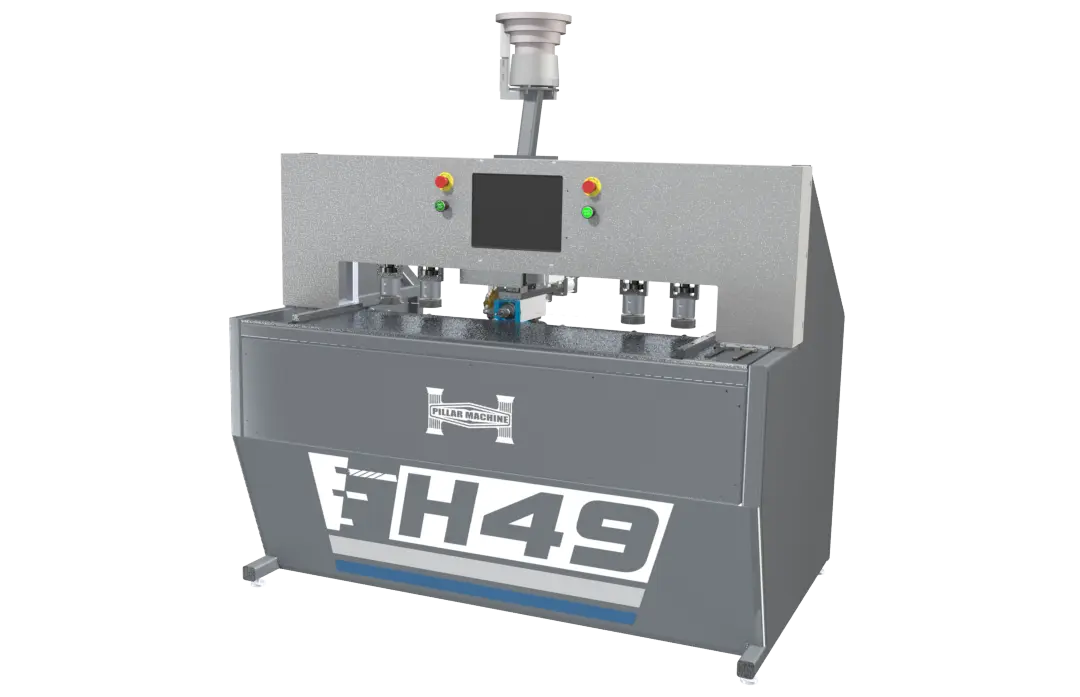

The H49 is a horizontal CNC boring and dowel insertion machine with a 49″ working width and two pendulum zones. It completes each bore, glue injection, and 8 mm dowel insertion in under one second at standard 64 mm intervals. Programmable from a 15″ touchscreen; compatible with Cabinet Vision and Microvellum via .xml.
CNC Precision: Automatically positions the spindle to bore holes and the inserter to inject glue (or water for pre-glued dowels) and insert dowels with pinpoint accuracy.
Quick Cycle Times: Completes each bore, glue, and dowel insertion in less than 1 second when holes are spaced at 64 mm intervals, maximizing productivity.
Dual Work Zones: Features two zones for pendulum processing, allowing you to load one part while machining another, minimizing downtime.
User-Friendly Interface: A 15″ industrial touchscreen with intuitive graphics enables quick programming and easy operation, even for less experienced users.
Customizable Options: Can be outfitted with additional horizontal and vertical spindles, horizontal dowel inserters, and hardware inserters for expanded capabilities.
Built for Durability: Constructed with a welded main frame and high-quality components, ensuring long-term reliability in demanding shop environments.
Case construction in cabinet and furniture manufacturing.
Woodworking shops needing precise, efficient horizontal boring and dowel insertion.
Operations seeking to shift boring and doweling tasks from CNC routers or point-to-point machines for faster production.
Graphic interface for easy hole and dowel placement.
Parametric programming for flexible adjustments.
Pattern drilling and inserting for complex designs.
Password protection and online diagnostics for maintenance.
