New | in-Stock PILLAR MACHINE _UNKNOWN_ Dowel Machines | 360 Degree Machinery #822271
New | in-Stock

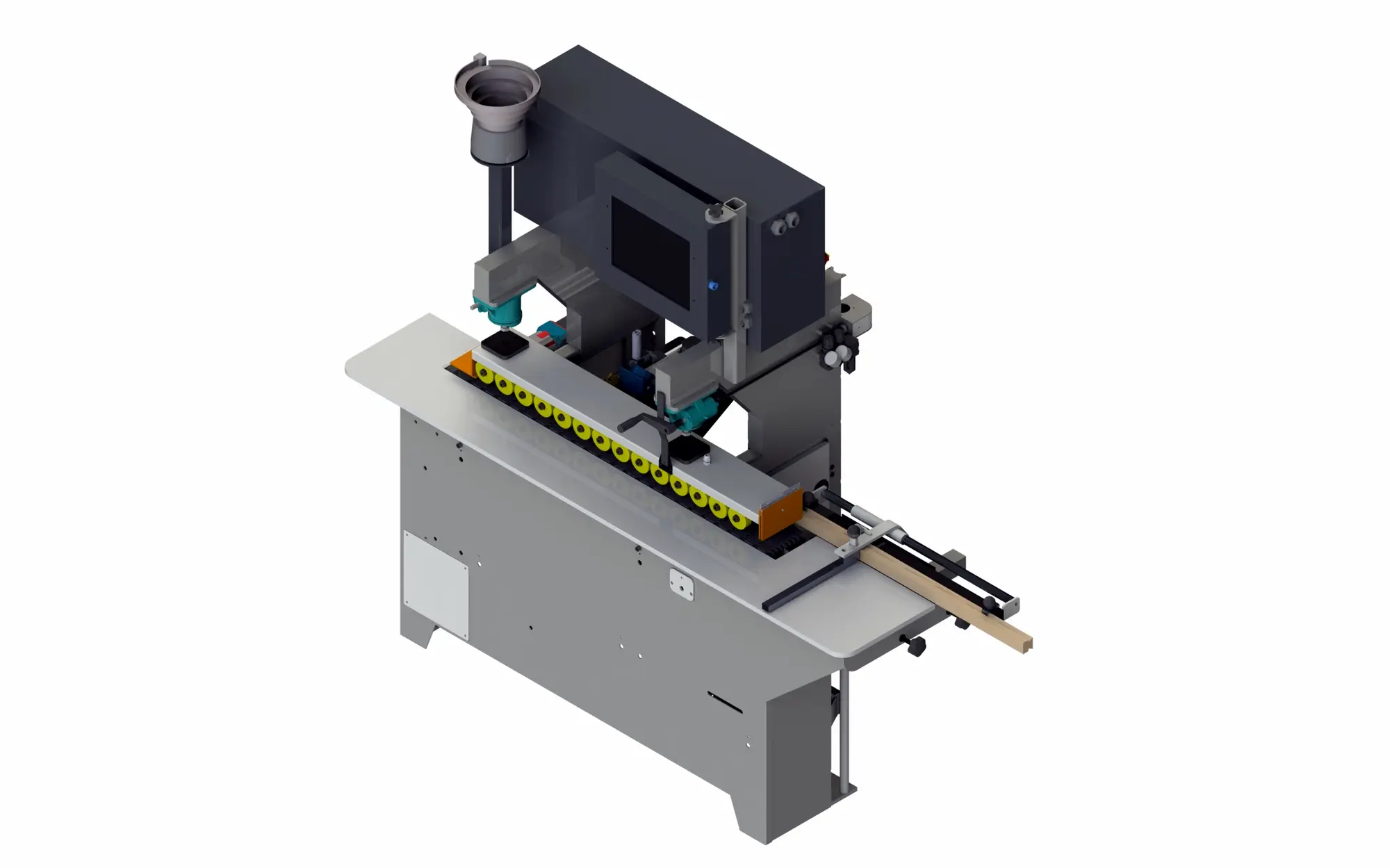

Pillar OTF: High-Speed On-The-Fly CNC Dowel Insertion Machine

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

360 Degree Machinery
685Listings|6Followers
View seller profile
Overview
Dowel Machines
PILLAR MACHINE

The OTF drills and inserts 8 mm dowels continuously as panels move through a feed chain conveyor, designed for European-style cabinet box construction in melamine-laminated particleboard. True centerline referencing supports bidirectional processing and mirror mode for flexible panel handling without stopping the line.

Specs

On-The-Fly Efficiency: Drills and inserts 8mm dowels in a continuous conveyor process, maximizing throughput for high-volume shops.
True Centerline Referencing: Operates from the panel’s centerline, enabling bidirectional processing or mirror mode for consistent Z-axis values.
High-Speed Spindle: 1 HP, 18,000 RPM direct-drive spindle ensures precise hole boring for optimal dowel fit and glue contact.
Smart Touchscreen: 15″ industrial touchscreen with parametric programming and .xml file integration simplifies setup and operation.
Optional Upgrades: 18″ dowel bowl ($1,950) holds 3,000 dowels; fixed barcode reader ($1,600) automates part file loading.
Compact Durability: 1,325 lb. frame with a 75″ x 36″ footprint, built for reliability in demanding environments.
Graphical interface for dowel placement and drilling.
Parametric programming for flexible dowel spacing.
Online diagnostics for maintenance (with internet).
