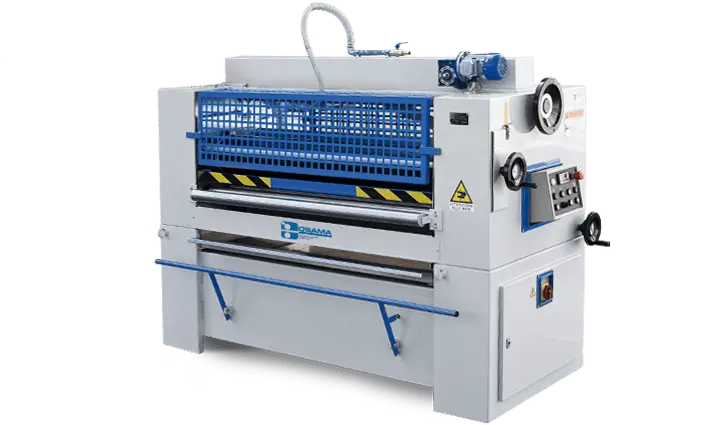

Osama S4R Top and Bottom Glue Spreader

AUTOMATIC 4 ROLLER GLUER
The 4 roller gluer is without doubt superior to the 2 roller model, solely for the fact that the roller regulating the quantity of glue dispensed is ground.
A more robust structure plus a 1.5 HP motor are designed for more demanding customers, in particular where applying glue in the following cases is concerned: panels, including heavy panels, of chipboard, MDF or plasterboard; panels to be clad with thin veneer, smooth laminates, thin aluminium sheets, etc.
Top and bottom glue dispensing is adjusted respectively by an external handwheel and with position reference.
The dispenser rollers can be of approx. 100 shore ebonite hard rubber or clad in hard chrome in the case of particular glues or aggressive catalysers.
We can also perforate the dispenser rollers on the inside and connect them via rotating joints mounted at the ends to a refrigeration system.
This gluer is often selected because it has an excellent quality/price ratio.
It can also be fitted with top and bottom roller glue feeding systems and preset for working in a pressing line.

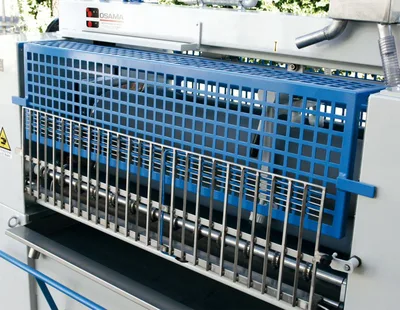

Complete enclosure of “danger zones”

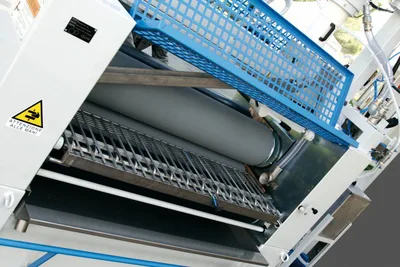

Upper work-piece feed safeguard in the form of a suspended flap fixed directly onto the glue spreading roller. (The safety stop is activated as soon as the flap is moved at the roller’s feed point by either the work-piece or the machine operator.)
All limit switches are provided with safety covers that can only be removed using tools.
Automatic Cleaning System complete with brushes & line hook-up for ease in clean up
Glue Transfer Pump (pictured below) with plumbing
Floor Castors for easy movement during floor cleaning
Adjustable Infeed Fence in front of glue spreader

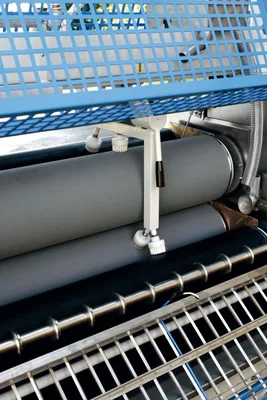

Mechanical Detail
ACM Pump for automatic level control of glue
Technical Specifications
Model S4R 1600
metric
standard
Working Width
1600 mm
63″
Application Roller Diameter
210 mm
8.2″
Approx. Max Height Clearance
100 mm
3.9″
Throughfeed Speed
20 m/min.
65 ft/min
Drive Output
(of 3-phase motor)
1.1 kW
18
Glue Coverage
8-120 g glue/m2
—
Electric
230 V, 3-phase
18
