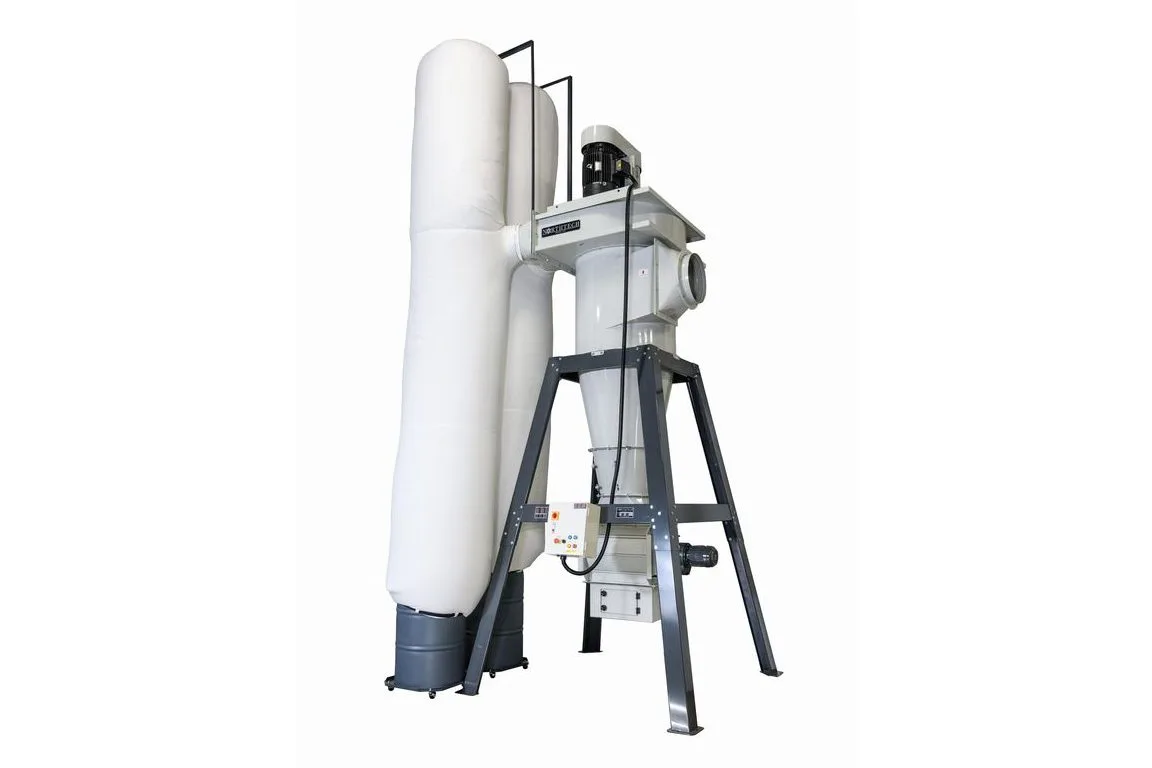

Northtech NT-2ST-20XL-RAL 2-Stage 20 HP Dust Collector (w/ Rotary Air Lock)

Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
This two-stage dust collector from Northtech uses cyclonic separation to remove larger waste particles from the airstream before sending it to the filter bags, improving efficiency and effectiveness. The 16″ inlet and 12″ outlet dust ports, along with the included 1 HP rotary airlock, minimize system pressure losses to maintain the air velocity and CFM produced by the robust 20 HP three-phase motor and large 26″ impeller.
Contact us today for help choosing just the right dust collector for your shop!

2 Stage Filtering Industrial Series Dust Collector
20 HP. motor with magnetic starter
8,200 CFM at 4.9” Static pressure 5730
Dust port inlet: (1) 16″
26″ fan
Air velocity: 6,000 FPM
(2) 12 x 31-1/2” x 224-1/2” 5-micron filter bags
Dust port outlet: (2) 12″
Cyclone system provides high-efficiency removal of dust particles
(2) 55-gallon drum dollies (Drums not included)
1 HP Rotary Air Lock (Included)
18’5″ Tall with 82″ base
Clearance below RAL: 33-1/4″
Net weight: 2,180 lbs.
Gross weight: Collector 1,950 lbs. / Air Lock 420 lbs.
Machine dimensions: (L) 102″ x (W) 82 ” x (H) 222″
Packing dimensions: (L) 91″ x (W) 48″ x (H) 76″ / (L) 50″ x (W) 24″ x (H) 25″
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 20 hp.
Machine Hp. = 21 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 50/25 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage

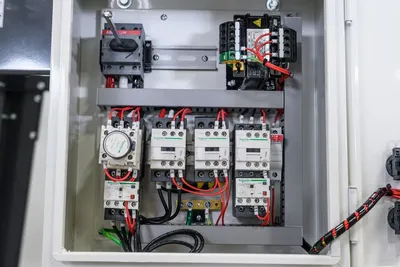

Assisted Start = Wye Delta
Dust Port In = 16” Inlet
Dust Port Out = (2) 12” Top Outlets
Free Air CFM = 8200 CFM
R.A.L. Hp. = 1 Hp. Direct Drive
R.A.L. Size = 10” x 24”
Impeller = 26” Steel Impeller
Frame Const. = 1/8” Steel Construction
Upper Bags = 12” x 31-1/2” x 224-1/2”
Cyclone Diam. = 35” I.D.
No. of Barrels = 2 Barrels (Not Included)
No. of Dollies = 2 Dollies
Decible Rating = 90 dB
Net Weight = 2180 Lbs. W/ RAL
Gross Weight = 2370 Lbs.
Machine Dims. = 102” x 82” x 222”
Packaging Dims = 91” x 48” x 76”
