The Northtech NT EM250 fully automatic PLC touchscreen-controlled linear end-matcher features dual 5 HP motors powering the carbide-insert tongue and groove cutter heads, and comes with a 134″ powered infeed table and 88″ outfeed with dual-action pneumatic clamping and powered urethane rollers. The variable-speed feed system is fully adjustable between 80 and 400 feet per minute to keep up with large workloads. The machine is able to easily process material up to 10″ (W) by 1-3/8″ (H) with a minimum length of 11″.

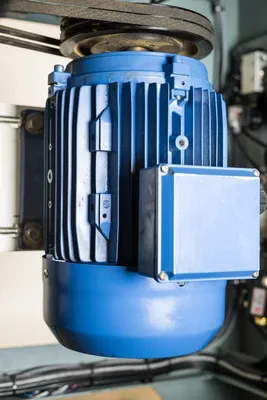

Dual 5HP spindle motors 230, 3PH, 60 HZ
12 CFM @ 90 PSI required
(1) 6” dust ports requiring 981 CFM @ point of extraction
Width: 1-1/2” – 10”
Thickness: 3/8” – 1-3/8”
Length: 11” – unlimited
Maximum Weight of Lumber: 32lbs
40mm spindles inside precision bearing
1HP PLC controlled feed system manages spindles position, part location and both infeed and outfeed hold downs
Feed Speed: 80 – 400 FPM
Pancake style T & G head, utilize carbide insert replacements for exacting repeatability (Included)
Dual linear shaft guides for head movement
Touchscreen interface with production tracking
Chrome-plated table
134” Powered infeed and 88” outfeed

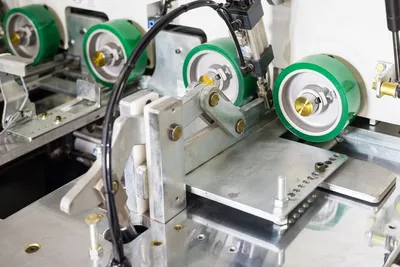

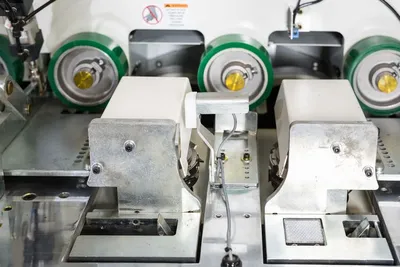

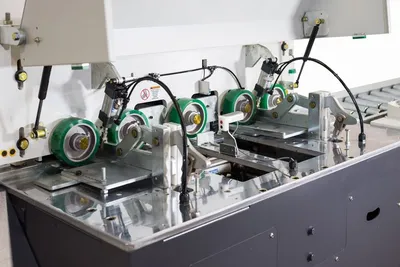

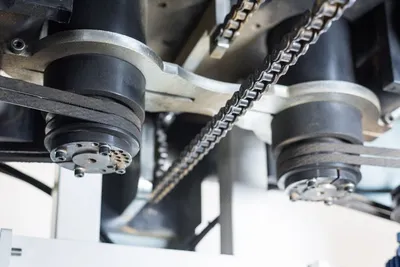

Infeed and outfeed with dual action clamping system with (5) powered urethane rollers
(3) Spring loaded bed rollers
FLR included
Fully automatic cycle operation
Processing speed: 75’ / minute *Based on 6’ material length
Net weight: 2,559 lbs.
Machine dimensions without infeed / outfeed: (L) 72″ x (W) 33″ x (H) 55″
Packing dimensions: (L) 78″ x (W) 39″ x (H) 63″
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 5 hp. x 2
Machine Hp. = 12.5 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 39 Amps
Configuration = Toungue
Spindle Arrang. = Groove
1st Spindle = 40mm 7400 Rpm Toungue
2nd Spindle = 40mm 7400 Rpm Groove
Spindle Length = 5”
Spindle Diam. = 40 mm
Spindle RPM = 7400 Rpm
Under Nut Cap. = 4-1/4”

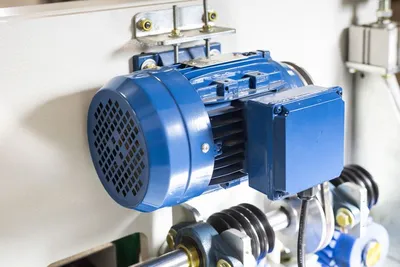

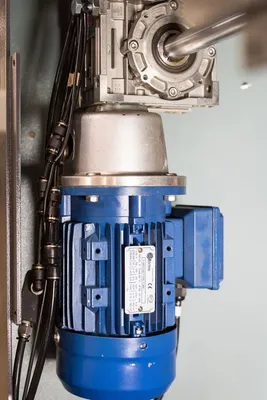

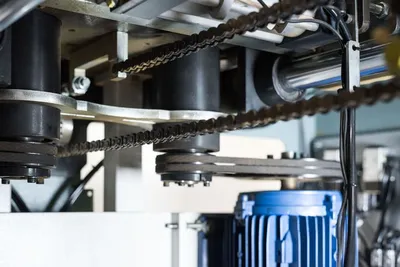

Feed Hp. = 1 Hp.
Feed System = (5) 5-1/2” Poly Wheels

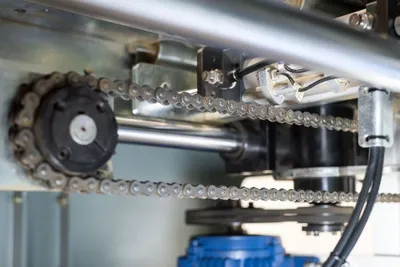

Drive System = Gear Driven
Feed Speed = 80 – 400 FPM
Variable Speed = Programmable Feed Speed

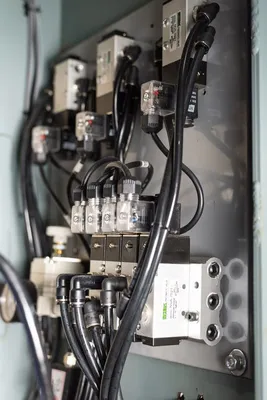

Elevation Style = Pneumatic
Elevation Sys. = Pneumatic Cylinders
Total Hp. = 12.5 Hp.

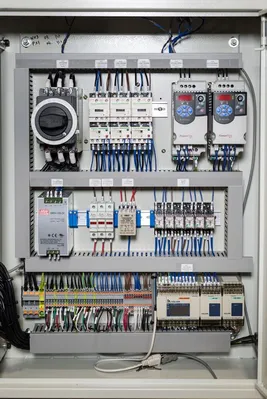

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Programmable = Feed/Head Speed
Touch Screen = 5-1/2” Touch Screen
Pass-Line = 35-3/4”
Min. Length = 10.63”
Min. Width = 1-1/2”
Max. Width = 10”
Min. Thickness = .393”
Max. Thickness = 1.375”
Tooling = Tongue/Groove Insert Head
Rows of Cutters = 8 Rows
No. of Inserts = 48 Total Inserts
Roller Type = 5-1/2” Poly Rollers
Dust Collection = (1) 6” @ 981 CFM
Dust Port Out = (1) 6”
Cycles/Minute = 78 FPM on 6′ Material
Conveyor = Powered Infeed Conveyor
Powered Rollers = (5) 5-1/2” Powered Rollers
Idle Rollers = (3) Idle Bed Rollers
Hold Down Style = Pneumatic Rollers
Total Clamps = (2) Clamps
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 3/8” Supply Line @ 90 Psi
Emergency Stop = Push Button
Guarding = Full Cabinet Enclosure
Operation Style = Touch Screen Control
Fence Type = Fixed Fence
Frame Const. = 3/16” Steel Construction
Worktable Dims. = 23-1/2” x 55-1/4”
Table Const. = Steel
Infeed Table = 133-1/2” Infeed
Outfeed Table = 87-1/2” Outfeed
Chrome Bed = .004” Chrome Plated Bed

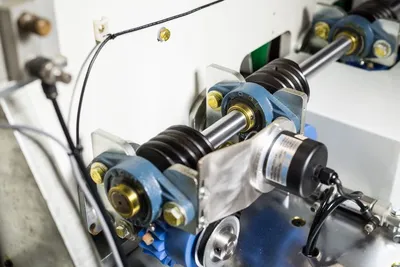

Measure Meth. = Precision Encoder
Auto Cycle = Yes
Decible Rating = 76 dB
Net Weight = 2559 Lbs.
Gross Weight = 2734 Lbs.
Machine Dims. = 292-1/2” x 33-1/2” x 62”
Packaging Dims = 78” x 39” x 63”
