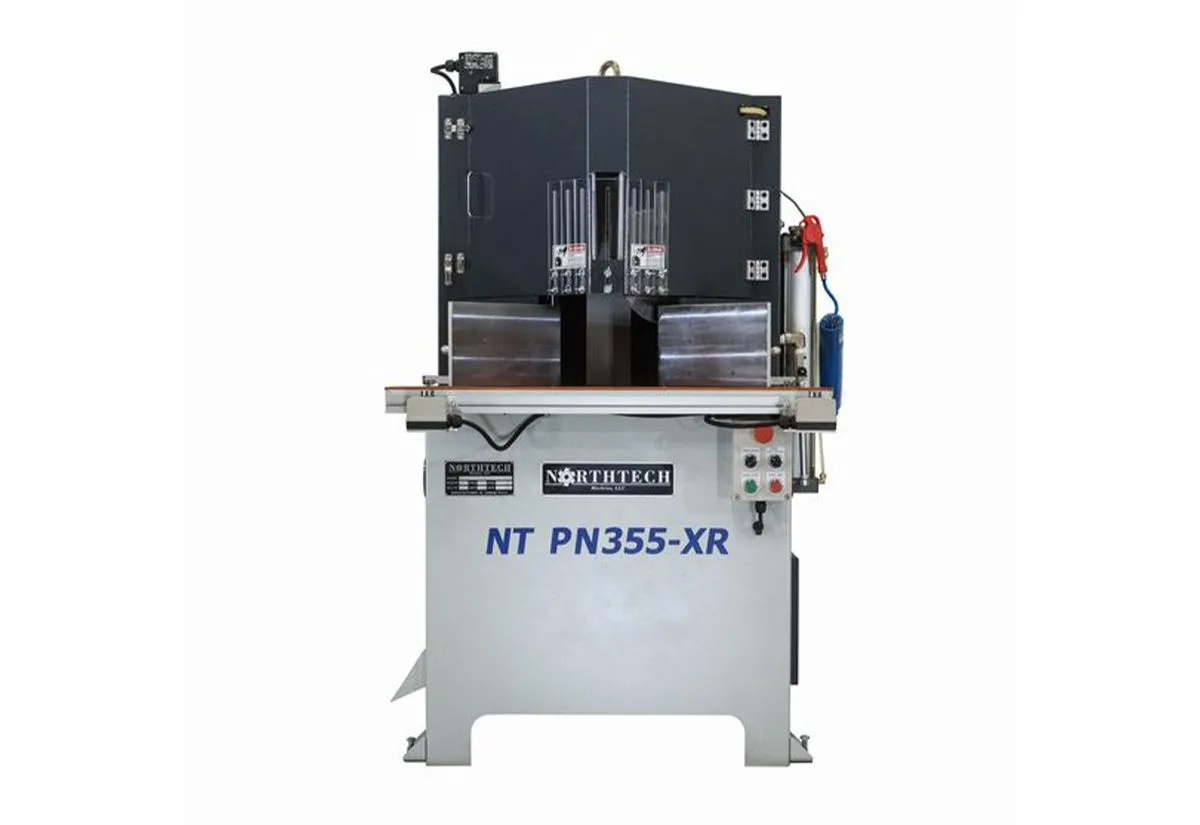

Northtech’s NT PN14 panel notcher is specially designed for cutting tall workpieces; the 14″ blades cycle vertically on two precision shafts for perfectly square cuts in material up to 7″ thick. This workhorse is produced with two (2) 5 HP motors that keep the blades spinning at 3100 RPM throughout even the deepest cuts to ensure smooth and consistent results on each cycle. The staggered alignment and blade-wear compensation of the two blades are engineered to minimize waste and ensure uniform results. The saw blade height/stroke is adjustable to optimize cycle times by starting out closer to the material.
90° Notcher

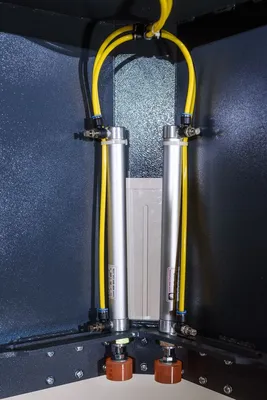

Air over hydraulic operation for quick and stable strokes

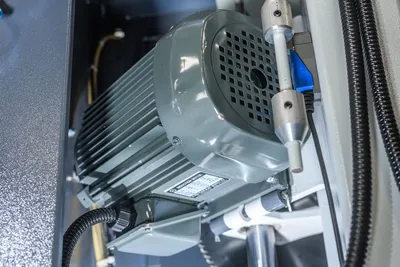

(2) 5HP arbor motors
Linear guide bearing for repeatable precision
7” stack height
5-1/4” x 5-1/4” maximum cut depth
Easy blade adjustments for blade wear compensation
Quickly adjustable stroke setting

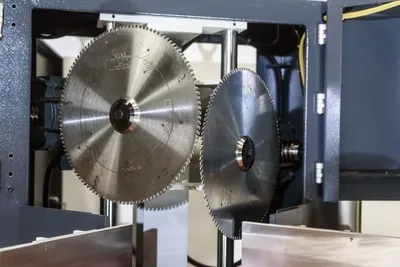

(2) 14” carbide tipped saw blades included

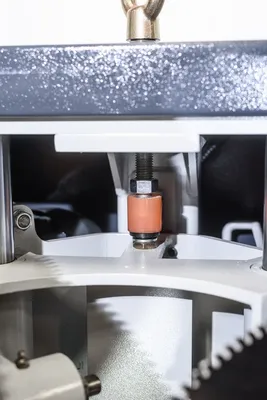

(4) Vertical clamps with selectable manual or automatic activation for premium part hold
Net weight: 908 lbs.
Gross weight: 1102 lbs.
Machine dimensions: (L) 39”” x (W) 36″ x (H) 63-1/2″
Packing dimensions: (L) 48” x (W) 44″ x (H) 69″
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 5 hp. x 2
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 30 Amps
Total Hp. = 10 Hp.
Electronics = CE Approved Components
Control Voltage = 24 Volt Control Voltage
Min. Width = 1-1/8” x 1-1/8”
Max. Width = 5-1/2” x 5-1/2”
Max. Thickness = 7”
Arbor Rpm = 3100 Rpm
Blade Size = 14” Tungsten Carbide Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 3/8”
Blade Kerf = .118 In.
Cleaning System = Detail Blow Off Nozzle
Vertical Travel = 7”
Dust Collection = (2) 4” @ 900 CFM
Arbor Diameter = 1”
Cycles/Minute = 5 Cycles Per Minute
Hold Down Style = Dual Pneumatic Clamps
Recommended CFM = 1/4” Line @ 90 PSI
Waste Discharge = Side Chute
Emergency Stop = (1) Push Putton (2) Bars
Safety Feature = Safety Interlock Switch
Guarding = High Visibility Guarding
Operation Style = Dual Push Button
Fence Type = Adjustable Fence
Fence Dims. = 7-1/4” x 12-1/2”
Frame Const. = 3/16” Steel Construction
Worktable Dims. = 16-1/4” x 37-1/2”
Table Const. = Steel
Measure Meth. = Lineal Scale on Fence
Decible Rating = 70 dB
Net Weight = 908 Lbs.
Gross Weight = 1102 Lbs.
Machine Dims. = 39-1/2” x 36” x 63-1/2”
Packaging Dims = 48” x 44” x 69”
