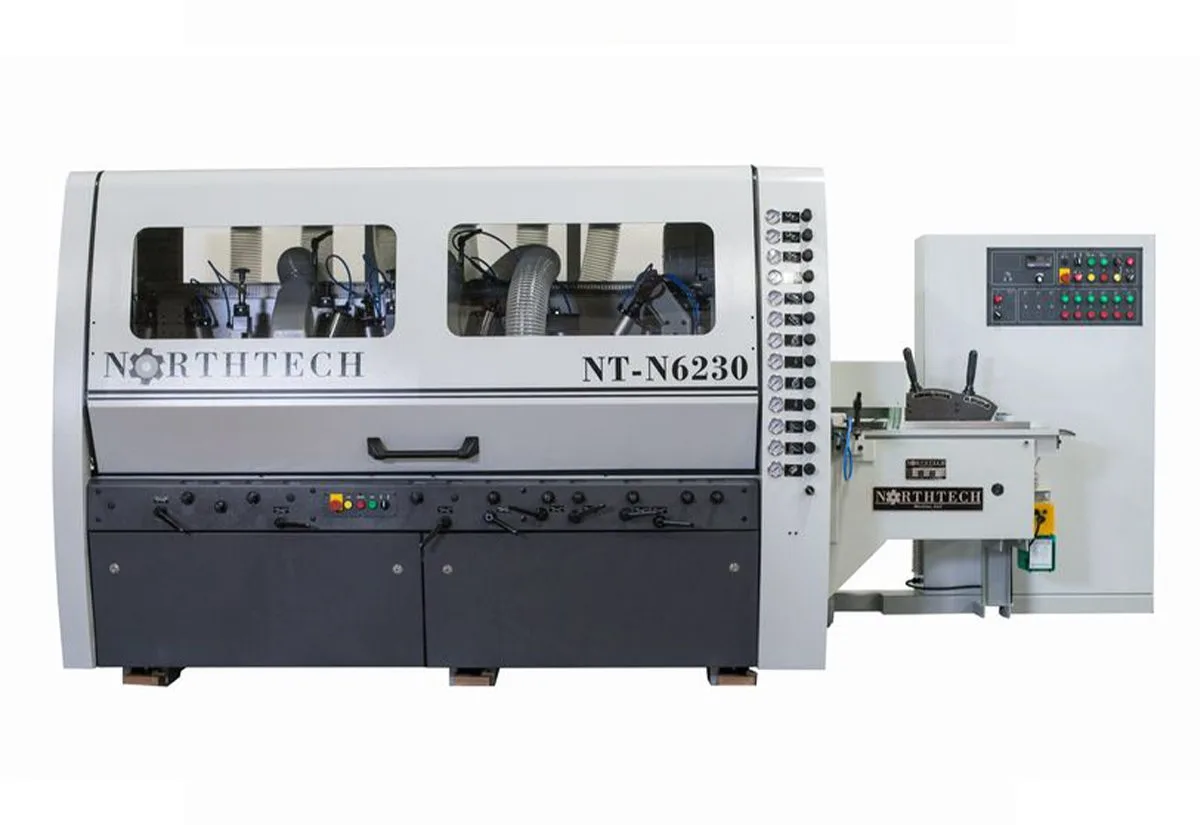

Northtech NT N6230 Six-Spindle Moulder

*All Northtech moulders are highly customizable. Many options, including digital positioning control, additional feed rollers, and feed magazines are available. We are unable to maintain a complete updated list online. Please click the “Add to Quote” button below the description for more information and tell us about your needs!
This is Northtech’s NT N6230 six-spindle four-side moulder, featuring two (2) 15 HP top spindles, two (2) 15 HP bottom spindles, and 10 HP vertical spindles on both left and right sides. One (1) complete set of 5″-diameter four-wing cutter heads is included to get you set up and producing quicker. The 7.5 HP feed system with twelve (12) powered rollers [nine top + three bottoms] delivers inverter-controlled feed-rates up to 120 FPM allowing you to strike an optimal balance between operator- and machine-cycle time to minimize wasteful wait time amid operations. A full enclosure, six (6) 5″-inch dust collection ports, optional spindle brakes, motorized elevation control, and unique noise-dampening fingers further protect worker health and safety.

1st: Bottom horizontal: 15HP, 6,000 RPM, 40mm spindle
2nd: Right vertical: 10HP, 6,000 RPM, 40mm spindle
3rd: Left vertical: 10HP, 6,000 RPM, 40mm spindle
4th: Top horizontal: 15HP, 6,000 RPM, 40mm spindle
5th: Top horizontal: 15HP, 6,000 RPM, 40mm spindle
6th: Bottom horizontal: 15HP, 6,000 RPM, 40mm spindle
Feeding motor: 7-1/2 HP with inverter
Elevation motor: 1/2 HP
Feeding speed: 20 – 120 FPM
Width: 10mm – 230mm (3/8″ – 9-1/2″)
Thickness: 8mm – 170mm (5/16″ – 6-1/2″)
Minimum length: 300mm (12″)
Infeed table length: 1300mm (51″)
Table is hard chrome plated
Table is hard chrome plated
(3) Powered bed rollers
(1) Auxiliary short stock roller
(1 set) Moulder heads
Horizontal: (4) 5″ x 9″; 4 wing, 40mm heads
Vertical: (2) 5″ x 4″; 4 wing, 40mm heads
Horizontal: (4) 5″ x 9″; 4 wing, 40mm heads
Vertical: (2) 5″ x 4″; 4 wing, 40mm heads
Dust collection: (6) 125mm (5″) dust ports requiring 681 CFM @ each point of extraction
Net weight: 9,039 lbs.
Gross weight: 10,362 lbs.
Machine dimensions: (L) 150″ x (W) 83″ x (H) 84″
Packing dimensions: (L) 168″ x (W) 76″ x (H) 71″
(1) Toolbox
Warranty is one-year parts
All machines are tested at the factory prior to shipment providing trouble-free start-up.
Reverse Motor = Feed Motor
Machine Hp. = 88 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 210/105 Amps

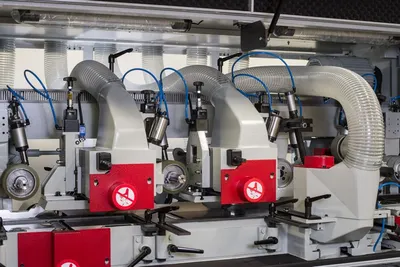

Spindle Arrangement = Bottom Right Left Top Top Bottom
1st Spindle = 15HP, 6,000 RPM, 40mm spindle
2nd Spindle =10HP, 6,000 RPM, 40mm spindle
3rd Spindle = 10HP, 6,000 RPM, 40mm spindle
4th Spindle = 15HP, 6,000 RPM, 40mm spindle
5th Spindle = 15HP, 6,000 RPM, 40mm spindle
6th Spindle = 15HP, 6,000 RPM, 40mm spindle
Spindle Diam. = 40 mm
Spindle RPM = 6000 Rpm
Under Nut Cap. = Horiz. 9-7/8” Vert. 7”
Feed Hp. = 7.5 Hp.
Feed System = Synchronized gearbox feed sys
Drive System = Inverter-controlled 7.5HP feed
Feed Speed = 20 – 120 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1/2 Hp.
Elevation Style = Up/Down Switch
Elevation Sys. = Jack Screw / Gib System
Total Hp. = 88 Hp.
Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Assisted Start = Wye-Delta 15 Hp Heads
Pass-Line = 35-1/2”
Min. Length = 12”
Min. Width = 3/8”
Max. Width = 9-1/2”
Min. Thickness = 5/16”
Max. Thickness = 6-1/2”
Roller Type = Steel / Rubber
Dust Collection = (6) 5” @ 5886 CFM
Digital Display = Feed
Powered Rollers = 9 Top 3 Bottom Powered Rollers
Pressure Shoes = (2) 7-1/8” x 8-3/4”
Hold Down Style = Pressure Shoes/Rubber Rollers
Emergency Stop = (2) Push Button
Guarding = Full Cabinet Enclosure
Grease Manifold = Remote Grease Manifold
Oiler = Auto Oiler
Fence Type = Adjustable Fence
Fence Dims. = 1” x 53-1/4”
Brake System = Air Brakes On Motors
Frame Const. = Cast/Steel Construction
Worktable Dims. = 10-7/8” x 136”
Chrome Bed = .004” Chrome Plated Bed
Noise Bed Fing. = Noise Reduction
Measure Meth. = Siko Counter
Decible Rating = 76 dB
Net Weight = 9039 Lbs.
Gross Weight = 10800 Lbs.
Machine Dims. = 158” x 75” x 71”
Packaging Dims = 163” x 83” x 84”
