*All Northtech moulders are highly customizable. Many options, including digital positioning control, additional feed rollers, and feed magazines are available. We are unable to maintain a complete updated list online. Please click the “Add to Quote” button below the description for more information and tell us about your needs!

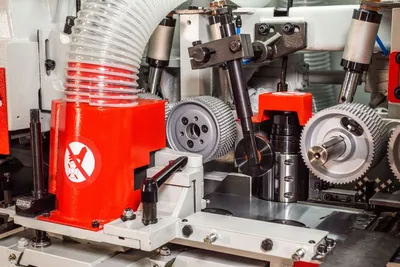

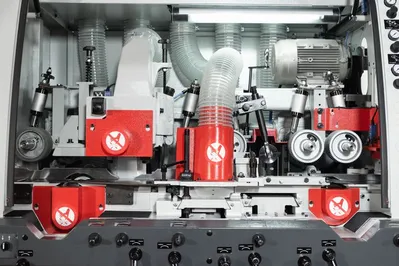

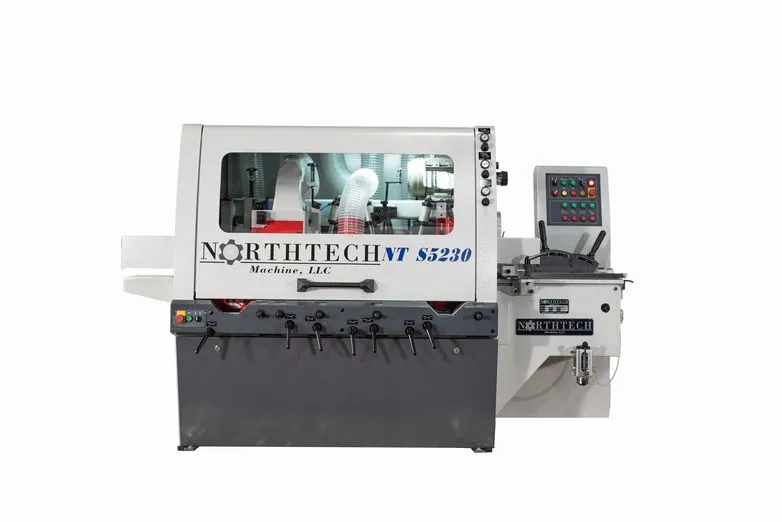

The NT N5230 five-spindle four-side moulder from Northtech features 15 HP left and right (vertical) spindles and 7.5 HP top and bottom (horizontal) spindles, all producing 6000 RPM. One (1) complete set of 5″-diameter four-wing cutter heads is included to get you set up and producing quicker. The 3 HP Cardan drive feed system is adjustable to speeds from 20 to 80 FPM. A full enclosure, five (5) 5″-inch dust collection ports, optional spindle brakes, and unique noise-dampening fingers further protect worker health and safety.
1st – Bottom horizontal: 7.5 HP
2nd & 3rd Left/Right vertical: 15 HP
4th – Top horizontal: 7.5 HP
5th – Bottom horizontal: 7.5 HP
Spindle speed: 6000 RPM
Spindle diameter: 1-13/16″
Feeding motor: 3HP
Elevation motor: 1/3HP
Feeding speed: 20-75 FPM
Width: 10mm – 230mm (3/8″ – 9″)
Thickness: 7mm – 125mm (1/4″ – 5″)
Infeed table length: 51″
Hard chrome plated table
Incorporated bed roller
(3) 4 Wing 5″ x 9″, corrugated knife stock moulder heads for 1-13/16″ (Included)
(2) 4 Wing 5″ x 4″, corrugated knife stock moulder heads for 1-13/16″ (Included)
Net Weight: 5,550 lbs.
Gross Weight: 5,850 lbs.
Machine Dimensions: (L) 102″ x (W) 53″ x (H) 68″
Packing Dimensions: (L) 92″ x (W) 56″ x (H) 78″
Warranty is one-year parts
All machines tested stateside at Northtech prior to shipment providing trouble-free start-up.
Machine Hp. = 41 Hp.
Voltage/ Freq. = 230460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 100/50 Amps
Spindle Arrang. = Bottom R L Top Bottom
1st Spindle = 7.5 HP, 6,000RPM, 1-13/16″
2nd Spindle = 15 HP (Shared) 6,000RPM, 1-13/16″
3rd Spindle = 15 HP (Shared) 6,000RPM, 1-13/16″
4th Spindle = 7.5 HP, 6,000RPM, 1-13/16″
5th Spindle = 7.5 HP, 6,000RPM, 1-13/16″
Spindle Diam. = 1-13/16”
Spindle RPM = 6000 Rpm
Under Nut Cap. = 10-1/4” Horizontal 6” Vertic
Feed Hp. = 3 Hp.
Feed System = Knurled / Urethane Rollers

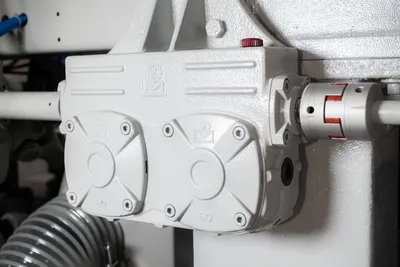

Drive System = Cardan Shaft Drive System
Feed Speed = 20- 80 Fpm
Variable Speed = Variable Speed Pulley
Reverse Feed = Reversible Feed
Elevation Hp. = 1/2 Hp.
Elevation Style = Up/Down Switch
Elevation Sys. = Jack Screw / Gib System
Total Hp. = 41 Hp.

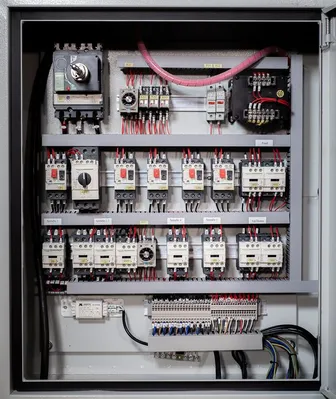

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Assisted Start = Wye-Delta 15 Hp Heads
Pass-Line = 34-3/4”
Min. Length = 22”
Min. Width = 3/8”
Max. Width = 9”
Min. Thickness = 1/4”
Max. Thickness = 5”
Dust Collection = (5) 5” @ 3405 CFM Total

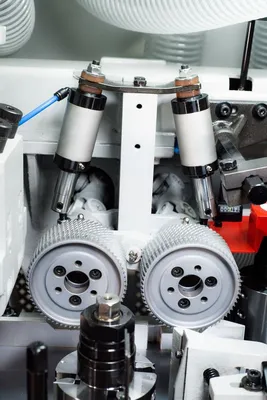

Powered Rollers = (5) Top, (1) Bottom
Idle Rollers = (1) Idle Roller
Hold Down Style = Pressure Shoes/Rubber Rollers
Recommended CFM = 3/8” Supply Line @ 90 Psi

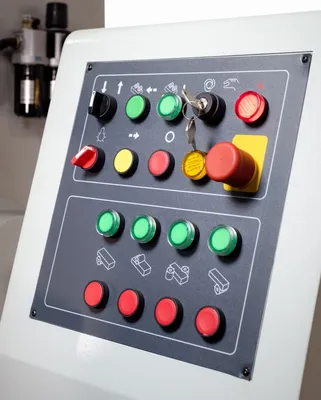

Emergency Stop = (2) Push Button
Guarding = Full Enclosure
Grease Manifold = Remote Grease Manifold
Oiler = Manual Oiler
Fence Type = Adjustable
Fence Dims. = 1” x 40-1/2”
Frame Const. = Cast/Steel Construction
Table Const. = Cast Iron
Outfeed Table = 11-1/4” x 11-1/4”
Chrome Bed = .004” Chrome Plated Bed
Noise Bed Fing. = 1st Head
Decible Rating = 83 dB
Net Weight = 5550 Lbs.
Gross Weight = 5850 Lbs.
Machine Dims. = 105” x 53” x 68”
Packaging Dims = 92” x 56” x 76”
