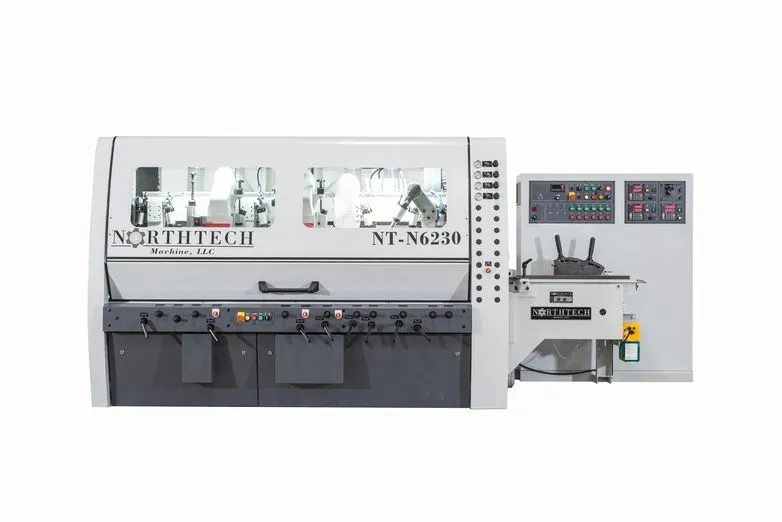

Northtech NT N6230-3 Six-Spindle Moulder

*All Northtech moulders are highly customizable. Many options, including extra-wide capacity, additional feed rollers, and feed magazines are available. We are unable to maintain a complete updated list online. Please click the “Add to Quote” button below the description for more information and tell us about your needs!
This is the Northtech NT N6230-3 six-spindle four-side moulder. It is somewhat similar to the NT 6230, with a few significant differences. This version features two (2) 15 HP top spindles, one (1) 10 HP + one (1) 15 HP bottom spindles, and 10 HP vertical spindles on the left and right sides. Spindle arrangement from infeed to outfeed is: (Bottom, R, L, Top, Top, Bottom) with digital positioning control on spindles 3, 4, and 5. One (1) complete set of 5″-diameter four-wing cutter heads is included. The 7.5 HP Cardan-drive feed system with twelve (12) powered rollers [nine top + three bottom] delivers inverter-controlled feed-rates up to 115 FPM empowering you to strike the optimal balance between operator- and machine-cycle time to minimize wasteful wait time amid operations. The full protective enclosure, six (6) 5″-inch dust collection ports, optional braking motors, motorized elevation control, and unique noise-dampening fingers promote worker safety and health.

1st: Bottom horizontal: 10HP, 6,000RPM, 1-13/16″ spindle
2nd: Right vertical: 10HP, 6,000RPM, 1-13/16″ spindle
3rd: Left vertical: 10HP, 6,000RPM, 1-13/16″ spindle
4th: Top horizontal: 15HP, 6,000RPM, 1-13/16″ spindle
5th: Top horizontal: 15HP, 6,000RPM, 1-13/16″ spindle
6th: Bottom horizontal: 15HP, 6,000RPM, 1-13/16″ spindle
Feeding motor: 7-1/2 HP with inverter
Elevation motor: 1/2 HP
Feeding speed: 20 – 115 FPM
Width: 10mm – 230mm (3/8″ – 9″)
Thickness: 7mm – 160mm (3/8″ – 7″)
Minimum length: 300mm (12″)
(3) Spindle positioning through individual digital controllers
Infeed table length: 1300mm (51″)
Table is hard chrome plated
Table is hard chrome plated
(3) Powered bed rollers
(1 set) Moulder heads (Included)
Horizontal: (4) 5″ x 9″; 4 wing, 1-13/16″ heads
Vertical: (2) 5″ x 4″; 4 wing, 1-13/16″ heads
Horizontal: (4) 5″ x 9″; 4 wing, 1-13/16″ heads
Vertical: (2) 5″ x 4″; 4 wing, 1-13/16″ heads
Dust collection: (6) 125mm (5″) dust ports requiring 681 CFM @ each point of extraction
Net weight: 9,039 lbs.
Gross weight: 10,362 lbs.
Machine dimensions: (L) 158″ x (W) 79″ x (H) 74″
Packing dimensions: (L) 163″ x (W) 85″ x (H) 85″
(1) Toolbox
Warranty is one-year parts
All machines are tested at the factory before shipment to ensure trouble-free start-up.
Machine Hp. = 88 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 250/125 Amps
Spindle Arrangement = Bottom Right Left Top Top Bottom
1st Spindle = 10HP, 6,000 RPM, 1-13/16″
2nd Spindle = 10HP, 6,000 RPM, 1-13/16″
3rd Spindle = 10HP, 6,000 RPM, 1-13/16″
4th Spindle = 15HP, 6,000 RPM, 1-13/16”
5th Spindle = 15HP, 6,000 RPM, 1-13/16”
6th Spindle = 15HP, 6,000 RPM, 1-13/16” spindle
Spindle Diam. = 1-13/16”
Spindle RPM = 6000 Rpm
Under Nut Cap. = 9-1/2” Horizontal 6” Vertica
Feed Hp. = 7.5 Hp.
Feed System = Knurled / Urethane Rollers

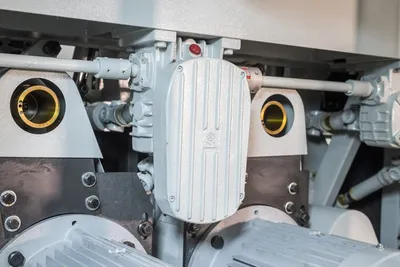

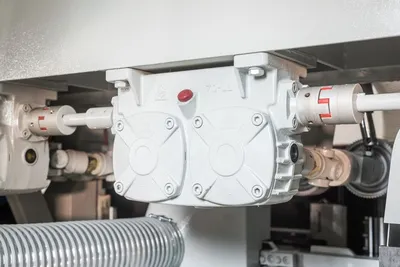

Drive System = Cardan Shaft Drive System
Feed Speed = 20 – 115 FPM
Variable Speed = Inverter Controlled
Reverse Feed = Reversible Feed
Elevation Hp. = 1/2 Hp.
Elevation Style = Up/Down Switch
Elevation Sys. = Jack Screw / Gib System
Total Hp. = 83 Hp.

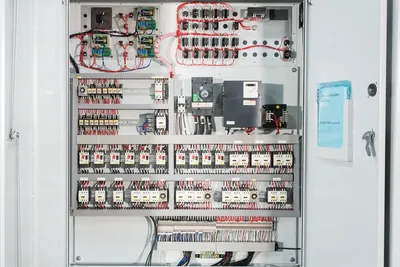

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Assisted Start = Wye-Delta 15 Hp Heads
Programmable = Spindle 3, 4, 5
Pass-Line = 35-1/2”
Min. Length = 12”
Min. Width = 3/8”
Max. Width = 9”
Min. Thickness = 3/8”
Max. Thickness = 7”

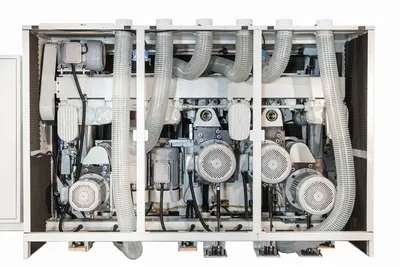

Dust Collection = (6) 5” @ 5886 CFM
Digital Display = Spindles 3, 4, 5
Powered Rollers = 9 Top 3 Bottom Powered Rollers
Hold Down Style = Pressure Shoes/Rubber Rollers
Recommended CFM = 3/8” Supply Line @ 90 Psi
Emergency Stop = (2) Push Button
Guarding = Full Enclosure

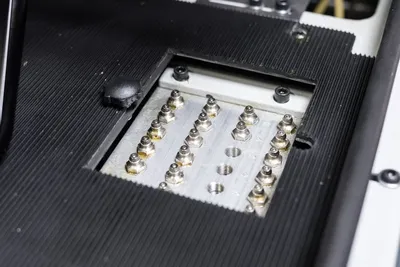

Grease Manifold = Remote Grease Manifold
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut-off
Fence Type = Adjustable Fence
Fence Dims. = 1” x 55-1/2”
Frame Const. = Cast/Steel Construction
Noise Bed Fing. = 1st Head
Decible Rating = 69 dB
Net Weight = 9039 Lbs.
Gross Weight = 10362 Lbs.
Machine Dims. = 158” x 79” x 74”
Packaging Dims = 163” x 85” x 85”
