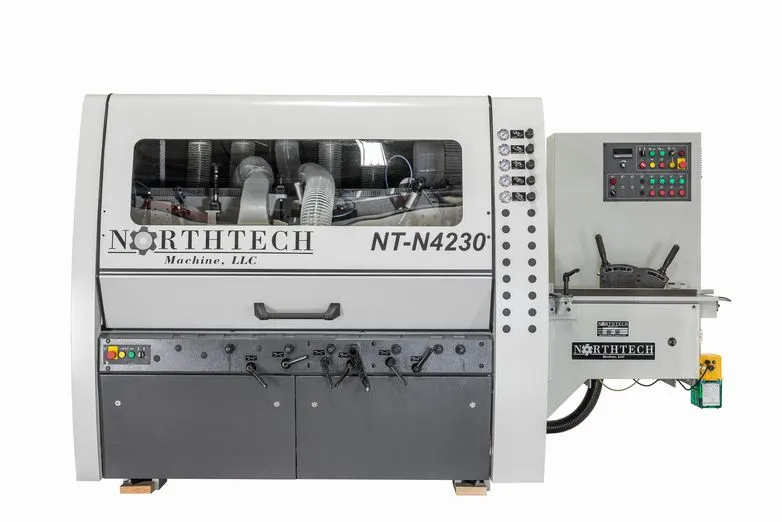

Northtech NT N4230 Four-Spindle Moulder

*All Northtech moulders are highly customizable. Many options, including digital positioning control, additional feed rollers, and feed magazines are available. We are unable to maintain a complete updated list online. Please click the “Add to Quote” button below the description for more information and tell us about your needs!
The NT N4230 four-spindle four-side moulder from Northtech features 10 HP top and bottom (horizontal) spindles and 7.5 HP left and right (vertical) spindles, all spinning at 6000 RPM. One (1) complete set of 5″-diameter four-wing cutter heads is included to get you set up and producing quicker. The 7.5 HP feed system delivers inverter-controlled feed-rates up to 120 FPM allowing you to optimize operator- and machine-cycle time to minimize wasteful waiting during production. A full enclosure, five (5) 5″-inch dust collection ports, optional spindle brakes, and unique noise-dampening fingers further protect worker health and safety.

1st: Bottom horizontal: 7.5 HP, 6,000 RPM, 1-13/16″ spindle
2nd: Right vertical: 15 HP (Shared), 6,000 RPM, 1-13/16″ spindle
3rd: Left vertical: 15 HP (Shared), 6,000 RPM, 1-13/16″ spindle
4th: Top horizontal: 7.5 HP, 6,000 RPM, 1-13/16″ spindle
Feeding motor: 3 HP with inverter
Elevation motor: 1/2 HP
Feeding speed: 20 – 80 FPM
Width: 10mm – 230mm (3/8″ – 9-1/2″)
Thickness: 8mm – 170mm (5/16″ – 6-1/2″)
Minimum length: 27″ Single-piece feed
Infeed table length: 60″
The table is hard chrome plated
The table is hard chrome plated
(2) Powered bed rollers
(1 set) Moulder heads (Included)
Horizontal: (2) 5″ x 9″; 4 wing, 1-13/16″ heads
Vertical: (2) 5″ x 4″; 4 wing, 1-13/16″ heads
Horizontal: (2) 5″ x 9″; 4 wing, 1-13/16″ heads
Vertical: (2) 5″ x 4″; 4 wing, 1-13/16″ heads
Dust collection: (5) 125mm (5″) dust ports requiring
681 CFM @ each point of extraction
Gross weight: 7,380 lbs.
Gross weight: 7,900 lbs.
Machine dimensions: (L) 120″ x (W) 77″ x (H) 74″
Packing dimensions: (L) 140″ x (W) 82″ x (H) 93″
(1) Toolbox
Warranty is one-year parts
All machines are tested at the factory prior to shipment providing trouble-free start-up.
Reverse Motor = Feed Motor
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 180/90 Amps
Configuration = 4 Head
Spindle Arrang. = Bottom Right Left Top
1st Spindle = 7.5 HP, 6,000RPM, 1-13/16″
2nd Spindle = 15 HP (Shared), 6,000RPM, 1-13/16″
3rd Spindle = 15 HP (Shared) , 6,000RPM, 1-13/16″
4th Spindle = 7.5 HP, 6,000RPM, 1-13/16″

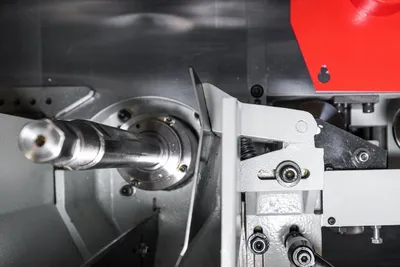

Spindle Diam. = 1-13/16”
Spindle RPM = 6000 Rpm
Under Nut Cap. = Horiz. 9-7/8” Vert. 7”
Feed Hp. = 7.5 Hp.
Feed System = Synchronized gearbox feed sys
Drive System = Inverter controlled 7.5HP feed
Feed Speed = 30 – 120 FPM
Variable Speed = Inverter Controlled
Reverse Feed = Yes
Elevation Hp. = 1/2 Hp.
Elevation Style = Up/Down Switch
Elevation Sys. = Jack Screw / Gib System
Total Hp. = 43 Hp.

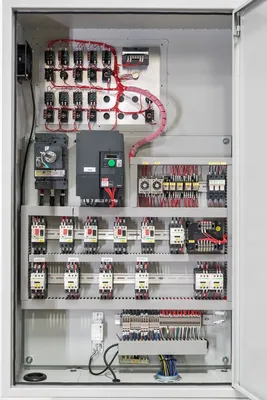

Electronics = UL Approved Components
Dual Voltage = 208/300 Volt
Control Voltage = 110 Volt
Pass-Line = 35”
Min. Length = 27” Single Piece
Min. Width = 3/8”
Max. Width = 9-1/2”
Min. Thickness = 3/8”
Max. Thickness = 6-1/2”
Roller Type = Steel / Rubber

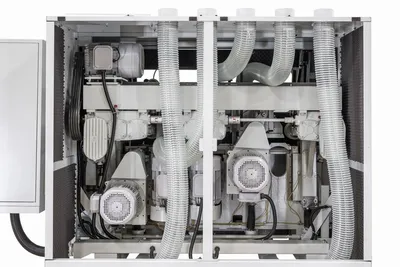

Dust Collection = (5) 5” @ 3405 CFM Total
Digital Display = Feed

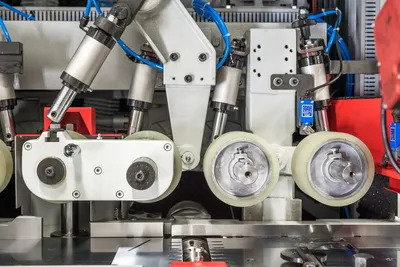

Powered Rollers = (12) 2” x 5-5/8”
Idle Rollers = (2) 1” x 5-5/8”
Pressure Shoes = (1) 7-1/8” X 8-3/4”
Hold Down Style = Pressure Shoes/Rubber Rollers
Emergency Stop = (2) Push Button
Guarding = Full Cabinet Enclosure
Grease Manifold = Remote Grease Manifold
Oiler = Auto Oiler
Fence Type = Adjustable Fence
Fence Dims. = 1” x 60”
Frame Const. = Cast/Steel Construction
Worktable Dims. = 10-3/4” x 117”

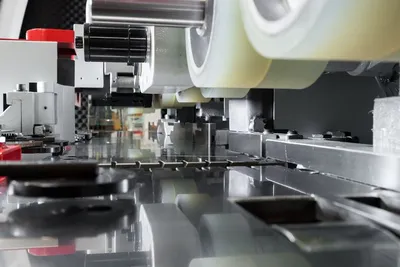

Chrome Bed = .004” Chrome Plated Bed
Noise Bed Fing. = Noise Reduction
Measure Meth. = Siko Counter
Decible Rating = 64 dB
Net Weight = 7380 Lbs.
Gross Weight = 7880 Lbs.
Machine Dims. = 120” x 82” x 92-1/2”
Packaging Dims = 140” x 82” x 92-1/2”
