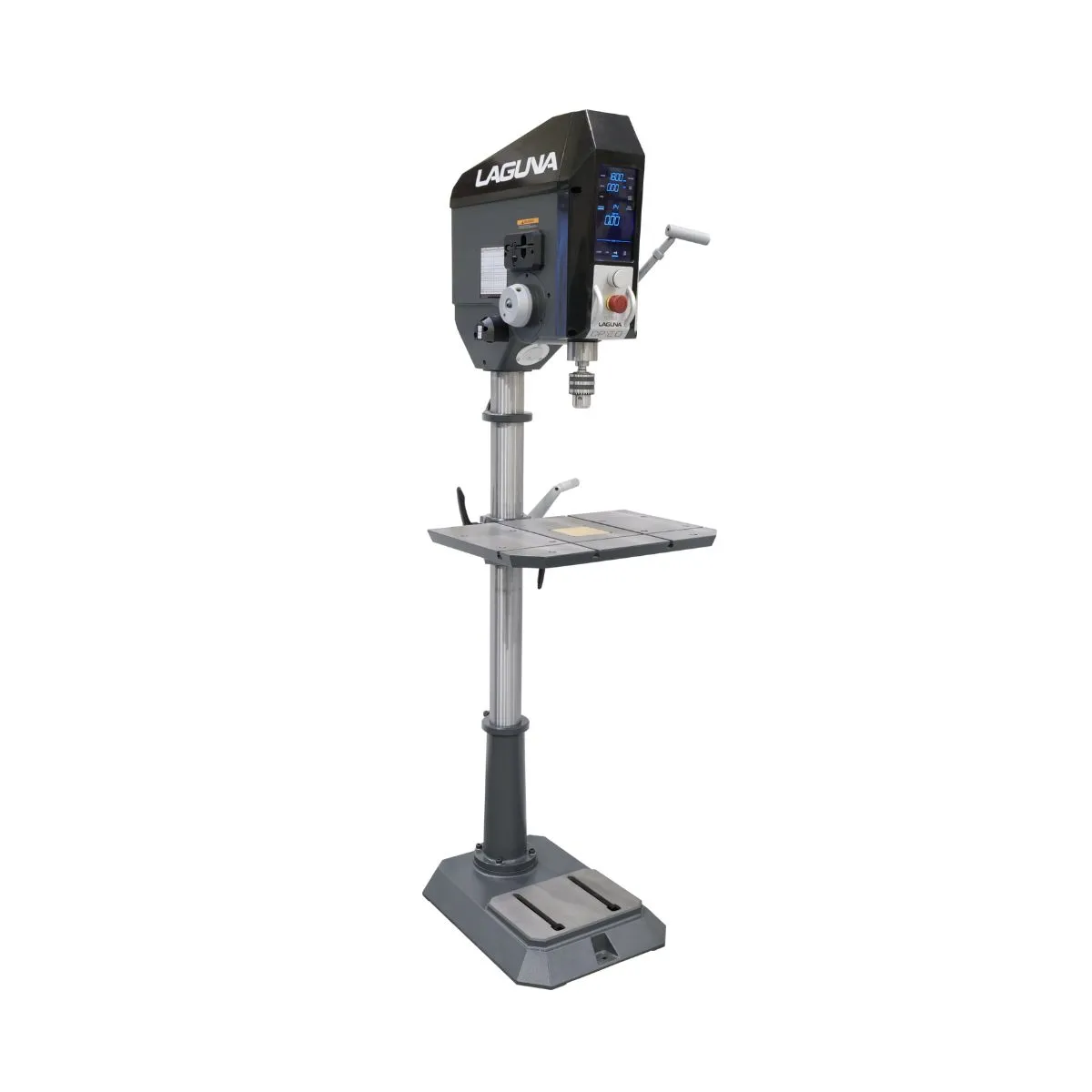

Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Key Features:
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
1.5 hp PWM Motor: Constant torque with forward and reverse functions.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
DC Brushed
PWM (Pulse Width Modulation)
1.5 HP
15 AMP
110-120 volt
60 Hz
Electronic Variable 60 – 3600 RPM Forward / Reverse
Poly-groove drive belt
LCD Touch Screen Smart Panel
22.83″ x 16.92″
3.15″ (80 mm)
Net wt 304 lbs. (138 kg)
Gross wt 326 lbs. (148 kg)
72.5″ x 28.5″ x 20″
1840 x 725 x 406mm
5 Memory Settings
20″ (1830 mm)
MT2
6″ Travel – 2.6″ Diameter
5/64 – 5/8″ (2 – 16 mm)
15″ x 22″
3 T-slots
10 Clamp Holes
+/- 90 Degree Tilt
360 Degree Swivel around column
30″ Max
49.5″ Max
Work clamps for T-slot
Quick clamps for Clamp Holes
Bolt-on Work Lamps
