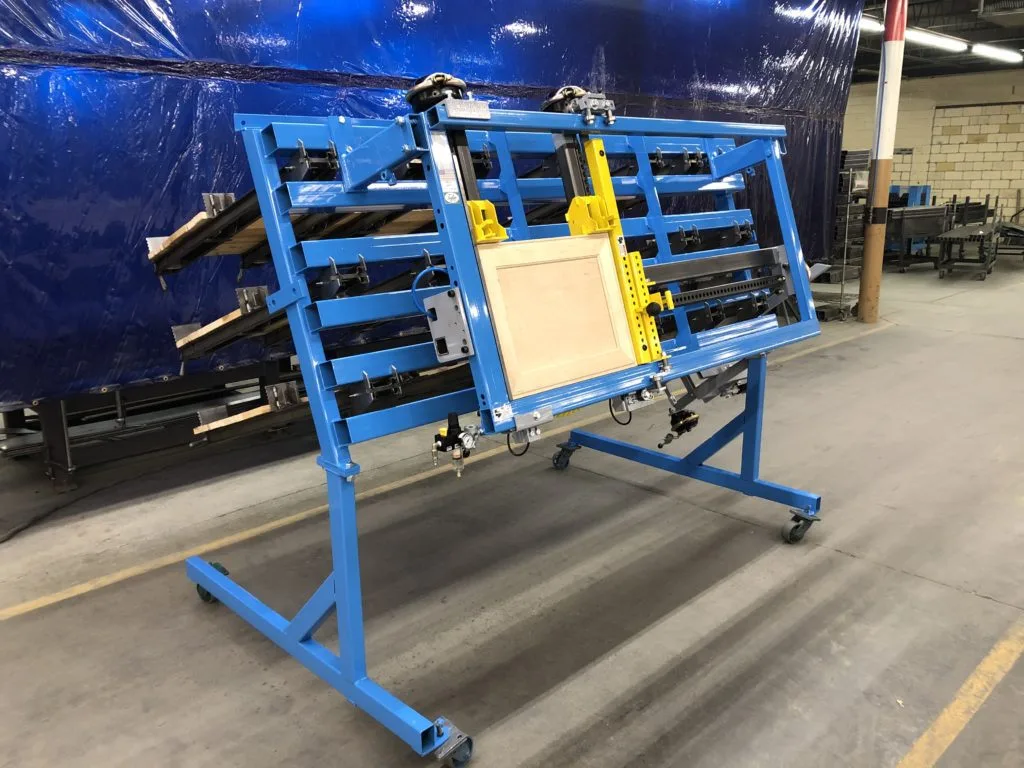

JLT #718A-M3-12-M 12′ Miter Buddy System Door & Panel Clamp

Features:

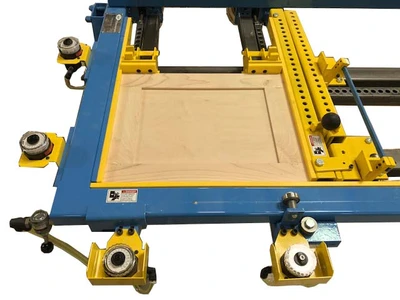

#717A-M Miter Door Clamp Side:
26″ x 62″ Maximum capacity.
Minimum 9″ Clamping Capacity.
Includes (2) Vertical Clamps & (2) Horizontal Clamps.
Each clamp includes the JLT Dial Control System for fine adjustments, which is simple and easy to use.
This innovative Dial Control System allows for adjustments in BOTH directions while the door is under clamping pressure
Precise and Accurate Squaring for both Miter and Stile & Rail Cabinet Doors
Precisely Clamp and Square MDF or HDF Doors too!!
Easy to use, Single Lever Operation.
Fast Changeovers
15 Degree Working Angle

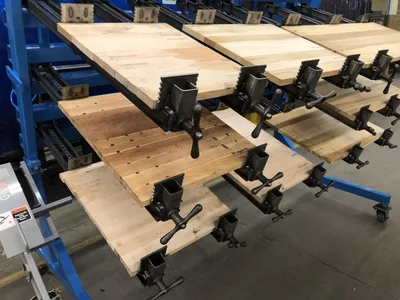

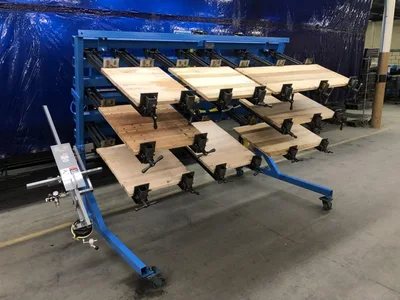

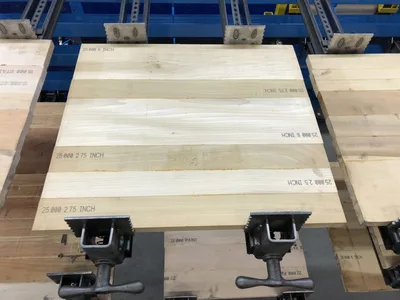

#79F-12-PC Panel Clamp Side:
(5) total gluing levels
Includes (30) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available on Request)
Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use
Taylor’s Patented and Successful Clamp Arm Design
Versatility to Edge Glue Hundreds of Woodworking Components
100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels

Machine Footprint: 145″L x 70″H x 64″W
