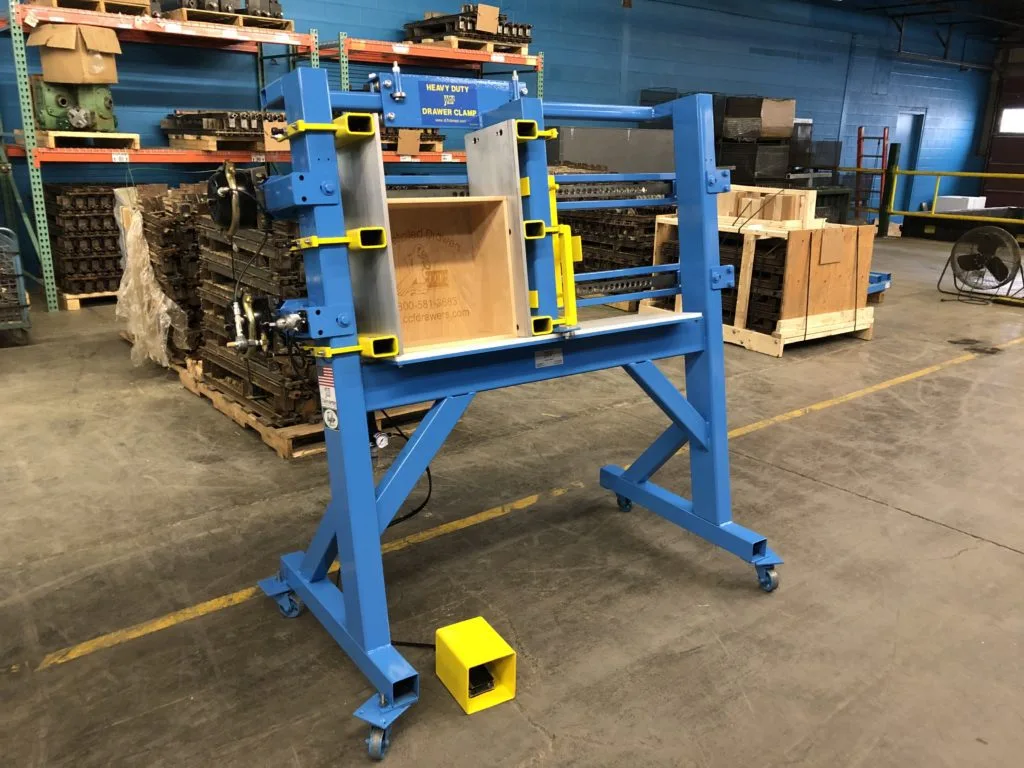

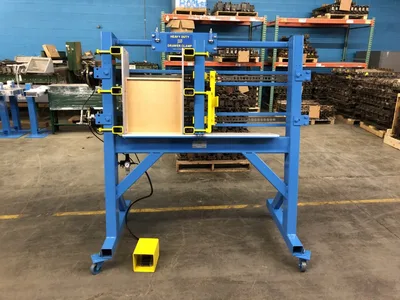

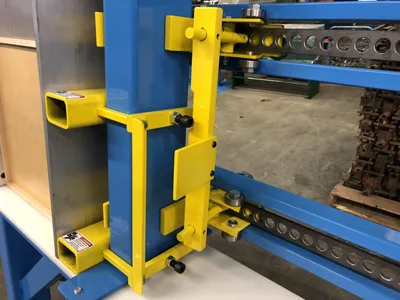

JLT #190B-M4-48 Heavy Duty Drawer Clamp – 12″ X 24″ X 48″

Features:
(2) Standard Machine Frames
10″ x 24″ x 36″ Maximum Capacity
12″ x 24″ x 48″ Maximum Capacity (price is for this version)
Easy to Use and Intuitive Air System
Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers
Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.
The JLT Heavy Duty Drawer Clamp is Designed to Clamp and Square all Doweled and Dovetail Drawer Construction Types. Our Design is Heavy Duty, Sturdy, Intuitive to Use, and Built to Last. It has Precise Squaring Capabilities with ample Clamping Pressure for your Boxes. A Quick Adjusting Roller Carriage Eliminated Setup Times when moving from Size to Size, and our Fast Acting Pneumatic System will Clamp and Square the Drawer in (2) Seconds.
Machine Footprint: 70″L x 60″H x 85″W

100% Welded Tubular Steel Frame
Includes (3) Sets of Tubular Steel Pressure Shoes and Aluminum Side Plates for a Strong and Flat Clamping Surface
Easy to Use and Intuitive Air System
Instant On / Off Pneumatic Foot Pedal Operation
Lever Valve to Lock Air System On for Solid Wood Doweled Drawer Boxes that Need Time to Cure
Side Mounted Lever Valve can be Used as a Secondary Pneumatic Control Station
Instant On / Off Pneumatic Foot Pedal Operation
Lever Valve to Lock Air System On for Solid Wood Doweled Drawer Boxes that Need Time to Cure
Side Mounted Lever Valve can be Used as a Secondary Pneumatic Control Station

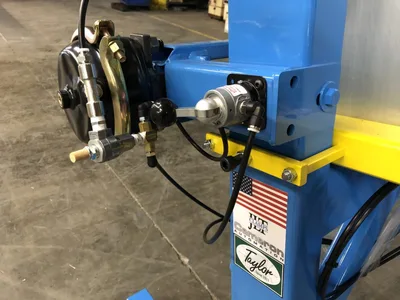

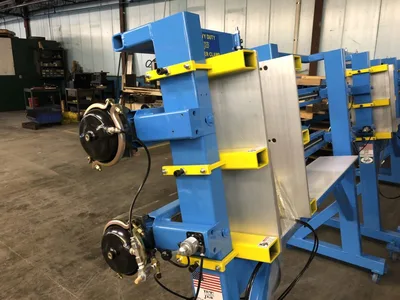

Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.
Produce up to 3000# of clamping force at 100 psi (each)
Produce up to 3000# of clamping force at 100 psi (each)

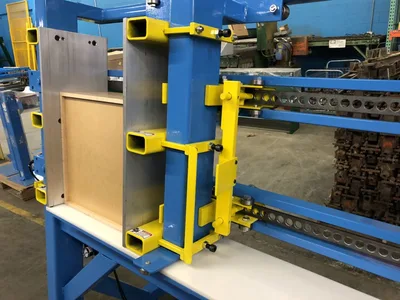

Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers
One Hand Carriage Adjusting with Vertical Rod and Handle Grip
One Hand Carriage Adjusting with Vertical Rod and Handle Grip

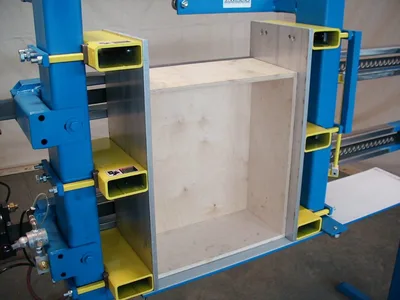

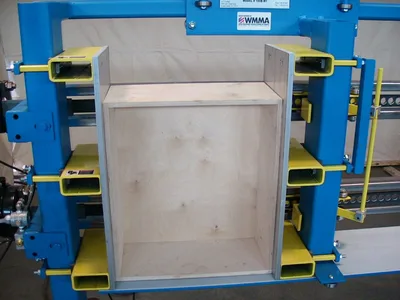

Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
