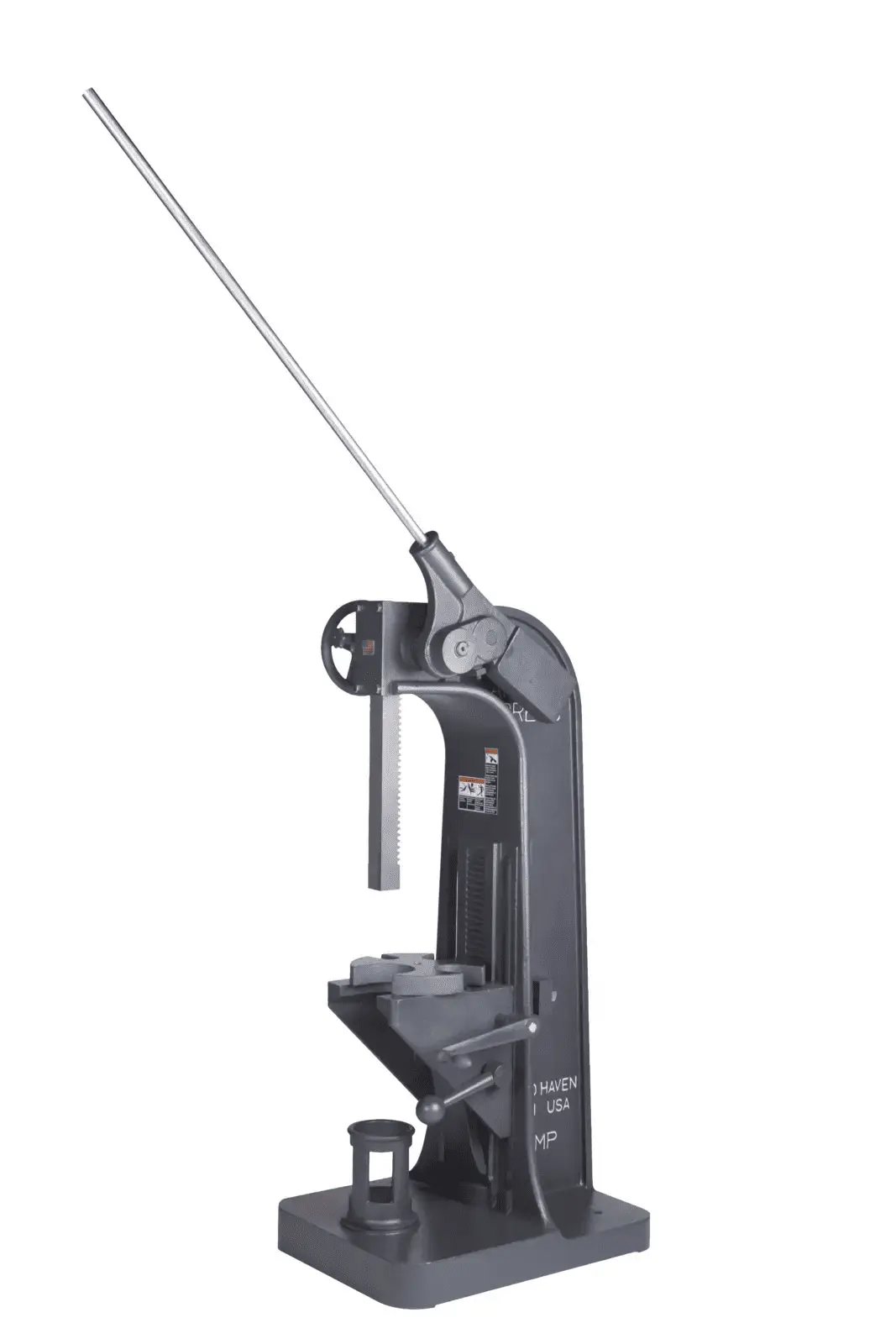

Dake Model 4M Ratchet-Lever 5Ton 10” Throat Floor-Model Arbor Press 902006

Floor model 5 ton arbor press with hand-operated brake.
Leverage: 55:1
Max Diameter Work: 20”
Largest Arbor: 5¼”
Capacity Over Table: 26”
Floor model 5 ton arbor press with hand-operated brake.
Leverage: 55:1
Max Diameter Work: 20”
Largest Arbor: 5¼”
Capacity Over Table: 26”

Ratchet device permits lever to be used in most convenient position
Counterweight returns lever quickly after downstroke
Handwheel advanced ram to work quickly
Floor Model
Cast Iron Base
Handwheel
Ram
Notched Table Plate
Counter Weight
Capacity: 5 Tons
Leverage: 55:1
Ram Size: 2” x 2” x 23”
Max Diameter Work: 20”
Throat: 10”
Largest Arbor: 5¼”
Capacity Over Table: 26”
Capacity Over Table Plate: 24½”
Base Length: 21½”
Base Width: 29”
Height: 58”
Weight: 1,045 lbs
