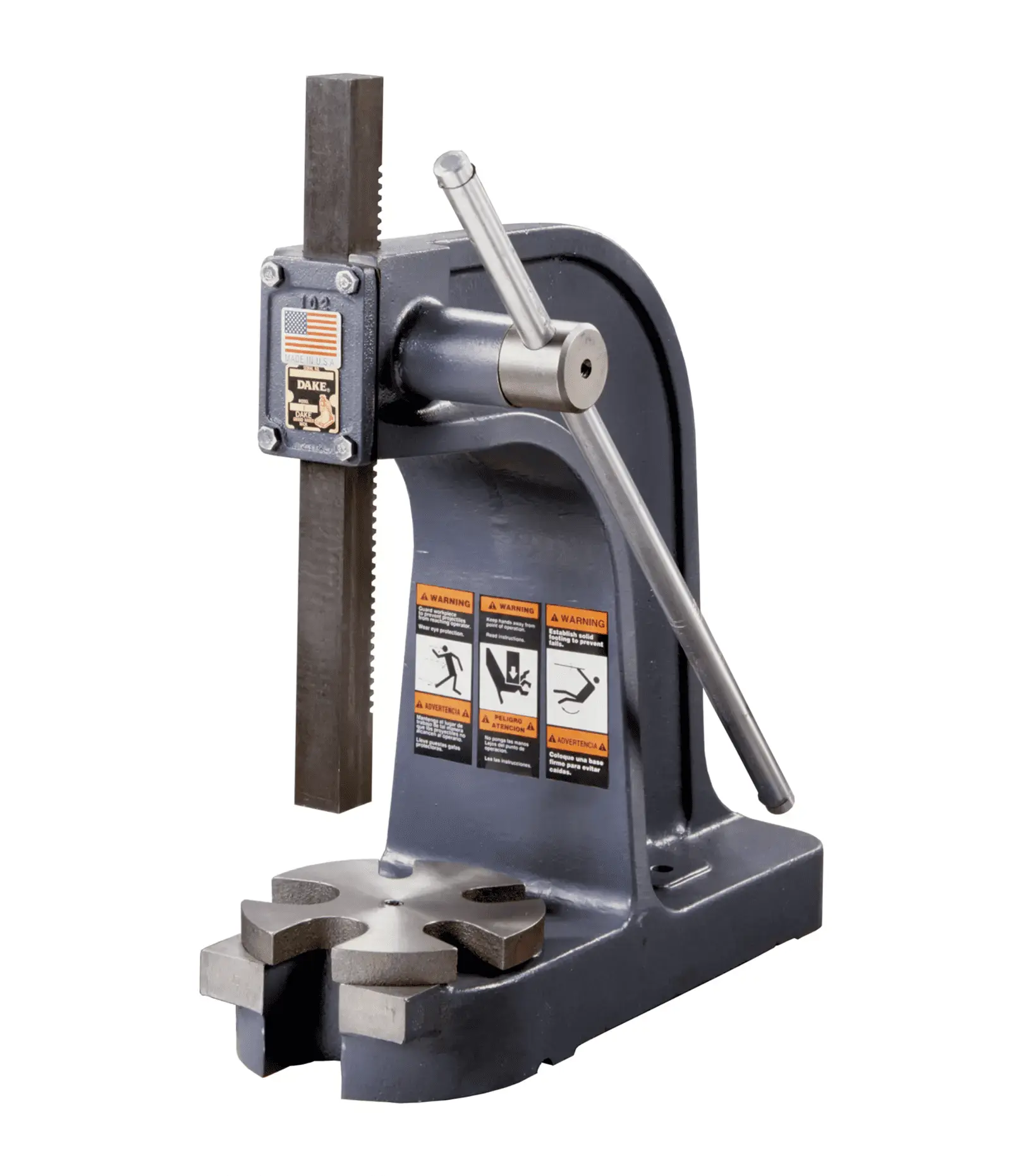

Dake Model 1 Single-Leverage 3Ton 7” Throat Arbor Press 901006
Overview
The most heavy duty arbor press in our single leverage line, this 3 ton press features a slotted table plate and base opening. Add an optional pedestal to make this machine a favorite in your shop.
Leverage Ratio: 36:1
Max Diameter Work: 14”
Largest Arbor: 2”
Max Ram to Table: 11½”
The most heavy duty arbor press in our single leverage line, this 3 ton press features a slotted table plate and base opening. Add an optional pedestal to make this machine a favorite in your shop.
Leverage Ratio: 36:1
Max Diameter Work: 14”
Largest Arbor: 2”
Max Ram to Table: 11½”
Specs
Shimmed ram cap permits take-up for potential wear
Smooth action gears permit finite ram control
Friction brake
Adjustable handle allows convenient handle positioning
Base opening and slotted table plate for arbor work
Cast Iron Base
Ram
Slotted Table Plate
Adjustable Handle
Capacity: 3 Tons
Leverage Ratio: 36:1
Ram Size: 1¼” x 1¼” x 16½”
Max Diameter Work: 14”
Throat: 7”
Largest Arbor: 2”
Max Ram to Table: 11½”
Min Ram to Table: 10¾”
Capacity Over Table: 11½”
Capacity Over Table Plate: 10¾”
Base Length: 18”
Base Width: 7¼”
Height: 19”
Weight: 130 lbs
Pedestal (901007)
