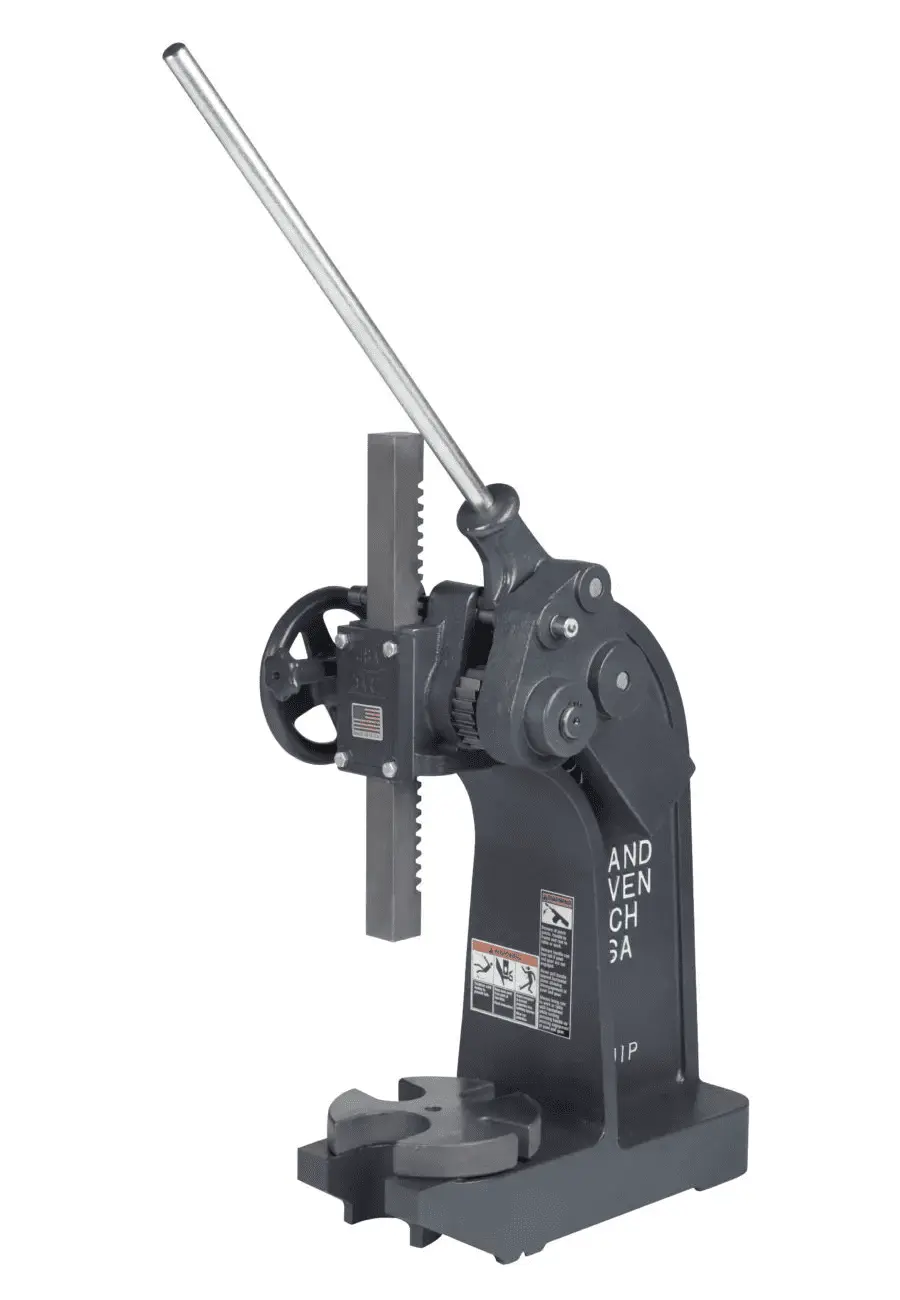

Dake Model 2 Compound-Leverage 6 Ton 7-¾” Throat Bench-Model Arbor Press 903004
Overview
This 6 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
Leverage Ratio: 66:1
Largest Arbor: 3”
Max Ram to Table: 15”
Min Ram to Table: 13¾”
This 6 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
Leverage Ratio: 66:1
Largest Arbor: 3”
Max Ram to Table: 15”
Min Ram to Table: 13¾”
Specs
Compound leverage mechanism allows greater pressure application with minimum effort
Sliding pin easily converts press from compound to single leverage
Cast Iron Frame
Handwheel
Ram
Notched Table Plate
Counterweight
Capacity: 6 Tons
Leverage Ratio: 66:1
Ram Size: 1½” x 1½” x 19”
Max Diameter Work: 15½”
Throat: 7¾”
Largest Arbor: 3”
Max Ram to Table: 15”
Min Ram to Table: 13¾”
Base Length: 8¼”
Base Width: 20”
Height: 26”
Weight: 260 lbs
Pedestal (903002)
