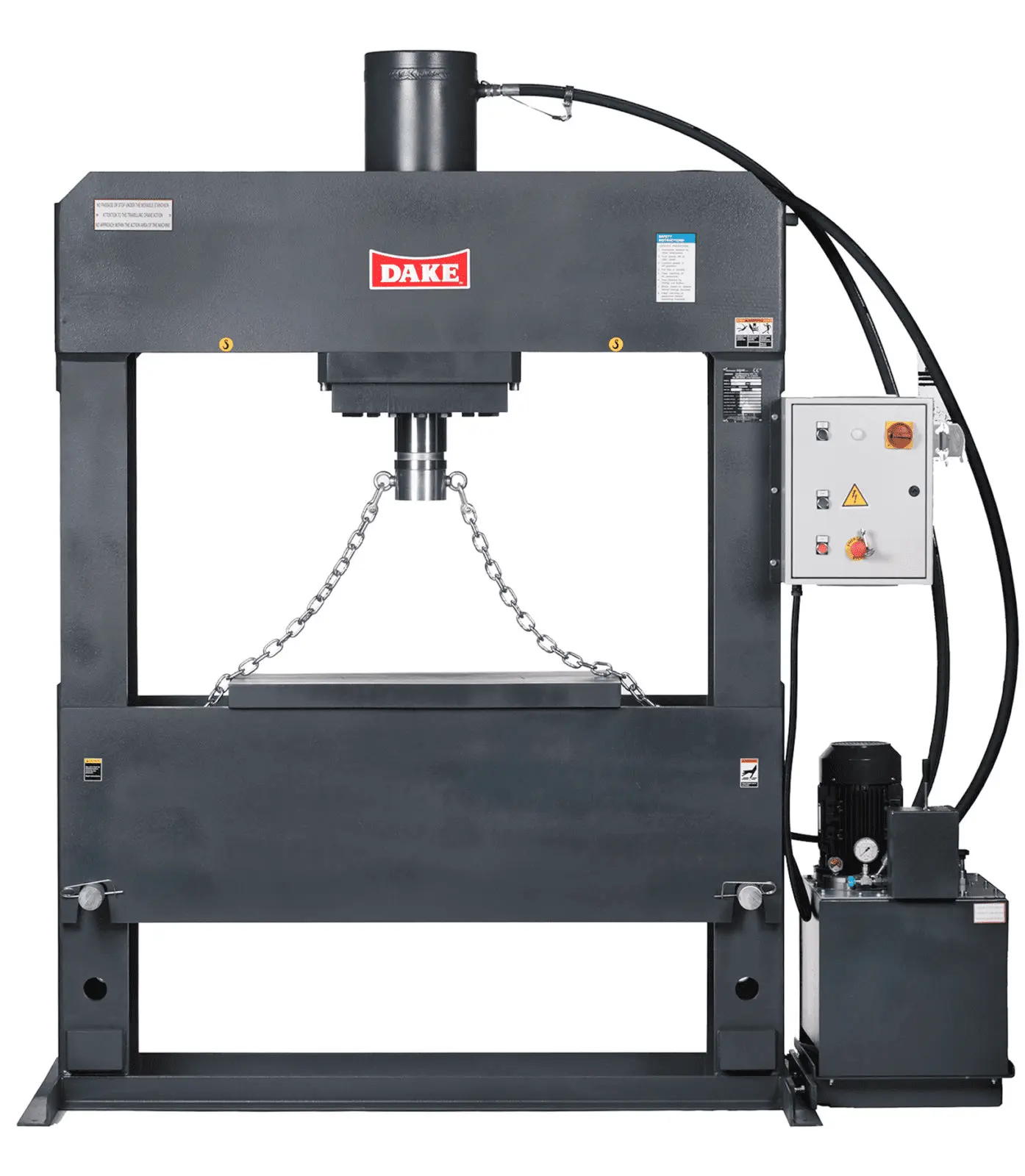

Dake Force 200 H-Frame 220V Three Phase Double-Acting 200Ton Hydraulic Dura-Press 972017
Overview
200 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.
Width Between Uprights: 59”
Ram Travel: 19”
Ram Advance Speed: 47 in/min
Pressing Speed: 7 in/min
200 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.
Specs
Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
Welded heavy steel plate frame for greater rigidity
4HP submerged motor drives three centrifugal pumps for quiet, steady oil flow
All electrical controls are low voltage (24V)
Preset and factory-sealed relief valve to prevent exceeding pressure capacity
Ram has lifting eyes that attach a chain to hydraulically move the table
Smooth, responsive control valve
Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made
Frame
2 Steel Table Plates
Lifting Chain
Work-head
Pressure Gauge
Safety Relief Valve
Capacity: 200 Tons
Operation: Electric
Horsepower: 4HP
Width Between Uprights: 59”
Width Between Table Channels: 14”
Min Ram to Table: 9”
Max Ram to Table: 35”
Ram Travel: 19”
Ram Advance Speed: 47 in/min
Pressing Speed: 7 in/min
Electrical Requirements: 220V Three Phase
Footprint: 103” x 48”
Height: 114”
Weight: 8,467 lbs
