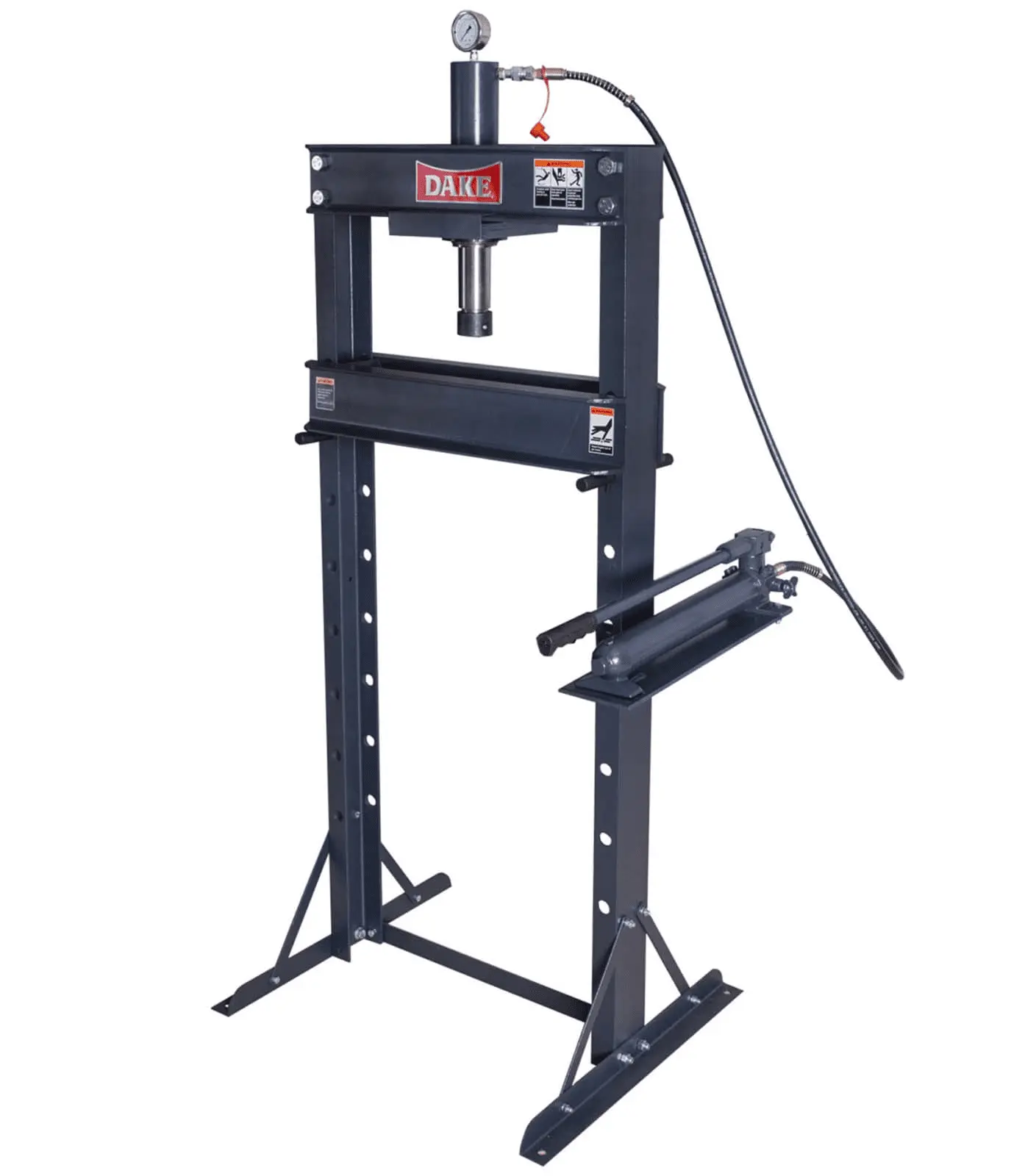

Dake F-20 H-Frame Hand-Operated 20Ton Utility Hydraulic Press 972220
Overview
Description
Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-10 model is a 10 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.
Width Between Uprights: 22”
Max Ram to Table: 39”
Ram Travel: 8”
Ram Advance Speed: 3/16” per stroke
Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-10 model is a 10 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.
Width Between Uprights: 22”
Max Ram to Table: 39”
Ram Travel: 8”
Ram Advance Speed: 3/16” per stroke
Specifications
Heavy steel channel frame and table
Long 8” stroke
Self-contained fast, efficient two speed hand operated pump conveniently located
Traversing head L/R for off center pressing applications
Removable nose piece to allow for custom nose piece installation
Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
Comes complete with table plates, gauge, and owner’s manual
Steel Channel and Frame
Traversing Head
Removable Nose Piece
Table Plates
Gauge
Step Nose Piece
Capacity: 20 Tons
Operation: Manual
Width Between Uprights: 22”
Width Between Table Channels: 4”
Min Ram to Table: 4”
Max Ram to Table: 39”
Ram Travel: 8”
Horizontal Workhead Travel: Left/Right of Center
Ram Advance Speed: 3/16” per stroke
Footprint: 34” x 26”
Height: 70”
Weight: 283 lbs
