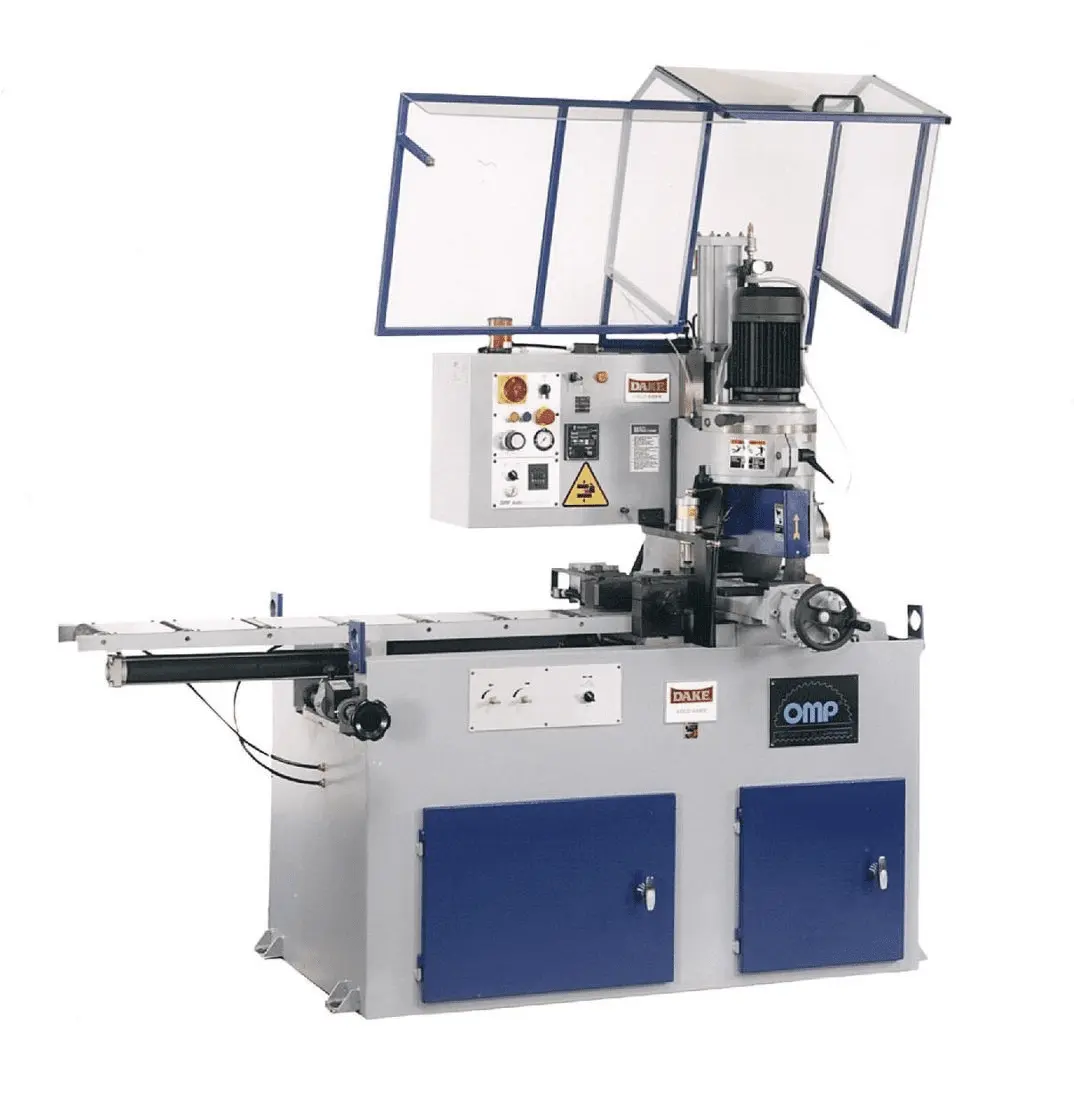

Dake Model 370PP-L 220V Three Phase 14½” Euromatic Automatic Non-Ferrous Cold Saw 976210

The 370PP-L Non-Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates, a head that rotates 45º right of center.
Max Vise Opening: 8¼”
Max Angle: 45° Left
Speeds: 1500/3000 rpm
Work Height: 35”
The 370PP-L Non-Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates, a head that rotates 45º right of center.
Max Vise Opening: 8¼”
Max Angle: 45° Left
Speeds: 1500/3000 rpm
Work Height: 35”

Head rotates 45° right of center for miter cutting
Table features two removable surface wear plates to support longer cut lengths
Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
Minimum 6” remnant drop piece size for maximum material use
Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
Manual oiler to lubricate 1” thick, hardened ways
3.5/4.5 HP motor has the muscle to drive a 14½” or 12” blade quickly and quietly through solids
Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
Swap cutting head to gain non-ferrous/ferrous option on same saw
Blade
Coolant
Saw blade selector calculator
Tools kit for changing blades
Instruction and service manual
Cutting Ability: Non-Ferrous/Plastic
Max Blade Diameter: 14½”
Max Vise Opening: 8¼”
Max Feed Vise Opening: 6½”
Max Angle: 45° Left
Slotting: No
Speeds: 1500/3000 rpm
Work Height: 35”
Electrical Requirements: 220V Three Phase 3.5HP
Machine Dims: 83” x 54” x 90”
Approx Weight: 1,716 lbs
Solid Round
90°: 4”
45°: 3-5/8”
90°: 4”
45°: 3-5/8”
Tube
90°: 5-1/16”
45°: 5”
90°: 5-1/16”
45°: 5”
Square
90°: 4”
45°: 3-7/8”
90°: 4”
45°: 3-7/8”
Rectangle
90°: 4” x 7”
45°: 4” x 6”
90°: 4” x 7”
45°: 4” x 6”
440V unit available (please contact a sales rep for more info)
440V External Transformer
575V Transformer
Ferrous Cutting Head (300128)
Non-Ferrous Cutting Head (79917)
Unloading Table (301645)
