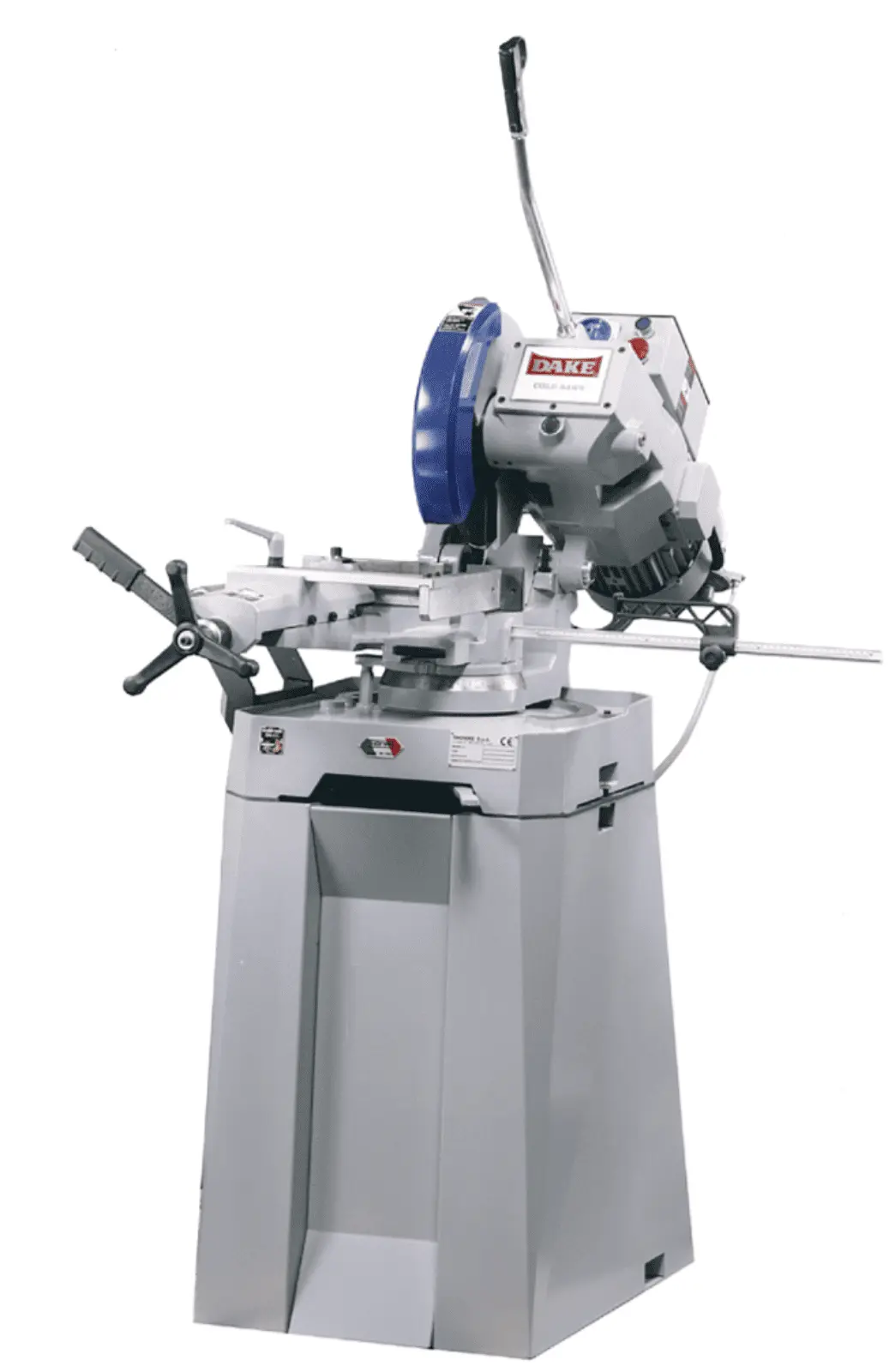

Dake Super 350CE 220V Three Phase 14” Manual Cold Saw with Slot Cutting Capability 974029
Overview
Description
Manual cold saw that will rotate to 90º right for slot cutting and offers variable speeds. Heavy-duty low production variable speed saw, comes with one standard HSS blade. A mechanical coolant pump with flow control is included. Available in 220V or 440V operation.
Max Vise Opening: 6-5/8”
Max Angle: 45° Left/Right; 90° Right for Slot Cutting
Speeds: 22-88 rpm
Work Height: 40”
Manual cold saw that will rotate to 90º right for slot cutting and offers variable speeds. Heavy-duty low production variable speed saw, comes with one standard HSS blade. A mechanical coolant pump with flow control is included. Available in 220V or 440V operation.
Max Vise Opening: 6-5/8”
Max Angle: 45° Left/Right; 90° Right for Slot Cutting
Speeds: 22-88 rpm
Work Height: 40”
Specifications
Head rotates 45° right and left of center for mitering
Dependable oversized spindle and gear assembly with steel spindle and bronze gear
Reliable mechanical coolant pump with flow control adjustment
Vise is gib adjustable with cam lever action for quick secure clamping
Additional ball bearing support of hardened and ground spindle shaft to prevent failure
E-Stop, low voltage protection, and thermal overload protection
90° rotation for slot cutting operations
Blade
Pedestal Base
Tool Kit
Coolant
Adjustable Positive Stop
Cutting Ability: Ferrous/Non-Ferrous/Plastics
Max Blade Diameter: 14”
Max Vise Opening: 6-5/8”
Max Angle: 45° Left/Right; 90° Right for Slot Cutting
Slotting: Yes
Speeds: 22-88 rpm
Work Height: 40”
Electrical Requirements: 220V Three Phase 3.5HP
Machine Dims: 24¾” x 23” x 75”
Approx. Weight: 650 lbs
Solid Round
90°: 3-3/8”
45°: 3”
90°: 3-3/8”
45°: 3”
Tube
90°: 4¾”
45°: 4”
90°: 4¾”
45°: 4”
Square
90°: 4-1/8”
45°: 3-3/8”
90°: 4-1/8”
45°: 3-3/8”
Rectangle
90°: 6¼” x 3½”
45°: 3-3/8” x 2¾”
90°: 6¼” x 3½”
45°: 3-3/8” x 2¾”
440V unit available (please contact a sales rep for more info)
Pneumatic Vise
Blade Starter Pack, Three 14” Blades
78” Loading Table (301644)
78” Unloading Table (301645)
