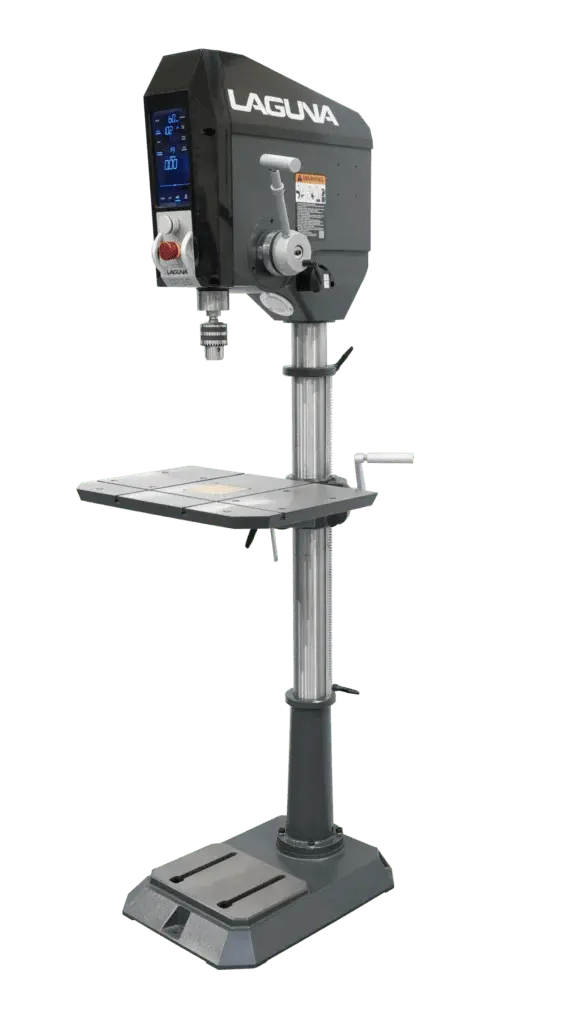

Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Key Features:
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
1.5 hp PWM Motor: Constant torque with forward and reverse functions.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Key Features:
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
1.5 hp PWM Motor: Constant torque with forward and reverse functions.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
1.5 hp PWM Motor: Constant torque with forward and reverse functions.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
Advanced Safety Features: Chuck key holder with a sensor that locks out Auto-Start function during bit changes.
Customizable Memory Settings: Five programmable speed and depth settings.
Extended Quill Travel: 6 inches of precise drilling capacity.
Versatile Worktable: Large 15” x 22” cast iron table tilts up to 90 degrees left and right, rotates 360 degrees, with T-slots and 10 clamping holes.
High-Output LED Work Light: Onboard 5W LED for optimal visibility.
Crosshair Lasers: Ensures precise material positioning.
Modern Design: Sleek aesthetic from headstock to table control handles.
User-Selectable Screen Increments: Displays in Fractional Inch, Decimal Inch, or Decimal Millimeter.
Cross Hair Laser Material Positioning
6′ Power Cord
Audible Button Confirmation Tone
DC Brushed
PWM (Pulse Width Modulation)
1.5 HP
15 AMP
110-120 volt
60 Hz
Electronic Variable 60 – 3600 RPM Forward / Reverse
Poly-groove drive belt
LCD Touch Screen Smart Panel
22.83″ x 16.92″
3.15″ (80 mm)
Net wt 304 lbs. (138 kg)
Gross wt 326 lbs. (148 kg)
72.5″ x 28.5″ x 20″
1840 x 725 x 406mm
5 Memory Settings
20″ (1830 mm)
MT2
6″ Travel – 2.6″ Diameter
5/64 – 5/8″ (2 – 16 mm)
15″ x 22″
3 T-slots
10 Clamp Holes
+/- 90 Degree Tilt
360 Degree Swivel around column
30″ Max
49.5″ Max
Work clamps for T-slot
Quick clamps for Clamp Holes
Bolt-on Work Lamps
