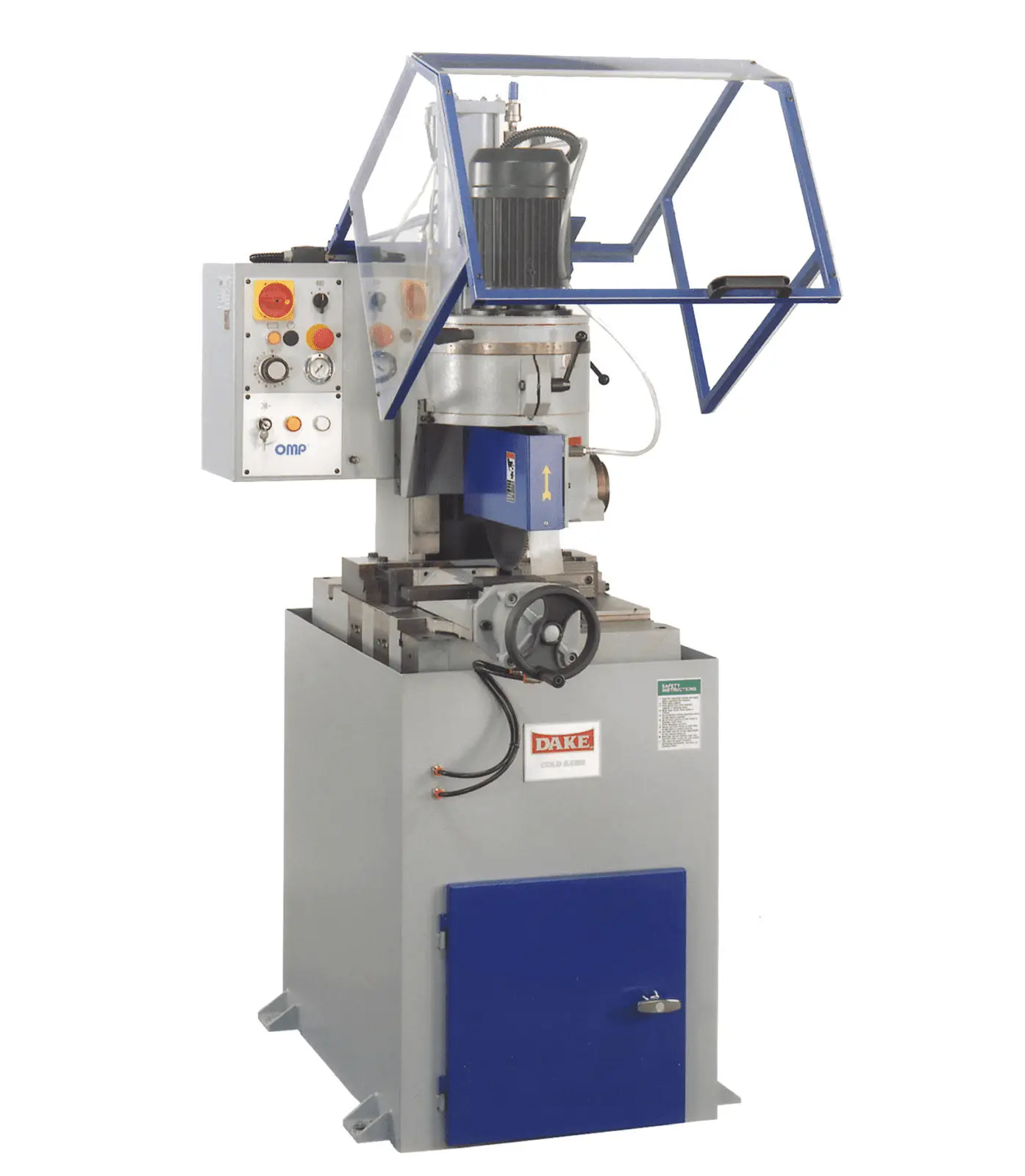

Dake Model 370S-L 220V Three Phase 14½” Euromatic Semi-Automatic Non-Ferrous Cold Saw 976202-2

Semi-automatic non-ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45º, three gib guides, and a manual oiler.
Max Vise Opening: 8¾”
Max Angle: 45° Left
Speeds: 1.500/3,000 rpm
Work Height: 35”
Semi-automatic non-ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45º, three gib guides, and a manual oiler.
Max Vise Opening: 8¾”
Max Angle: 45° Left
Speeds: 1.500/3,000 rpm
Work Height: 35”

Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
Manual oiler to lubricate 1” thick, hardened vertical ways
3.5/4.5 HP motor has the muscle to drive a 14½” or 12” blade quickly and quietly through solids
Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
Table features two removable surface wear plates to support longer cut lengths
Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
Swap cutting head to gain non-ferrous/ferrous option on same saw
Ability to add a programmable feed system to make fully automatic with wide range of capabilities
Blade
Coolant
Saw blade selector calculator
Tools kit for changing blades
Instruction and service manual
Adjustale positive stop
Cutting Ability: Non-Ferrous/Plastic
Max Blade Diameter: 14½”
Max Vise Opening: 8¾”
Max Angle: 45° Left
Slotting: No
Speeds: 1.500/3,000 rpm
Work Height: 35”
Electrical Requirements: 220V Three Phase 3.5HP
Machine Dims: 28” x 39” x 73”
Approx Weight: 1,360 lbs
Solid Round
90°: 4¼”
45°: 3-5/8”
90°: 4¼”
45°: 3-5/8”
Tube
90°: 5-1/16”
45°: 5”
90°: 5-1/16”
45°: 5”
Square
90°: 4¼”
45°: 3-7/8”
90°: 4¼”
45°: 3-7/8”
Rectangle
90°: 4” x 7”
45°: 4” x 6”
90°: 4” x 7”
45°: 4” x 6”
440V unit available (please contact a sales rep for more info)
Ferrous Cutting Head (300128)
Non-Ferrous Cutting Head (79917)
Loading Table (301644)
Unloading Table (301645)
Second Main Vice (300196)
Mist Kit (77178)
