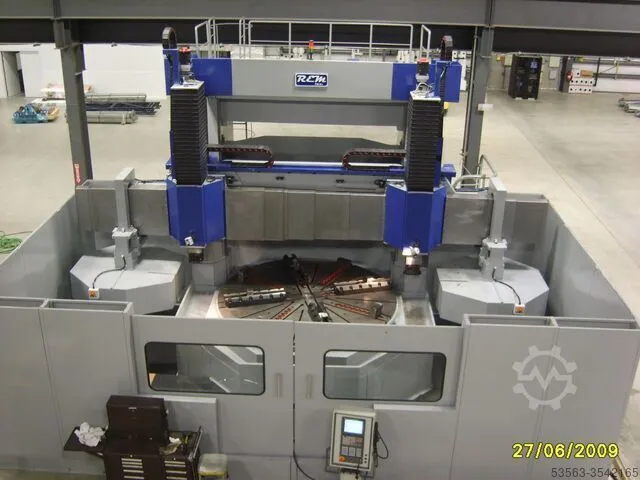

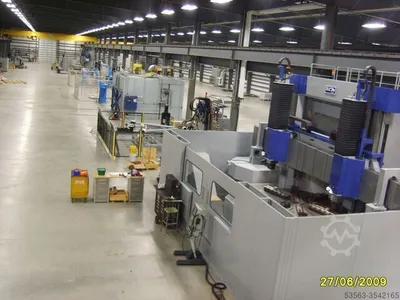

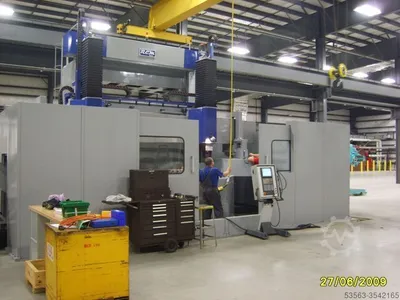

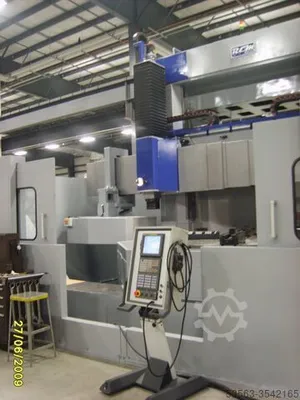

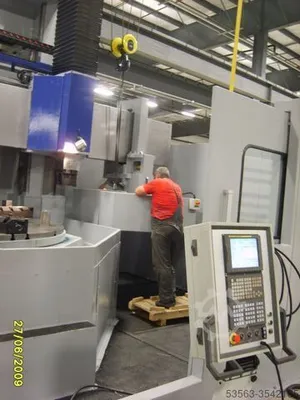

NEW 2016 REM SC 33 CNC 2MS

Technical data:

1. Capacities
- Maximum turning diameter with either Vertical Head 3300 mm
- Maximum machining height under Cross Rail, at least 2000 mm
- Maximum weight of the workpiece 20 tons

2. Table
- Table diameter 3000 mm
- Speed (inf. Variable) 1- 110 RPM
- Main motor drive (AC) 100 KW
- 4 jaw chuck with reversible jaws

3. Vertical Heads

- Straight Ram vertical travel (250X250 mm cross section) 1300 mm
- Horizontal and Vertical travel by means of 10 mm pitch ball screws

4. Cross Rail
- Vertical Travel 2000 mm
- Cross Rail elevating motor 7.5 KW AC

5. Feeds
- Feed ranges 0.1 – 5 mm/rev
- Rapid traverse feed 8000 mm/min

6. Overall Sizes
- Dimensions (approx.) L x W x H 6600 x 5.300 x 5.400 mm
- Weight (approximate) 60 tons

GEOMETRICAL TESTS (ISO 3655, ISO 230-1; VDI 3441 and ISO 230-2)
Positioning accuracy
-X and Z axes mm +/-0,015/1000
Positioning repeatability
-X and Z axes mm 0,010

CNC Fanuc
