NEW 2009 REM SC 33 CNC 1S MS 3H
Overview
Description

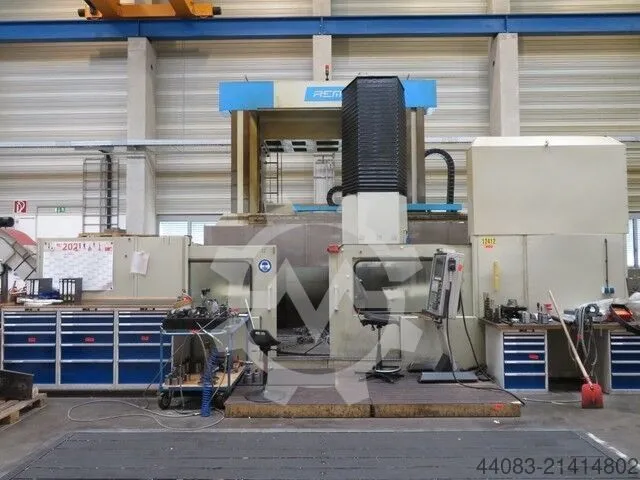

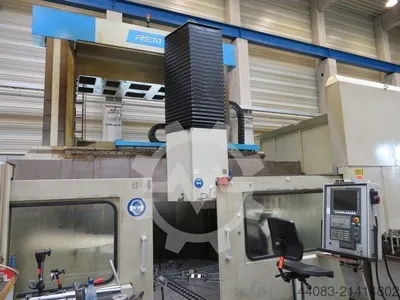

2009 REM Vertical Turning Lathe SC33 CNC 1S MS 3H, Double Column, FANUC CNC 32-0i
Our machines power some of the most demanding industries—aerospace, energy, forging, and heavy manufacturing. Whether you’re looking for new equipment, modernization services, or complete factory relocations, REM delivers fast, reliable solutions with European craftsmanship.
Our services include:
High-performance machine tool manufacturing
Machine retrofitting & modernizations
Industrial relocation & installation services
Specifications
| Table Dia | 118.1" | 2,999.7 mm |
|---|---|---|
| Swing | 129.92" | 3,300 mm |
| Work Ht-U/R | 129.92" | 3,300 mm |
| Power | 74 hp | 55.2 kW |
| RPM | 100 RPM | 100 RPM |
| Control | CNC (FANUC 320i) | CNC (FANUC 320i) |
| Dimensions | 299.1"H x 203.2"L x 354.3"W | 299.1"H x 203.2"L x 354.3"W |
| Weight | 89 Tons | 89 Tons |

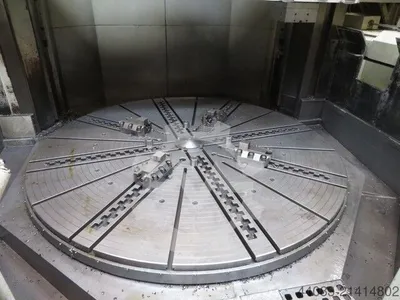

Faceplate diameter 3000 mm 118.1"
Swing diameter 3500 mm 137.8"
Turning height 3200 mm 125.9"

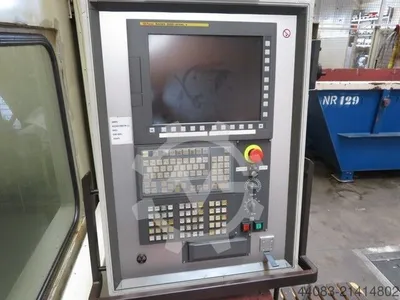

Control Fanuc 32 0i Model A
Slide adjustment 1750 mm 68.9"
Ram head dimension 300x300 mm 11.8" x 11.8"
X-axis 2700 mm 106.5"
Table load 30000 kg 66,000 lbs
Main drive motor 100 kW 134 HP
Tool changer 16 Stations
Weight of the machine ca. 89 Tons
Dimensions of the machine 299.1"H x 203.2"L x 354.3"W
