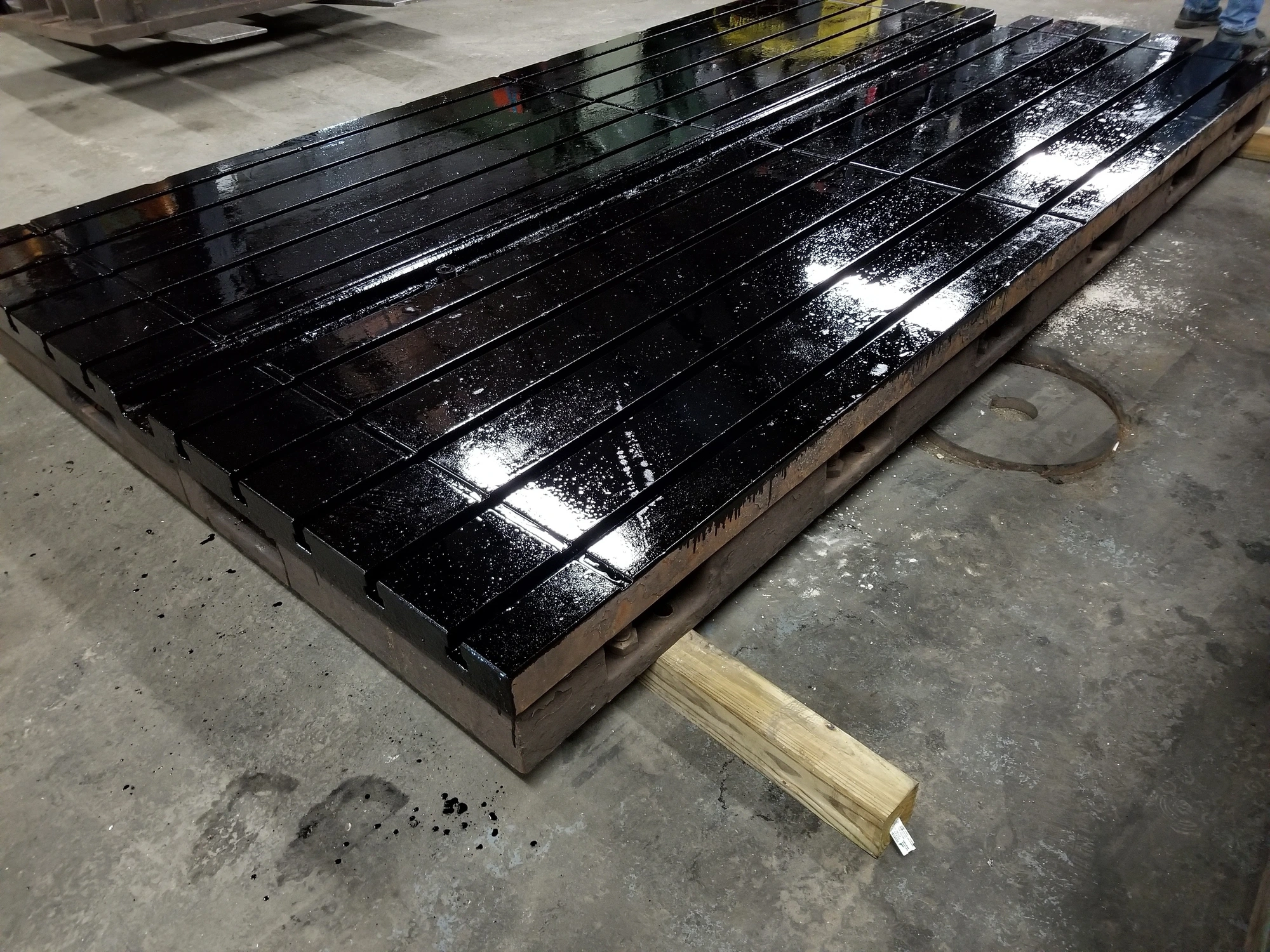

USED FLOOR PLATES USED T-SLOTTED TABLE 84"W X 148-1/2"L X 9"H

T-SLOTTED TABLE 84" WIDE X 148-1/2" LONG X 9" HIGH

(10) T-SLOTS 1-1/16" WIDE, 7" ON CENTER

(3) 1" WIDE KEYWAY SLOTS PERPENDICULAR TO THE T-SLOTS (ONE ON EACH END OF THE TABLE 9" ON CENTER AND ONE IN THE MIDDLE OF THE TABLE 74-1/4" ON CENTER FROM EITHER END)

6" WIDE X 2" DEEP SLOT IN THE MIDDLE OF THE TABLE WITH (4) 1-1/4" DIAMETER LEVELING SCREWS AND (3) 1-1/8" DIAMETER THROUGH HOLES

(6) POCKETS ON EACH SIDE OF THE TABLE AND (2) POCKETS ON ONE END OF THE TABLE WITH
1-1/4" DIAMETER LEVELING SCREWS AND 1-1/8" DIAMETER THROUGH HOLES, THE OTHER END OF THE TABLE HAS A 4" WIDE X 3-1/2" HIGH LEDGE
