NEW 2026 REM SCR 22 1SH
Overview
Description

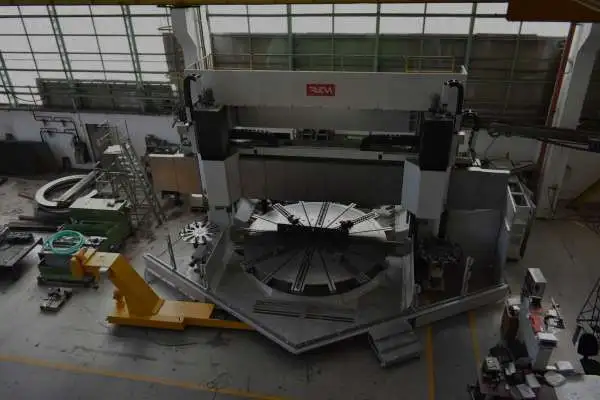

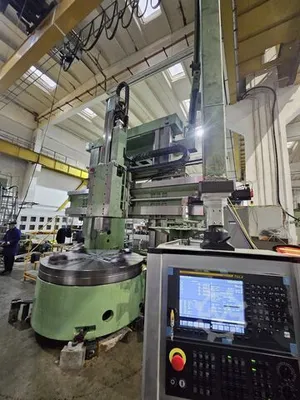

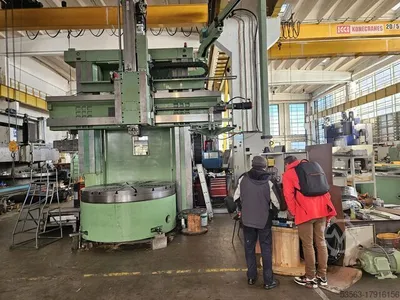

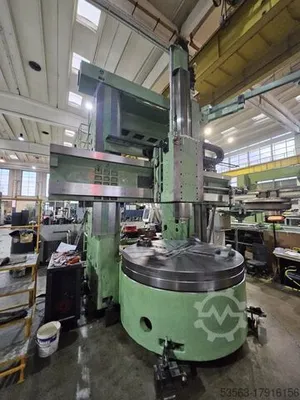

2026 REM Vertical Turning Lathe Model REM SCR 22 1SH, CNC
Our machines power some of the most demanding industries—aerospace, energy, forging, and heavy manufacturing. Whether you’re looking for new equipment, modernization services, or complete factory relocations, REM delivers fast, reliable solutions with European craftsmanship.
Our services include:
High-performance machine tool manufacturing
Machine retrofitting & modernizations
Industrial relocation & installation services
Specifications
| Table Dia | 78.7" | 1,999 mm |
|---|---|---|
| Swing | 86.61" | 2,199.9 mm |
| Work Ht-U/R | 63" | 1,600.2 mm |
| Power | 73.8 hp | 55 kW |
| RPM | 143 RPM | 143 RPM |
| Dimensions | 255.5"H x 275.6"L x 236.2W | 255.5"H x 275.6"L x 236.2W |
| Weight | 26,400 lbs | 26,400 lbs |
Condition NEW
Operating hours 5 h
Functionality Fully functional
Workpiece weight (max.) 12,000 kg 26,400 lbs
Travel distance X-axis 1,900 mm 74.8"
Travel distance Z-axis 1,400 mm 55.1
Spindle motor power 100,000 W 134 HP
Spindle speed (min.) 60 rpm 60 rpm
Rapid traverse X-axis 8 m/min
Rapid traverse Z-axis 8 m/min
Turnng diameter over cross slide 2,200 mm 86.6"
Turning diameter 2,200 mm 86.6"
Total Height 2,000mm 78.7"
Feed Rate X-axis 8 m/min
Load Capacity (Timken Tapered Roller Bearing) 12,000kg 26,000 lbs
Vertical Travel of Ram (Z Axis) 1,250 mm 49.21"
Section of Ram 250mm x 250mm 9.8" x 9.8"
Feeds(Cutting, X/Z axis infinitely variable) 1/6,000
Rapid Feed in X and Z axis 1/7500
Live Spindle (milling & boring) ISO 50
Spindle Rotation Speed 2,500 rpm
Live tool AC motor 25 HP
ATC Locations 12
Total Weight of Machine 34 Tons
