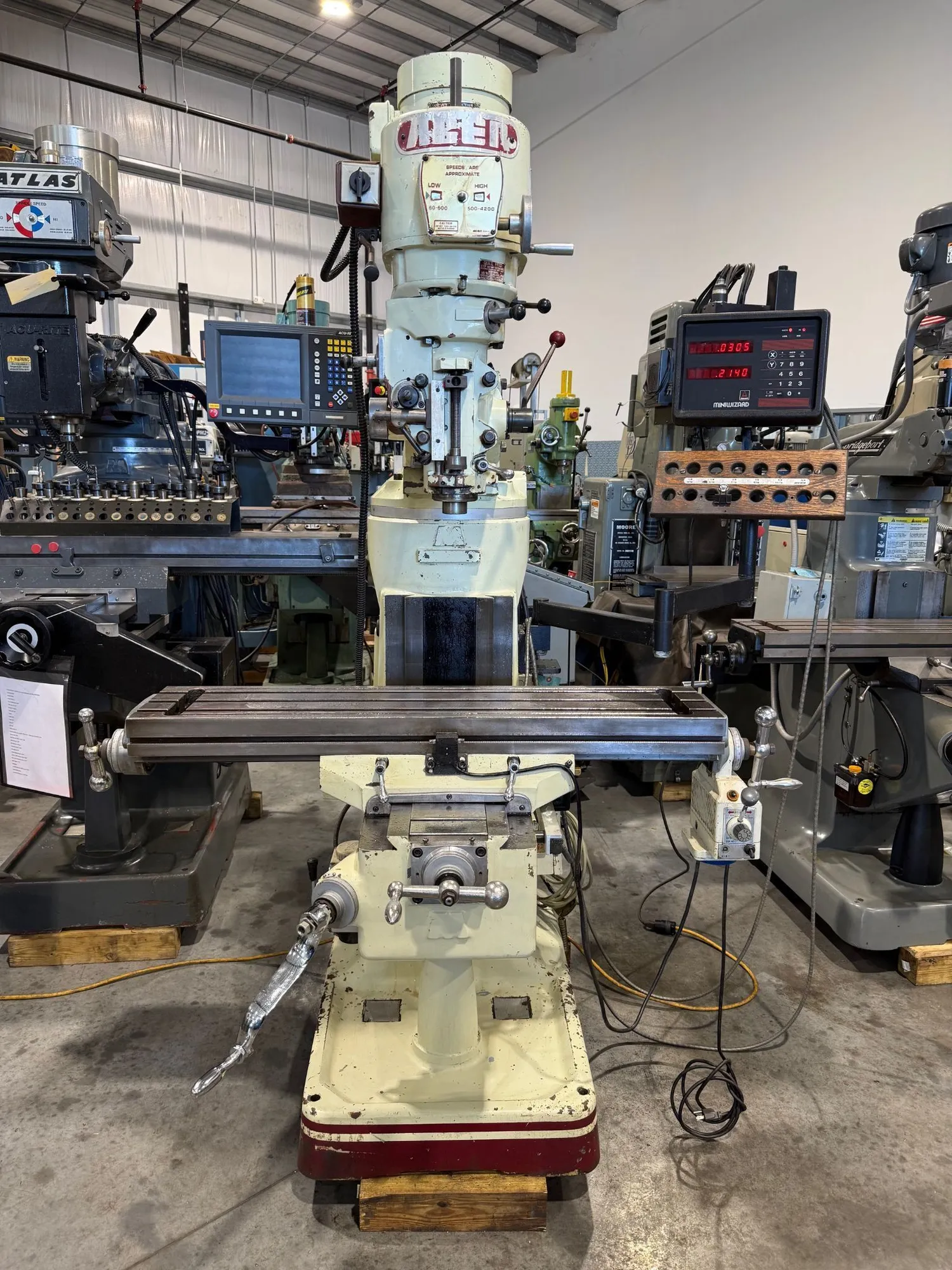

ACER 3VS Vertical Milling Machine 3HP DRO #8201
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Dimensions | 72” x 68” x 94” H | 72” x 68” x 94” H |
| Weight | 2,400 Lbs. | 2,400 Lbs. |
ACER 3VS Vertical Milling Machine 3HP DRO #8201
Reference #8201
Model # 3VS
Serial #9408600
Year of manufacture- 1994’
Table size- 9” x 42”
Longitudinal travel- 28”
Cross travel- 12”
Knee travel- 16”
Ram travel-12”
Quill travel- 5”
Head moves right & left- 90°
Head tilts front to back- 45°
Spindle speeds- 60 – 4,500 R.P.M.
Spindle taper- R-8
Quill feeds- (3) 0.0015”, 0.003”, 0.006”
Power feed on longitudinal
ANILAM 2 axis DRO digital Readout
3 H.P. spindle motor
Machine is wired for 220 volt / 2 phase / 60 HZ
Machine weight- 2,400 Lbs.
Machine dimensions- 72” x 68” x 94” H
Machine location- F.O.B. Sarasota, Florida
