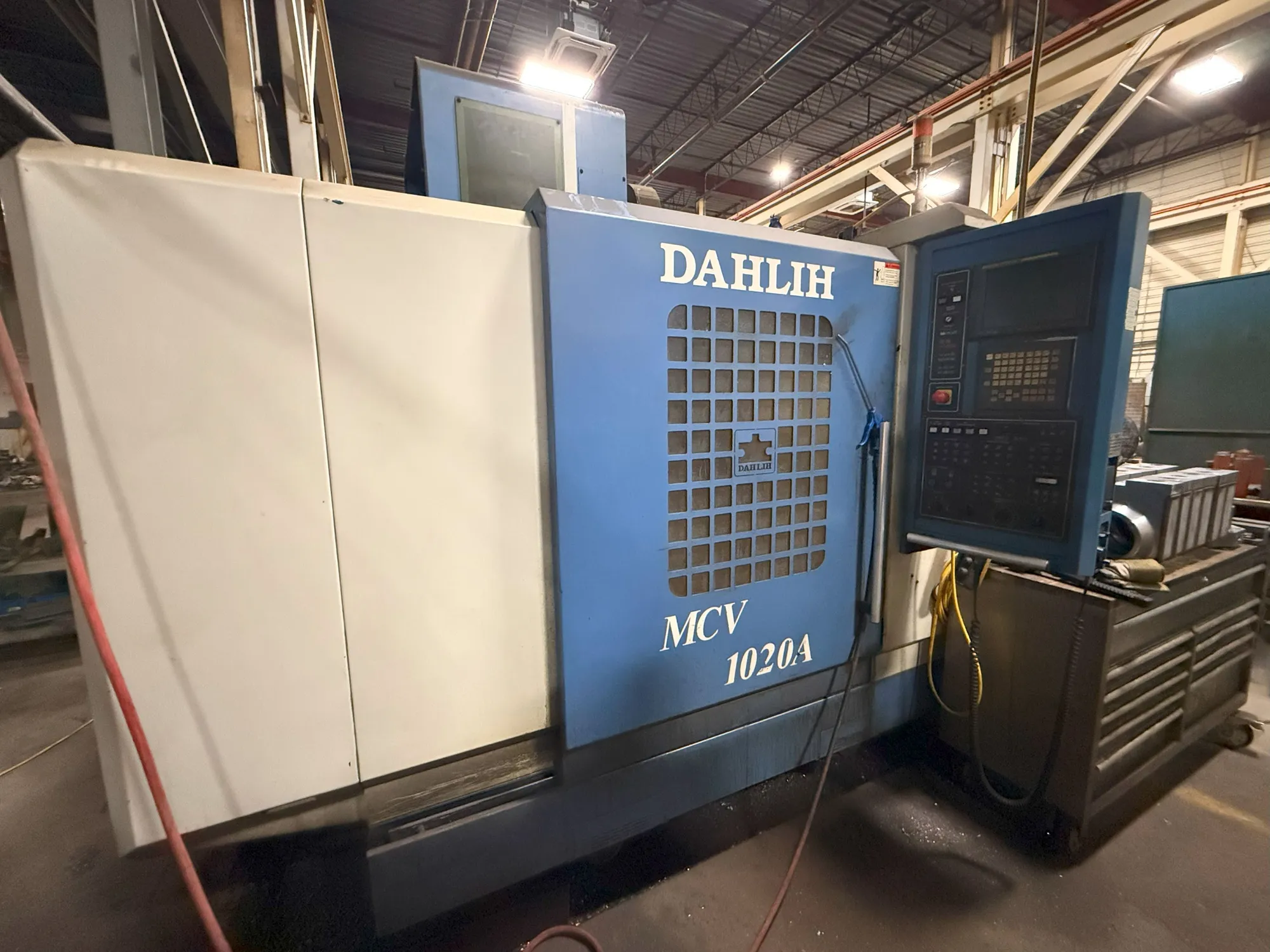

USED 2008 DAH LIH MCV-1020A

Dah Lih CNC Vertical Machining Center, Very Low Hours!
Model: MCV-1020A
Year: AUG 2008
Control: FANUC SERIES 21i MB
Working Surface: 1250mm X 660mm (49.21” X 29.98”)

Dah Lih CNC Vertical Machining Center, Very Low Hours!
Model: MCV-1020A
Year: AUG 2008
Control: FANUC SERIES 21i MB
Condition: Excellent!!
Location: Toronto-ON, Under power.
Technical Specifications (Subject to Verification)

Table
Working Surface 1250mm X 660mm (49.21” X 29.98”)
T-Slots (Size x Number) 18mm x 5 mm (0.71” X 5”)
Max. Table Load 1000 kg (2200 lbs)

Travels
Longitudinal Travel (X) 1020mm (40.16”)
Cross Travel (Y) 550 mm (21.65”)
Headstock Travel (Z) 560 mm (22.05”)
Distance between Spindle End and Tabletop 150 ~ 710 mm (5.91” ~ 27.95 “)
Distance Between Spindle Centers
and Column Surface 600 mm (23.62”)

Spindle
Spindle Nose CAT-50
Spindle speeds 5000 rpm
Spindle Speed Range Two gears variable

Feeds
Cutting Feed 5,000 mm (197”) per min
Rapid Traverse 20 / 20 / 18m / min (0.787/ 0.787/ 0.708 inch/min)
Minimum Input Increment 0.001”

ATC (Automatic Tool Changer)
Tool Holder CAT-50
Tool Storage Capacity 20
Max. Tool Dia. X Length Ø 90 mm 300 mm (3.54” X 11.81”)
Max. Tool Weight 13 lbs.

Electrics: 600V, 3 Phase, 60Hz.

Floor Space 3575 X 4000 (141” X 157”)
Net Weight 7000 kg (15400 Lbs.)
