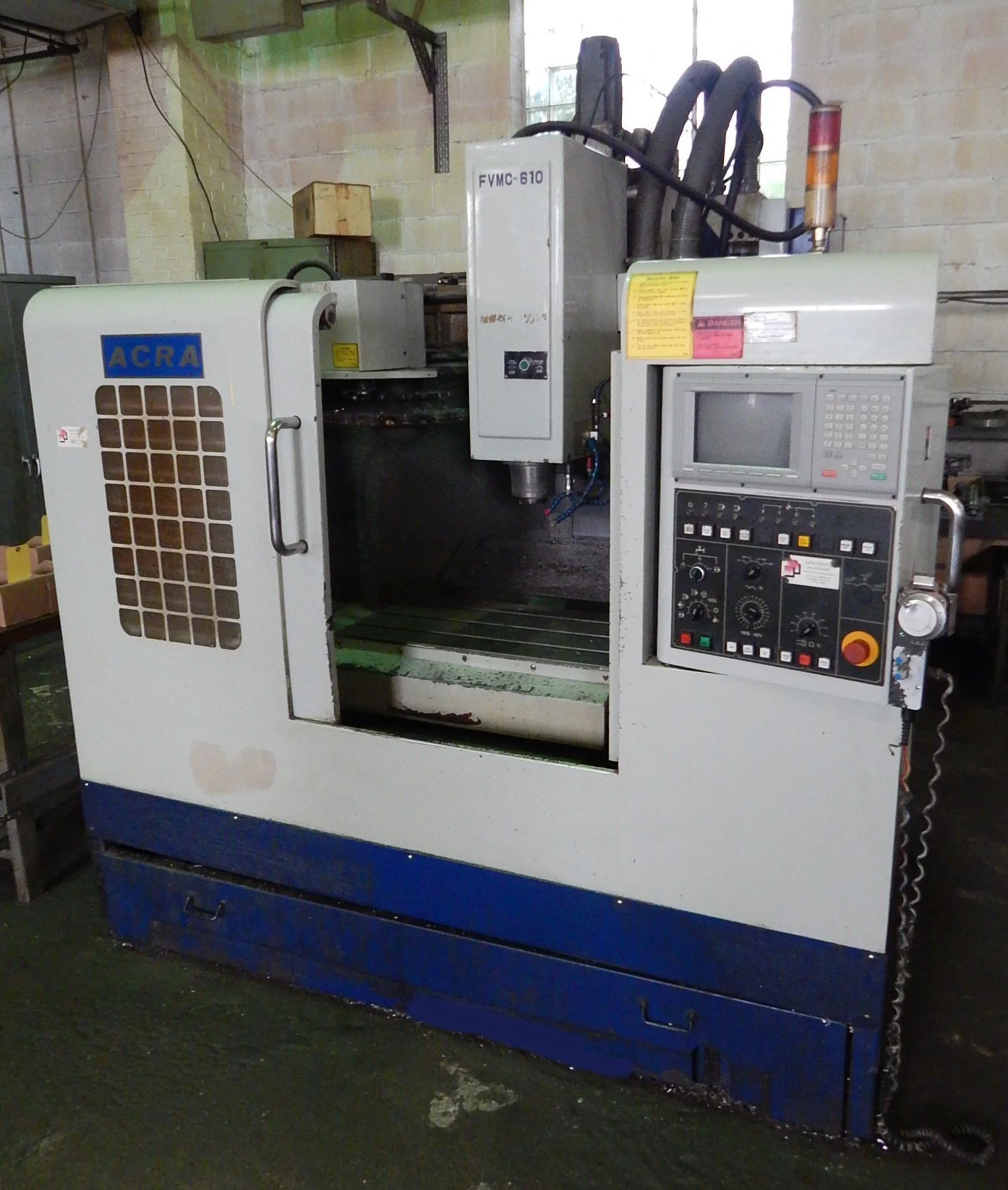

| X | 23.6" | 599.44 mm |
| Y | 18.9" | 480.06 mm |
| Z | 19.7" | 500.38 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | BT40 | BT40 |
| Table-W | 17.7" | 449.58 mm |
| Table-L | 31.5" | 800.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
Mitsubishi Meldas CNC Control
Full Enclosure 16 Tool Carousel
Rigid Box Ways Worklight
AC Digital Drives Pilot Lamp
Ribbed Castings Levelling Bolts and Pads
No Table Overhang Manuals, toolbox
TABLE: Overall Size 31.5" x 17.7"
T Slots (#/W/P) 3 / .02" / 4.9"
Max Table Load 660 lbs.
TRAVELS: X / Y / Z 23.6" x 18.9" x 19.7"
Spindle to Column 18.9"
Spindle to Table 5.9" - 25.6"
SPINDLE: Taper BT-40
Speed 8000 RPM
FEEDRATES: Rapid X, Y / Z 590 IPM/472 IPM
Cutting Feedrate 0.04 - 196 IPM
ACCURACIES: Positioning +-0.0002"/12"
Repeatability +-0.0001"
NOTE: These accuracies with full table load
ATC: No. of Tools 16
Type of Tool Changer Carousel
Max Tool Dia./Length 3.1"/9.8"
Max Tool Weight 15.4 lbs.
MOTORS: Spindle Motor (30 min) 10 Hp
Axes 1.3 Hp
Coolant 1.2 Hp
OVERVIEW: Net Weight 8,800 lbs.
Footprint 95"x94"x97"
Power 15 KVA
Air Required 80 PSI
*SPECIFICATIONS PER MANUFACTURER'S LITURATURE, MUST BE VERIFIED
**2 MACHINES AVAILABLE**
ALSO HAVE AVAILABLE AS AN OPTION :
GOLDER SUN MODEL#TNC200, SERIAL #982054,
4TH AXIS ROTARY TABLE, 8" CAPACITY WITH
T-SLOTTED FACE PLATE AND TAILSTOCK
