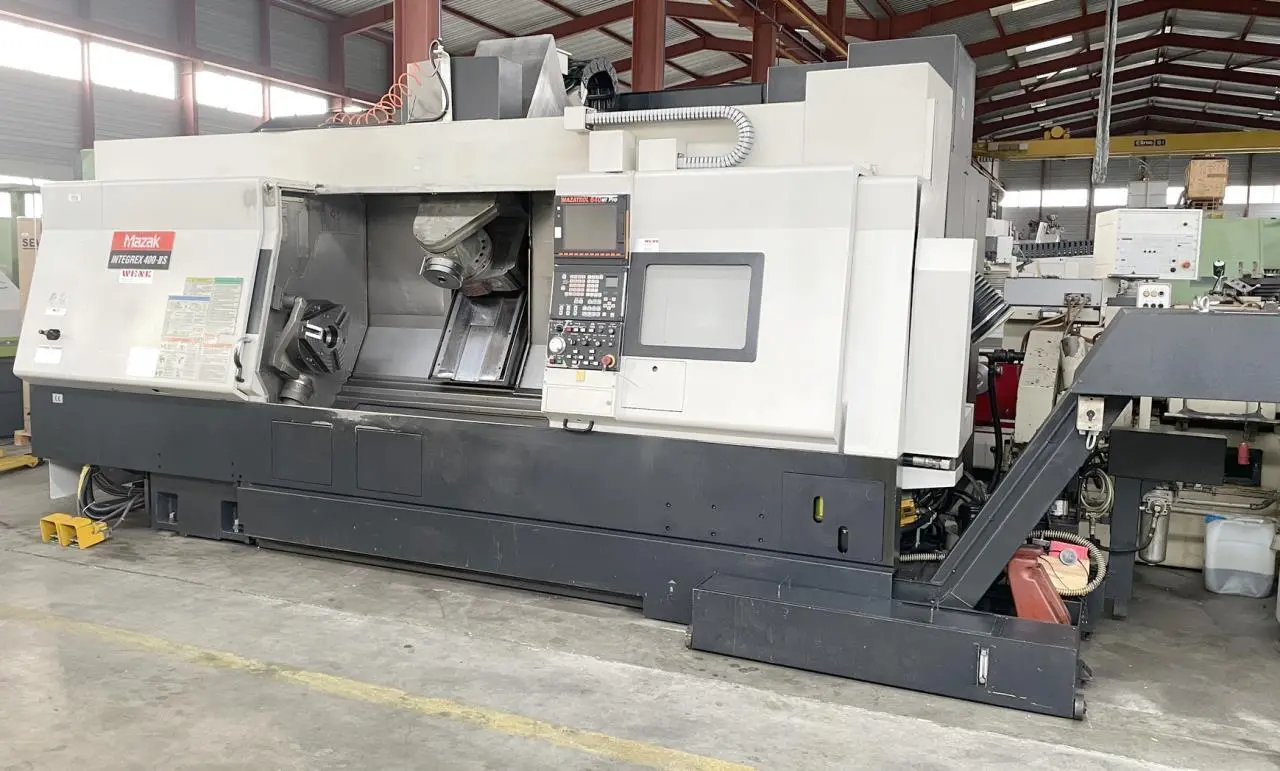

USED 2004 MAZAK INTEGREX 400-IIIS

Technical data
Number of axis total 6
Number of spindles 2
Number of milling heads 1
Distance between centres 1500 mm
Swing diameter 760 mm
Maximum turning length 1524 mm
Max. turning diameter 760 mm
Max. bar diameter 102 / 77 mm
Tool magazine number of tool places 40
Tool diameter max. 90 mm
Diameter with free adjacent pockets 125 mm
Tool lenght 400 mm
Main spindle:
Spindle nose A2-8
Internal spindle diameter 112 mm
C axis (spindle, resolution) 0.001 °
Spindle speeds:
stepless
from 35 rpm
up to 3300 rpm
Spindle power 30 kW
Torque max. 1200 Nm
Back spindle:
Spindle nose A2-8
Spindle hole 88 mm
max. speed 35 - 4000 rpm
C axis (spindle, resolution) 0.001 °
Power of back spindle 26 / 22 kW
Torque max. 500 Nm
Milling spindle:
Milling spindle receptacle CAPTO C6
Milling cutter speeds 15 - 12000 rpm
Spindle torque 120 Nm
Drive milling spindle 18.5 kW
B axis swiveling range -30 / +195 °
B axis resolution max. 0.0001 °
Travels:
X axis 630 mm
Y axis + / - 115 mm
Z axis 1585 mm
Feeds 0 - 8000 mm/min
Rapid traverse X 38 m/min
Rapid traverse Z 38 m/min
Rapid traverse Y 26 m/min
Time under power 35000 Hour
Machine's weight about 13300 kg
Required floor space 5110 x 2196 mm
Overall dimensions machine:
Height 2798 mm
Various accessories:

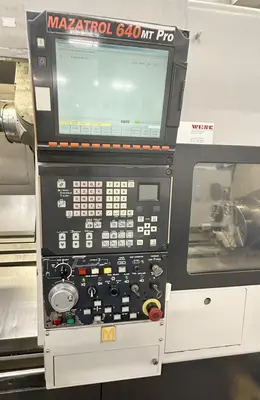

Mazatrol PC Fusion CNC 640MT Pro
Linear scale system for X-axis

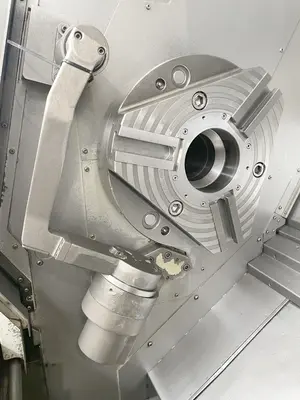

3-jaw chuck diameter Forkhardt 400 mm
3-jaw chuck diameter (back spindle) Forkhardt 315 mm
Hydraulic chuck
Lamp
Spindle blow out (backspindle)
Air blast through milling spindle
Coolant system 444 l
Coolant through the milling head 15 bar
Main and back spindle synchronization
Interface serial port RS 232
Interface PCMCIA card
Synchronized tapping
Chip conveyor
Foot pedal

Technical specifications without guarantee.
