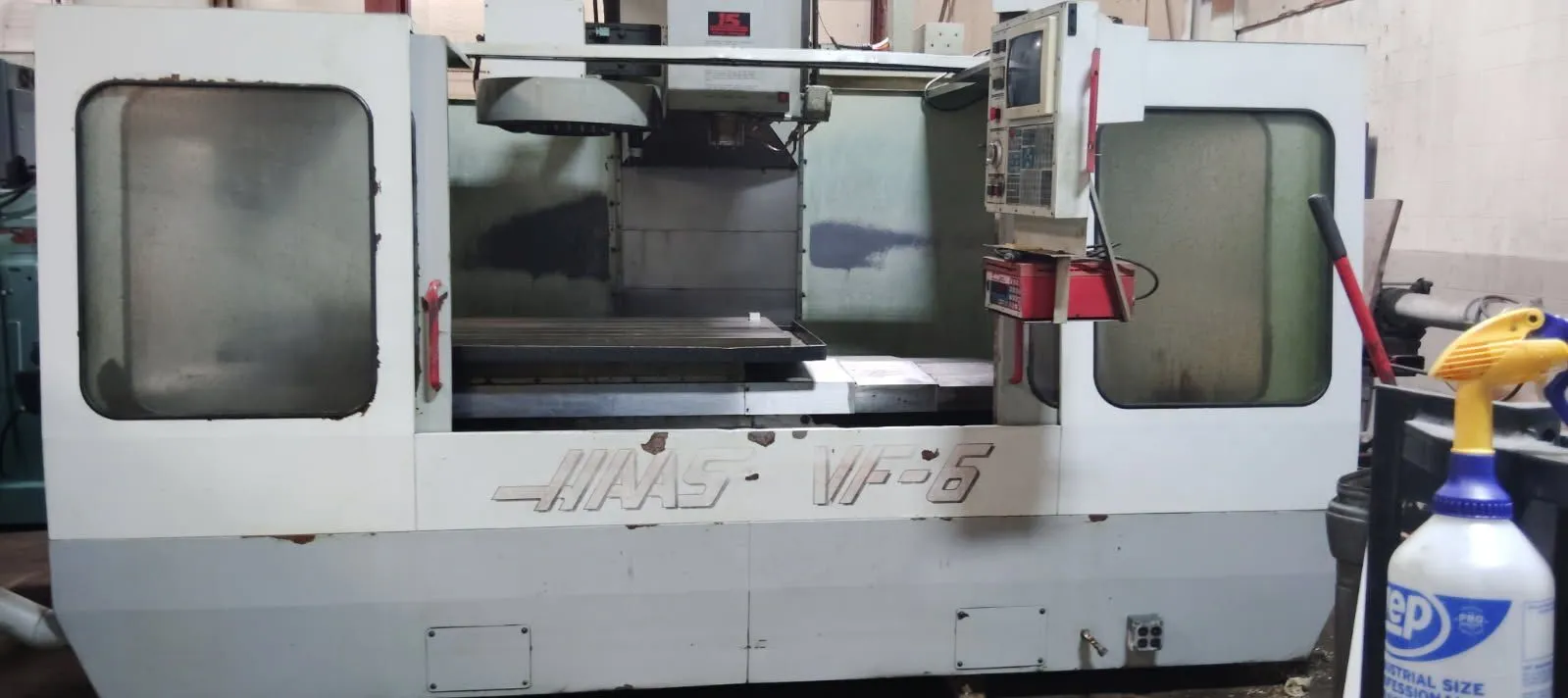

USED 1995 HAAS VF-6

Haas VF6 Vertical Machining Center 1995

• S/N 6326
• Haas CNC Control
• 7500 RPM Spindle
• 15 HP High Torque Spindle
• 20 Station Automatic Tool Changer
• 4th Axis Ready including drive
•
• Rigid Tapping
• Spindle Orientation
• Programmable Coolant
• Telescopic Way Covers
• Coolant System
TRAVELS:
1. X-Axis: 64″
2. Y-Axis: 32″
3. Z-Axis: 30″
4. Rapid Traverse Rates: 600 Inch Per Minute
5. Cutting Feed Rates: 500 Inch Per Minute
6. Spindle Nose to Table (Min.- Max.): 5″ – 35″
TABLE:
• Length: 64″
• Width: 28″
• Number of Std T-Slots: 5
• T-Slot Width: 5/8″
• Max Weight on Table: 4000 lbs
TABLE:
• Length: 64″
• Width: 28″
• Number of Std T-Slots: 5
• T-Slot Width: 5/8″
• Max Weight on Table: 4000 lbs
SPINDLE:
• Taper Size: CAT-40
• Speed Range: 7500 RPM
• Spindle Power: 15 HP
• Vector Drive Max Torque: 90ft-lb @ 2000 RPM
AUTOMATIC TOOL CHANGER:
• Capacity: 20 Station Umbrella Type
• Max Tool Weight: 12 lbs
• Max Tool Diameter (Full): 2.5″
• Max Tool Diameter (adjacent empty): 5″
• Max Tool Length: 16″
• Tool Changing Time: 4.2 Seconds
GENERAL:
• Air Required: 100 psi 4 scfm
• Power: 220v / 66FLA / 3-Phase
• Overall Dimensions: 158″ x 98″ x 118″ High
• Weight: 22000 lbs
