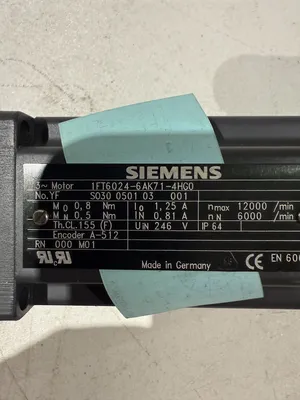

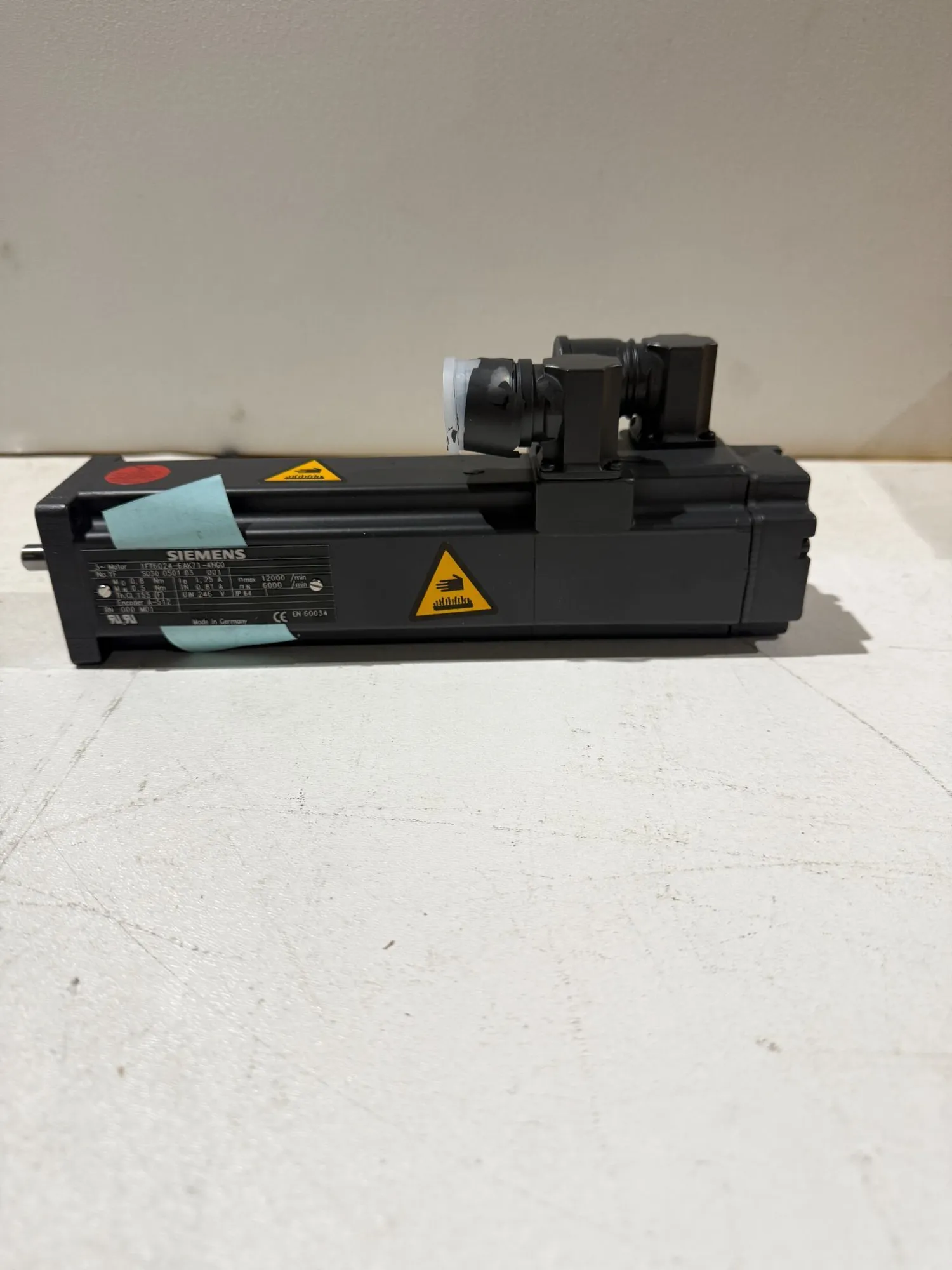

NEW SIEMENS 1FT6024-6AK71-4HG0
Overview
Description
This listing is for a NEW Siemens 1FT6024‑6AK71‑4HG0 AC servo motor. The motor is part of the Siemens 1FT6 series of permanent‑magnet synchronous servo motors designed for high‑precision motion control applications. It is intended for use with Siemens SIMODRIVE and SINAMICS drive systems and is commonly installed in CNC machines, automation equipment, and servo‑driven positioning systems. The motor includes an integrated encoder and built‑in thermal protection for industrial duty operation.
Specifications
| Dimensions | 10x4x4 | 10x4x4 |
|---|---|---|
| Weight | 5lbs | 5lbs |
Manufacturer : Siemens AG
Series : 1FT6
Part Number : 1FT6024-6AK71-4HG0
Product Type : AC Servo Motor
Motor Type : Permanent Magnet Synchronous
Rated Torque (Mo) : 0.8 Nm
Rated Speed (nN) : 6000 /min
Maximum Speed (nmax) : 12000 /min
Rated Current (IN) : 0.81 A
Rated Voltage (UN) : 246 V
Encoder : A-512
Thermal Protection : PTC Thermistor
Insulation Class : 155 (F)
Protection Rating : IP64
Mounting : Flange mount
Shaft : Smooth output shaft
Country of Origin : Germany
Condition : NEW
Quantity : 1 servo motor
