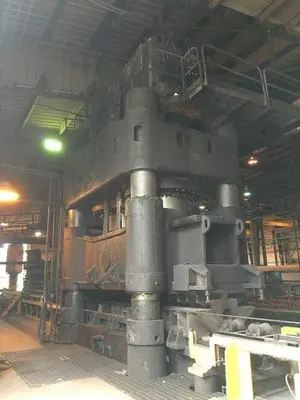

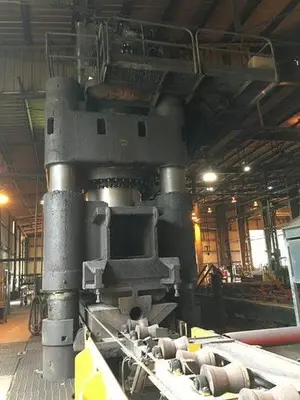

USED 2014 BLISS HS-5000
Overview
Size & Make of Pumps – Two Vickers PV-2125 & One Tuthill 6-0
Size & Make of Motor – Two West. 150 HP, One West. 5 HP 7 Four West 10/2.5 HP
Make & Type of Valves
Bliss – Air ControlHPV-13379
Bliss – Speed Change BA-04127
Bliss – Operating BA-03535
Bliss – Holding BA-03550
Bliss – 2” Check BA-00293
Bliss – Stop HPD-13834
Bliss – Prefill BA-04480
Bliss – Prefill BA-04480
Vickers – Relief CF-16-CV-10
Oil Filter – Cuno EGLF-1
Oil Cooler – Harrison HE-80
Amount & Grade of Oil – 2,000 gal 315 SSU @ 100 Degree F
Press Speeds – Inches Per Minute
Quick Advance – 200 ipm
Pressing – 12 ipm
Return – 200 ipm
Specs
Manufacturer: Bliss
Model: HS-5000
Year: 2014
Condition: Used
Stock Number: 10393
Capacity: 5,000 Ton
Distance floor to top of bed: 457 mm
Dimensions of bed f to b & r to l: 2,438 x 4,343 mm
Diameter of hole in bed: None
Thickness of bolster: 330 mm
Dimensions of bolster, f to b & r to l: 1,460 x 3,810 mm
Diameter of hole in bolster: None
Distance bed to slide - minimum: 457 mm
Distance bed to slide - maximum: 1,524 mm
Stroke - maximum: 1,067 mm
Dimensions of slide, f to b & l to r: 2,438 x 4,369 mm
Diameter of main ram: Two - 1,320 mm
Overall height of press: 8,382 mm
Projected floor space, f to b & l to r: 8,026 x 13,868 mm
Pad size: 305 x 1,220 x 2,740 mm
Approximate weight of press: 349,270 kg
