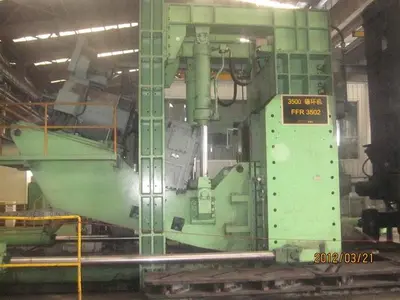

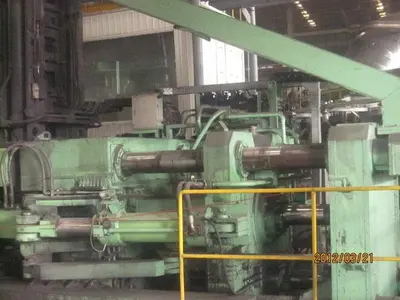

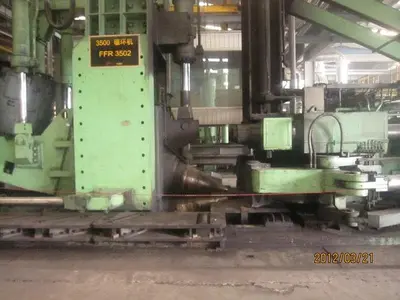

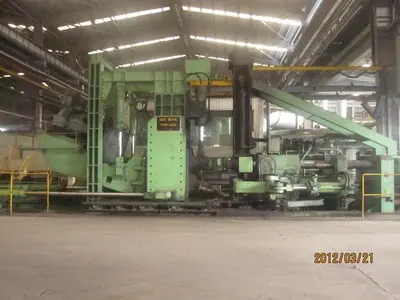

H280/V180 – 3500 Ring Rolling Machine

Model: H280/V180
Condition: Used
Stock Number: 10425
Outside diameter of finished ring: 600 - 3,500 mm
Height of finished ring blank for mandrel diameter 2,200 mm: 100 - 800 mm
Height of ring blank (min / max): 240 / 800 mm
Ratio of wall thickness to height: 3:1
Ring weight, max: 8,000 kg
Rolling force, max: 280 Ton
Main roll diameter: 1,000 mm
No. of roll revolutions of main roll, max: 29.5 rpm
Rolling speed, max: 1.5 / sec
Horizontal stroke of mandrel: 600 mm
Rolling force: 180 Ton
Length of taper rolls theoretical stand: 750 mm
Taper cone angle: 32 Degree
Horizontal stroke of vertical stand: 3,500 mm
Vertical stroke of upper taper roll: 750 mm
Maximum distance between the taper rolls: 800 mm
