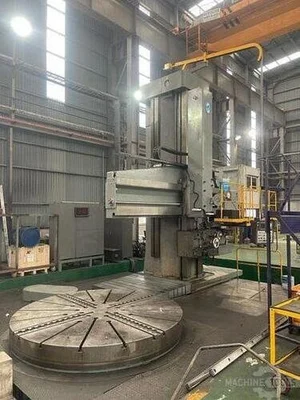

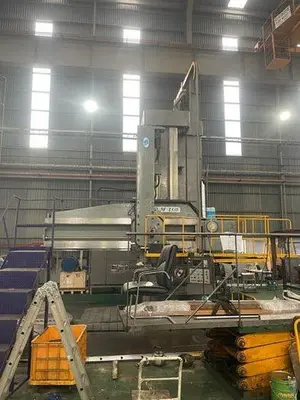

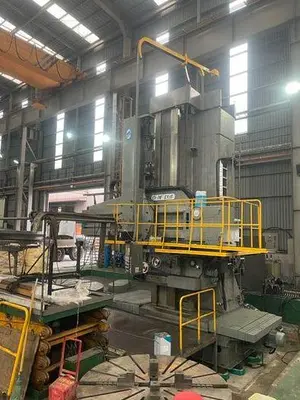

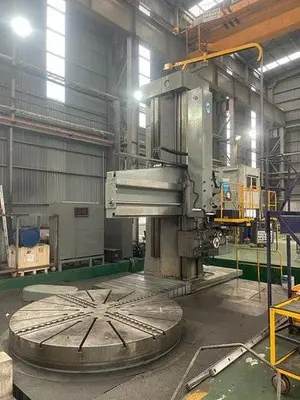

USED OM 30-70
Overview
Fanuc OI CNC Control
3,000 mm T-Slotted Table with 4 Top-Jaws
Table Turn Speed Range 0.3 - 40 rpm
Full Pendant Control
Vertical Ram
Side Head
45 kW Main Motor
Specs
Manufacturer: OM
Model: 30-70
Condition: Used
Stock Number: 10746
Retrofit: 2019
Table diameter: 3,000 mm
Swing: 7,000 mm
Turning height: 2,850 mm
Table capacity: 58.8 Ton
Column travel: 1,800 mm
Table turn speed: 40 rpm
Maximum height under cross rail: 3,155 mm
Swing to center: 5,000 mm
Z axis travel: 1,500 mm
X axis travel: 2,550 mm
W axis travel: 2,000 mm
Ram swivel: ± 30 Degrees
Side head stroke: 610 mm
Feeds, ram & side head: 15 mm/min
Maximum torque: 38,974 m/kg
Floor space: 10,160 x 7,620 mm
Maximum height in operation: 7,620 mm
Weight: 69,173 kg
