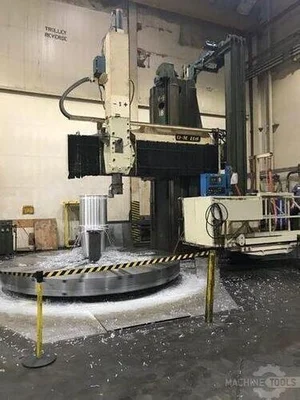

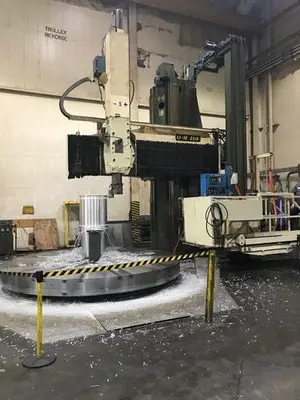

USED OM MTS 40/70

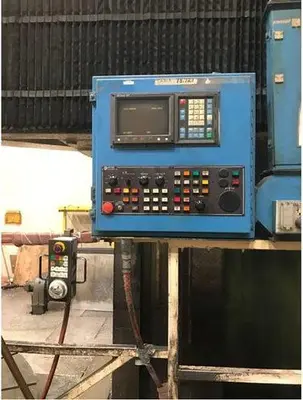

Fanuc 0T CNC Control
Fanuc Axis Drives and Motors
Travelling Column Design
100 Spindle Drive Unit

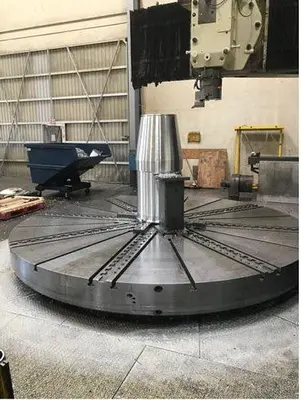

158″ T-Slotted Face Plate with 4 Top Jaws
204″ Optional Face Plate
Ball Screws
2 Range Variable Speed Spindle Spindle Motor

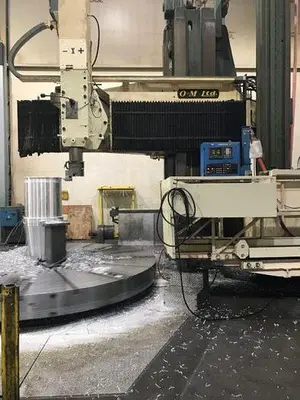

Ram Head with 5 Position Programmable Turret Head
Steel Way Covers, Coolant System

Manufacturer: OM
Model: MTS 40/70
Condition: Used
Stock Number: 10723
Table diameter: 4,000 mm
Swing: 7,000 mm
Turning height: 3,000 mm
Table capacity: 80 Ton
Table turn speed: 30 rpm
Column travel: 1,371 mm
Optional face plate: 5,182 mm
Height under rail: 3,800 mm
Z axis travel: 1,524 mm
X axis travel: 2,845 mm
W axis travel: 2,185 mm
Ram size: 230 mm
Motor power: 80 kW
Ram traverse rate: 7,620 mm/min
Rapid traverse of column: 7,747 mm/min
Machine dimensions: 6,400 x 6,324 mm
Machine height: 5,867 mm
Machine weight: 86 Ton
